BeagleBone CANBus
From BEAGLE BOARD TOYS WIKI
Contents
1 Descriptions
2 Specifications
2.1 Electrical Specifications
2.2 Mechanical Specifications
3 Signal Usage
4 EEPROM
5 Distributors
6 Product Images
7 Documentations
7.1 BeagleBone CANBus Revision A
Descriptions
The BeagleBone CANBus Cape makes use of
DCAN1 interface of the AM335x processor. The
CAN Bus interface can be accessed via a standard D-
Sub 9 female serial connector. This connector is
located to the side so it doesn't interfere with any
Capes stacked above it. The BeagleBone CANBus
Cape will support SocketCAN.
Specifications
Electrical Specifications
Power
Indicators
Connectors
3.3V via expansion header
Power LED
Two 46-position connectors
One 10-position connector
Mechanical Specifications
5/23/2012
BeagleBone CANBus - BEAGLE BOARD TOYS
Page 2 of 3
Size
Layers
PCB Thickness
3.40" x 2.45"
4
.062"
RoHS Compliant Yes
Signal Usage
Pin Usage is coming soon.
EEPROM
EEPROM Suport Yes
Board Name
Version
Manufacturer
Part Number
Pins Used
BeagleBone CANBus Cape
00A0
BeagleBoardToys
BB-BONE-SERL-01
TBD
Distributors
Distributor list will be posted soon.
Product Images

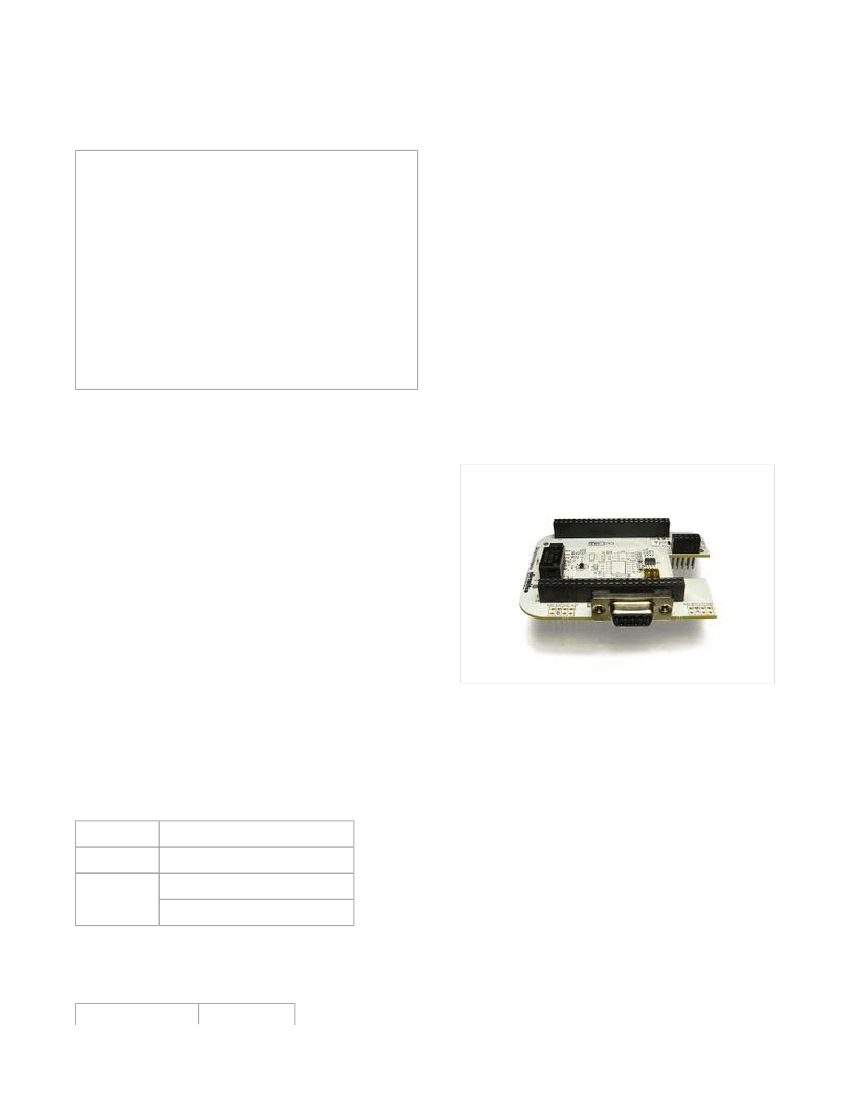

BeagleBone CANBus
5/23/2012
BeagleBone CANBus - BEAGLE BOARD TOYS
Page 3 of 3
Note: These photos are from the alpha build. Production build photos will be updated soon.
Documentations
BeagleBone CANBus Revision A
Documentations coming soon.
