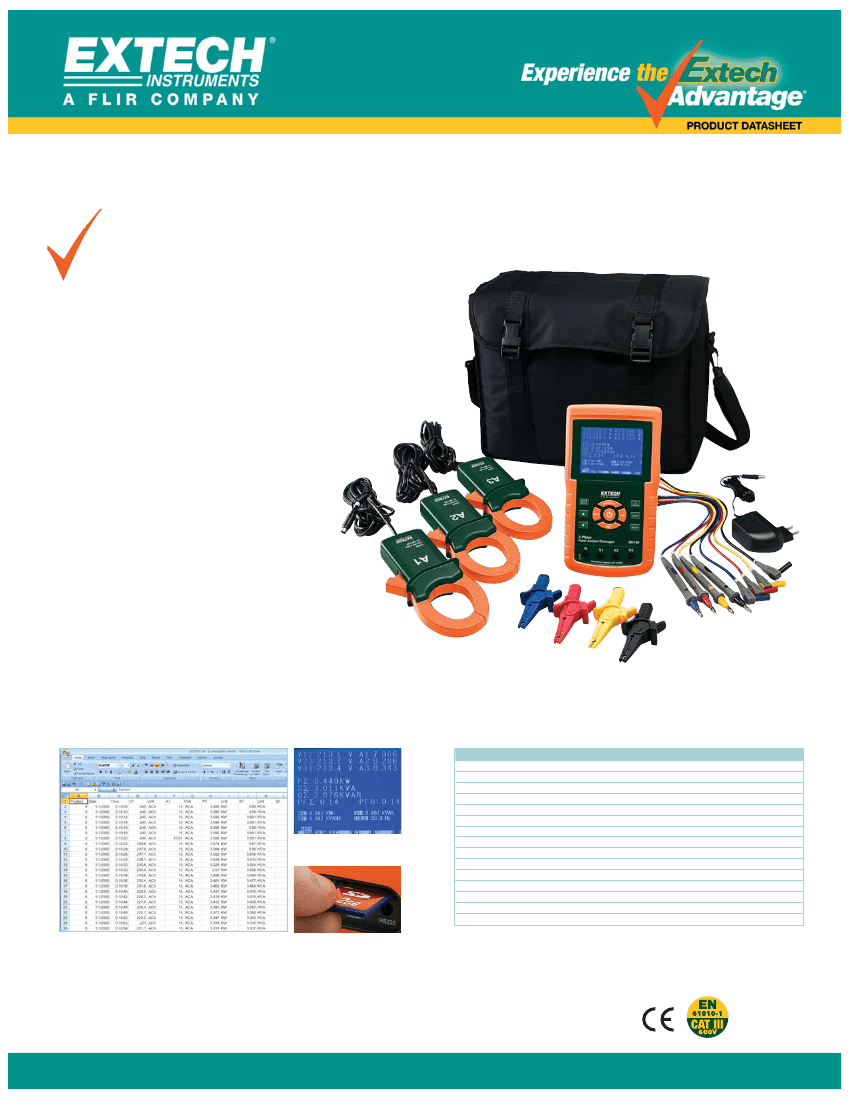

1200A 3-Phase Power Analyzer/Datalogger
Saves data on an SD card in Excel® format
For easy transfer to a PC for analysis
Features:
•
Large dot-matrix, sun-readable, numerical, backlit LCD
•
Full system analysis with up to 35 parameters
-
-
-
-
-
-
V (phase-to-phase), V (phase-to-ground)
A (phase-to-ground)
KW / KVA / KVAR / PF (phase)
KW / KVA / KVAR / PF (system)
KWH / KVAH / KVARH / PFH (system)
Phase angle
•
High accuracy autoranging current clamps
(0.2A to 1200A)
•
600.0VAC input with CAT III-600V safety rating
•
Adjustable Current Transformer (CT) and
Potential Transformer (PT) ratio for high
power distribution systems
•
Log up to 30,000 reading on a removable SD memory
card in Microsoft Excel® format
•
Wide sampling rate range (2 seconds to 2 hours)
•
Captured measurements can be imported
directly into Excel via the SD memory card
•
Easy-to-use onscreen menu
•
Easy-to-grab rugged over molded housing
Applications:
•
AC Power Quality Evaluation
•
Motor/Generator Installation
•
Energy Audits
Complete with 3 current clamps, 4 voltage leads with alligator clips, 8 AA
batteries, SD memory card, Universal AC adaptor (100 to 240V), and case
Backlit LCD displays
numerical values
Specifications
ACV (True rms)
ACA
Active Power (MW)
Apparent Power (MVA)
Reactive Power (MVAR)
Power Factor
Frequency Range
Phase
Active Power Energy (MWh)
Apparent Power Energy (MVAh)
Reactive Power Energy (MVARh)
Datalogging
CE/CAT rating
Range
600.0V
1200A
9.999MW
9.999MVA
9.999MVAR
0.00 to 1.00
45Hz to 65Hz
-180° to +180.0°
0.0kWh to 9.999MWHr
0.0KVAh to 9.999MVAh
0.0kVARh to 9.999MVARh
60,000 readings (2GB SD memory Card)
CE/CAT III-600V
Basic Accuracy
±(0.5%rdg+0.5V)
±(0.5%rdg+0.5A)
±(1.0%rdg+0.08KW)
±(1.0%rdg+0.08KVA)
±(1.0%rdg+0.08KVAR)
±0.04
±0.1Hz
±1°
±(2.0%rdg+0.08KWh)
±(2.0%rdg+0.08KVAh)
±(2.0%rdg+0.08KVARh)
Dimensions
Weight
8.9 x 2.5 x 1.3" (225 x 125 x 64mm)
Meter: 2.3lbs (1049g); Clamp: 1.2lbs (522g)
Transfer data from meter to PC using Excel
®
software and
datalogged readings from the SD memory card (included)
SD memory card included
Ordering Information:
382100................1200A
3-Phase Power Analyzer/Datalogger
382000................Voltage
Test Leads with Alligator Clips (4 leads)
www.extech.com
Specifications subject to change without notice.
9/23/09 - R1
Copyright © 2009 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
