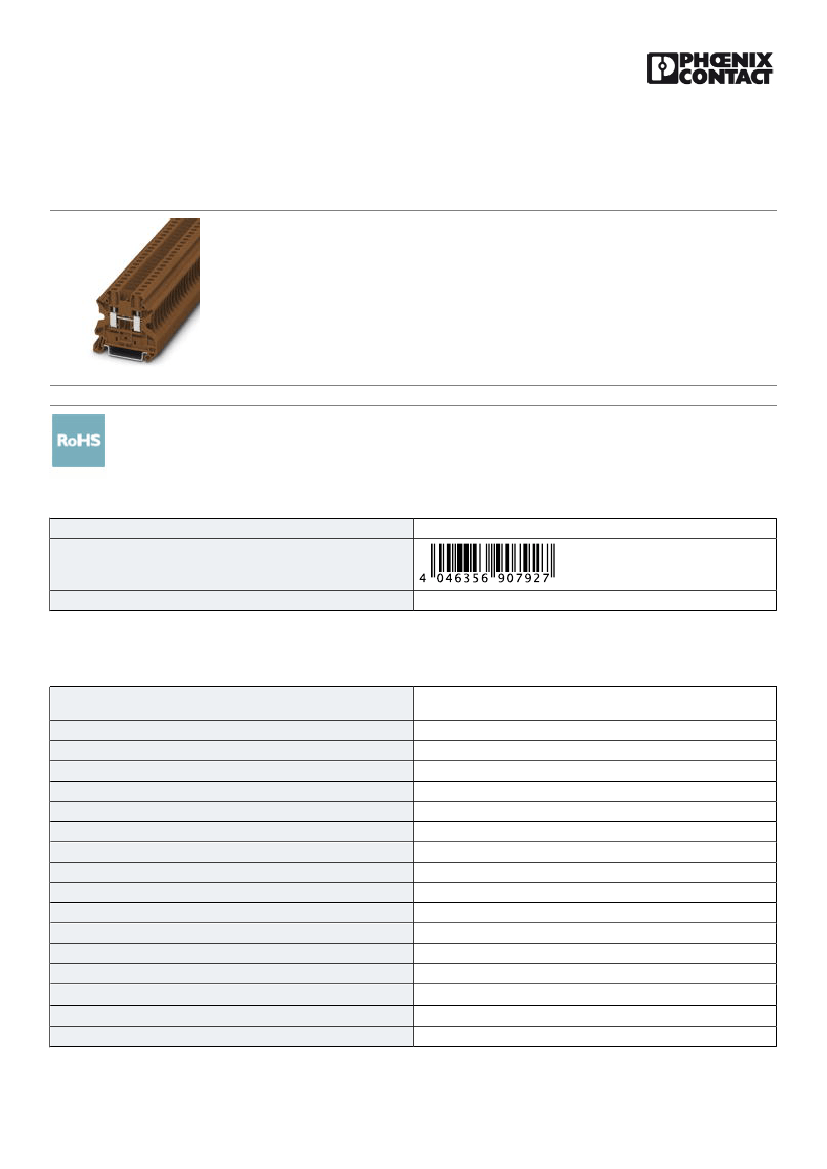

Feed-through terminal block - UT 4-CB BN - 3044611
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, With breakout partition plate in the bridge shaft, nom. voltage: 1000 V, nominal
current: 32 A, connection method: Screw connection, number of connections: 2, number of positions: 1, cross
section:0.14 mm² - 6 mm², AWG: 26 - 10, width: 6.2 mm, color: brown, mounting type: NS 35/7,5, NS 35/15
Key Commercial Data
Packing unit
GTIN
GTIN
4046356907927
50 pc
Technical data
General
Note
Number of positions
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Note. In order to use bridges, the panel on the bridge shaft must be
removed.
1
1
2
4 mm²
brown
PA
V0
8 kV
3
III
I
1.02 W
41 A (with 6 mm² conductor cross section)
32 A (with 4 mm² conductor cross section)
1000 V
Yes
11/12/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3044611
Feed-through terminal block - UT 4-CB BN - 3044611
Technical data
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
2.2 mm
47.7 mm
47.5 mm
55 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Screw connection
IEC 60947-7-1
0.14 mm²
6 mm²
26
10
0.14 mm²
6 mm²
26
10
0.14 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.5 mm²
2.5 mm²
0.14 mm²
1.5 mm²
9 mm
A4
M3
0.6 Nm
0.8 Nm
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
11/12/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/3044611
Feed-through terminal block - UT 4-CB BN - 3044611
Technical data
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
Approval details
EAC
EAC-Zulassung
EAC
RU C-
DE.A*30.B.01742
