31330106: DescriptionSHROUDED HEADER, RIGHT ANGLE, PC; CategoryThe connector; File Size335KB，5 Pages; ManufacturerMETZ CONNECT USA Inc.; Environmental Compliance

Download Datasheet Parametric Compare View All

31330106 Overview

SHROUDED HEADER, RIGHT ANGLE, PC

Parameter Name	Attribute value
type	Connector, male pins, shrouded (4 sides)
Number of pins	6
Number of pins per level	6
Number of levels	1
spacing	0.197"（5.00mm）
Needle seat direction	90°, right angle
Plug entrance	-
Terminal type	welding
Installation type	Through hole
Current - IEC	-
Current - UL	15A
Voltage - UL	300V
Wire Gauge or Range - AWG	-
Wire gauge or range - mm²	-
color	black
Operating temperature	-40°C ~ 105°C
Contact mating surface treatment	gold, nickel alloy
characteristic	-
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	-
Contact material	copper iron
Shell material	Polyamide (PA66), Nylon 6/6
Contact tail length	0.136"（3.45mm）
Insulation height	0.307"（7.80mm）

Data Sheet

PT115xxHBBN

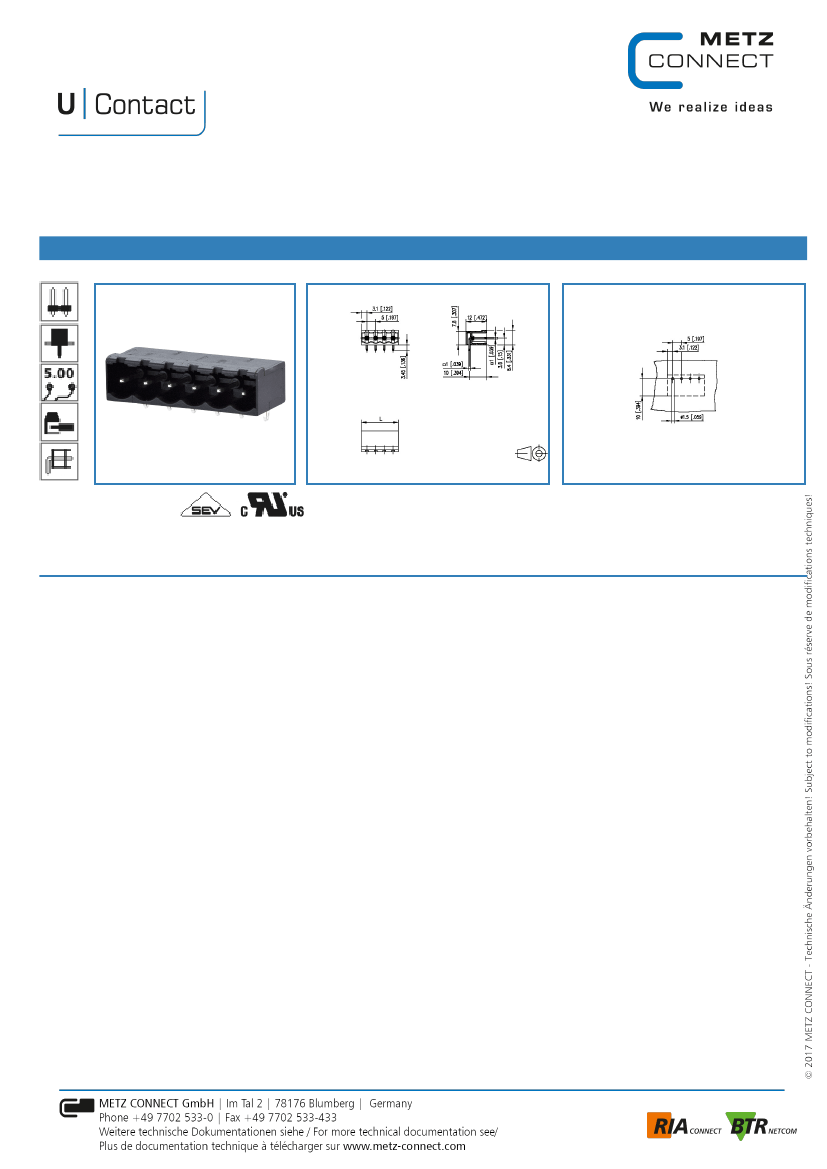

Illustration

Page 1/5

P/N

313301xx

xx=number of poles

2017/05/05

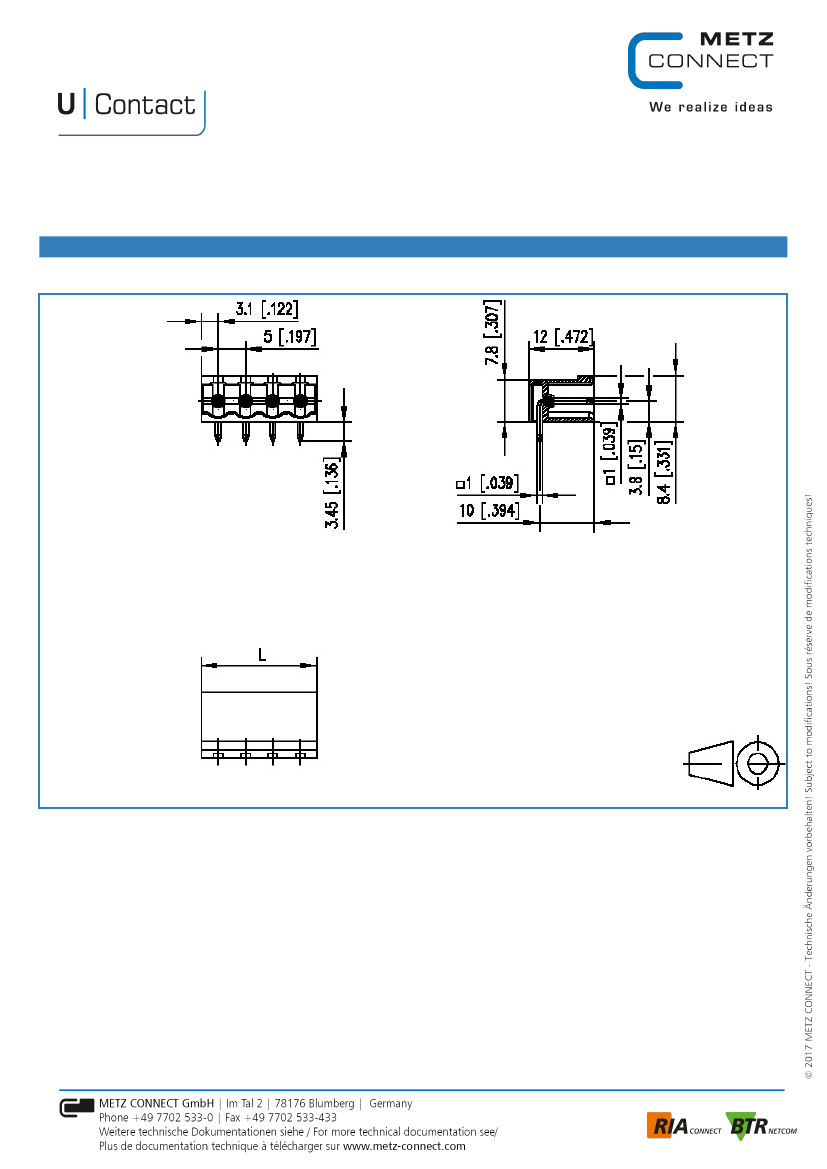

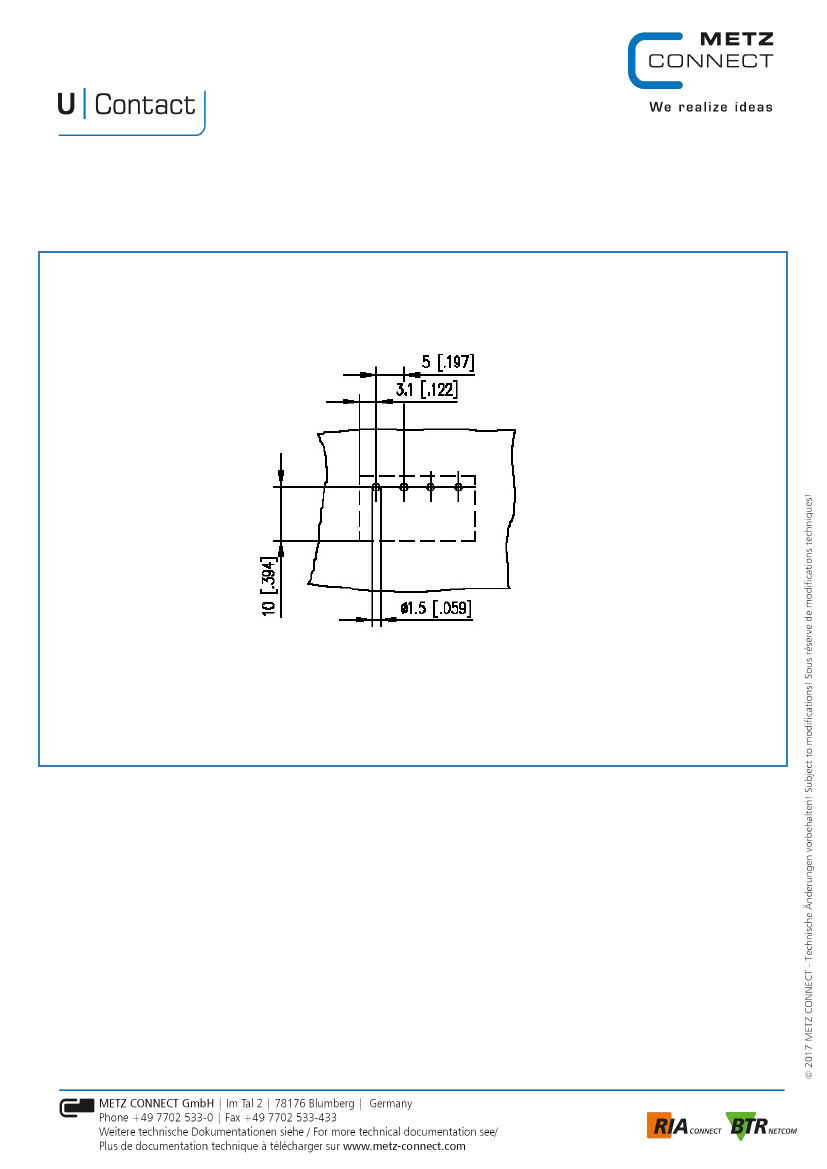

see enlarged drawing at the end of the document

Product specification

• pin header, solderable

• centerline 5.00 mm, direction of connection 90°

• closed ends

• color black

• codeable

	31330106	31330102	31330103	31330104
Description	SHROUDED HEADER, RIGHT ANGLE, PC	SHROUDED HEADER, RIGHT ANGLE, PC	SHROUDED HEADER, RIGHT ANGLE, PC	SHROUDED HEADER, RIGHT ANGLE, PC
type	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)	Connector, male pins, shrouded (4 sides)
Number of pins	6	2	3	4
Number of pins per level	6	2	3	4
Number of levels	1	1	1	1
spacing	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）	0.197"（5.00mm）
Needle seat direction	90°, right angle	90°, right angle	90°, right angle	90°, right angle
Terminal type	welding	welding	welding	welding
Installation type	Through hole	Through hole	Through hole	Through hole
Current - UL	15A	15A	15A	15A
Voltage - UL	300V	300V	300V	300V
color	black	black	black	black
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Contact mating surface treatment	gold, nickel alloy	silver	silver	silver
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact material	copper iron	copper alloy	copper alloy	copper alloy
Shell material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Contact tail length	0.136"（3.45mm）	0.136"（3.45mm）	0.136"（3.45mm）	0.136"（3.45mm）
Insulation height	0.307"（7.80mm）	0.331"（8.40mm）	0.331"（8.40mm）	0.331"（8.40mm）
