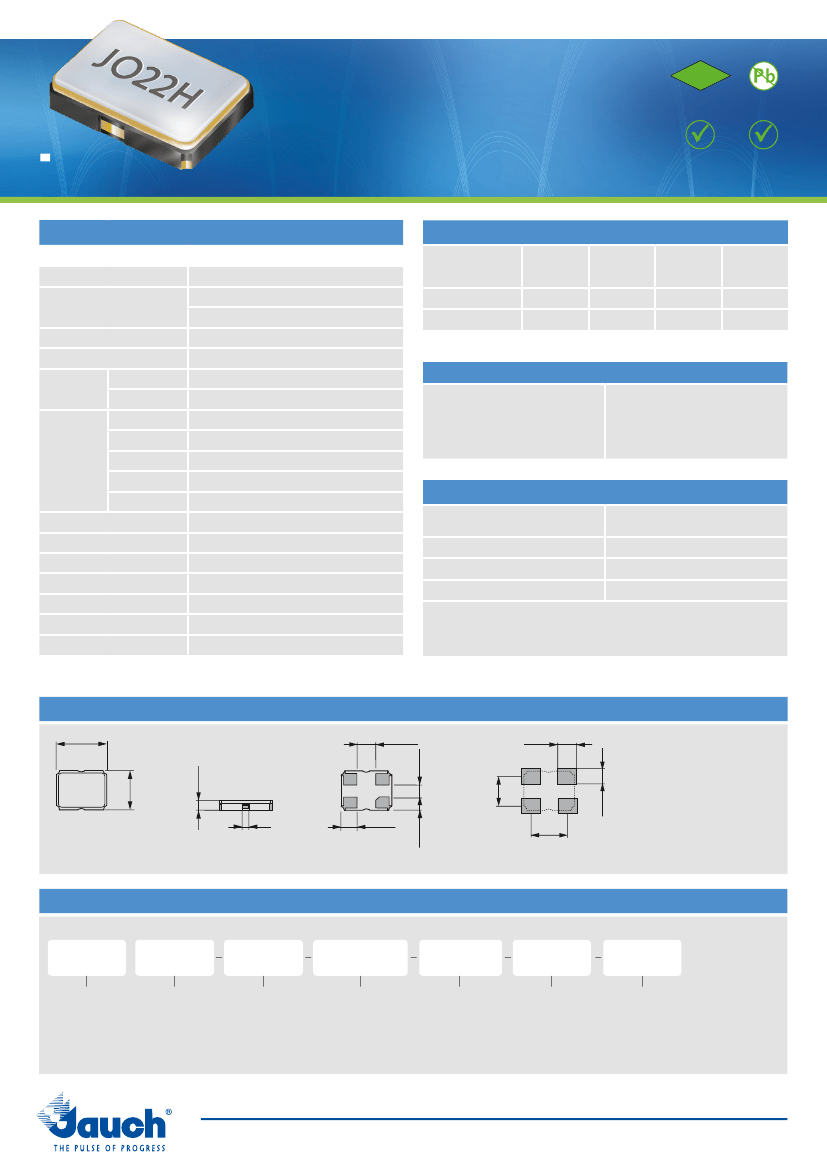

Oscillator JO22H · 2.5 V
- High Stability Oscillator with Stop Function • 2.5 x 2.0 mm
- Stability suitable for wireless application (Bluetooth, WiFi etc.)
- LVCMOS / HCMOS compatible output
- Low phase jitter, no PLL
- Flat seam sealed ceramic/metal package
2011/65/EC
RoHS
RoHS compliant
Pb free
actual size
REACH
compliant
Conflict
mineral free
GENERAL DATA
TYPE
frequency range
frequency stability
over all*
current consumption
supply voltage V
DC
temperature
output
operating
storage
rise & fall time
load max.
current max.
low level max.
high level min.
output enable time max.
output disable time max.
start-up time max.
standby function
standby current max.
phase jitter 12 kHz ~20 MHz
symmetry at 0.5 x V
DC
JO22H 2.5 V
4.0 ~ 54.0 MHz (15 pF max.)
± 10ppm ~ ± 20ppm
see table 1
6 mA max.
2.5 V ± 5%
-20 °C ~ +70 °C / -40 °C ~ +85 °C
-40 °C ~ +85 °C
5 nsec max.
15 pF
4.0 mA
0.1 V x V
DC
0.9 V x V
DC
10 ms
250 ns
10 ms
stop
10 µA
< 3.0 ps RMS typ.
45% ~ 55% max.
TABLE 1: FREQUENCY STABILITY CODE
stability code
-20 °C ~ +70 °C
-40 °C ~ +85 °C
available
D
± 20 ppm
E
±15 ppm
F
± 10 ppm
TABLE 2: RISE & FALL TIME MAX.
5 ns:
4.0 ~ 54.0 MHz
note:
- specific data on request
- rise time: 0.1 V
DC
~ 0.9 V
DC
- fall time: 0.9 V
DC
~ 0.1 V
DC
ENABLE / DISABLE FUNCTION
pin #1 (e/d control)
open
high "1" (V
IH
≥ 0.7 V
DC
)
low "0" (V
IL
≤ 0.3 V
DC
)
stop function:
• oscillator stops
• output high impedance
pin #3 (output)
active
active
high impedance
* includes stability at 25 °C, operating temp. range, supply voltage change,
shock and vibration, aging 1st year.
DIMENSIONS
2.5
±0.1
0.9
±0.1
#4
#3
2.0
±0.1
#3
0.95
±0.05
#4
0.65
±0.05
0.90
±0.1
0.4
0.68
±0.05
#1
#2
#2
0.78
#1
±0.05
1.85
±0.1
# 1: e/d
# 2: ground
# 3: output
# 4: V
DC
1.45
±0.1
top view
ORDER INFORMATION
side view
bottom view
pad layout
0.80
±0.1
pin connection
in mm
O
Oscillator
frequency
4.0 ~ 54.0 MHz
type
JO22H
frequency stability
code
see table 1
supply voltage
code
2.5 = 2.5 V
output load
code
1 = 15 pF
option
blank = -20 °C ~ +70 °C
T1 = -40 °C ~ +85 °C
Example: O 20.0-JO22H-F-2.5-1-T1
(Suffix LF = RoHS compliant / Pb free)
08052018
Jauch Quartz GmbH • e-mail: info@jauch.com • full data can be found under: www.jauch.com
All specifications are subject to change without notice
Oscillator JO22H · 2.5 V · Low Power

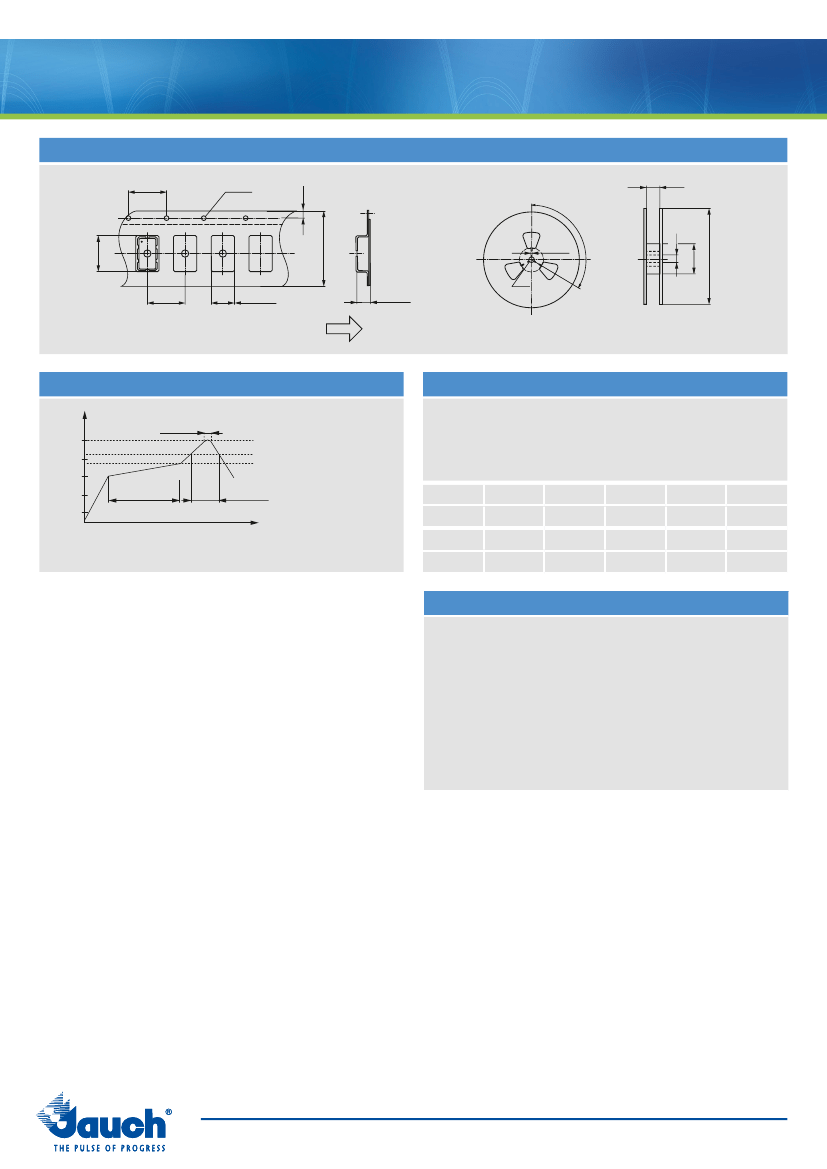

TAPING SPECIFICATION
4.0
ø 1.55
9.0
120°
ø 13
60
2.7
±0.05
1.75
8.0
4.0
2.25
±0.05
Feeding
1.15
±0.05
ø13
±0.5
500 pcs per reel, 1000 pcs per reel on request
ø 180
2.0
±0.1
in mm
MARKING
REFLOW SOLDERING PROFILE
temperature (°C)
10 s max.
260
200
150
100
50
60 ~ 180 s
60 s max.
260 °C max.
220 5 °C
180 5 °C
frequency
company stability code / data code
data code: A ~ M: Jan. - Dec.
7: 2017
8: 2018
9: 2019
Jan.
A
Febr.
B
Aug.
H
Mar.
C
Sept.
J
0: 2020
Apr.
D
Oct.
K
1: 2021
May
E
Nov.
L
2: 2022
June
F
Dec.
M
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
July
G
PACKAGING NOTE
– standard packing unit is 500 pieces per reel
– non-multiple packing units are only supplied taped / bulk
08052018
Jauch Quartz GmbH • e-mail: info@jauch.com • full data can bedata can be found under:
info@jauch.de
full found under: www.jauch.com
All specifications are subject to change without notice
www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
