380-10-103-00-002000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 380-10-103-00-002000

380-10-103-00-002000: DescriptionLOW PROFILE SOLDER CUP HEADER; .; CategoryThe connector The connector; File Size562KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

380-10-103-00-002000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380-10-103-00-002000	-	-	View	Buy Now

380-10-103-00-002000 Overview

LOW PROFILE SOLDER CUP HEADER; .

380-10-103-00-002000 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Samacsys Confidence	3
Samacsys Status	Released
Samacsys PartID	1078365
Samacsys Pin Count	3
Samacsys Part Category	Connector
Samacsys Package Category	Header, Vertical
Samacsys Footprint Name	380-10-103-00-002000--
Samacsys Released Date	2020-03-26 10:59:30
Is Samacsys	N
Connector type	BOARD CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

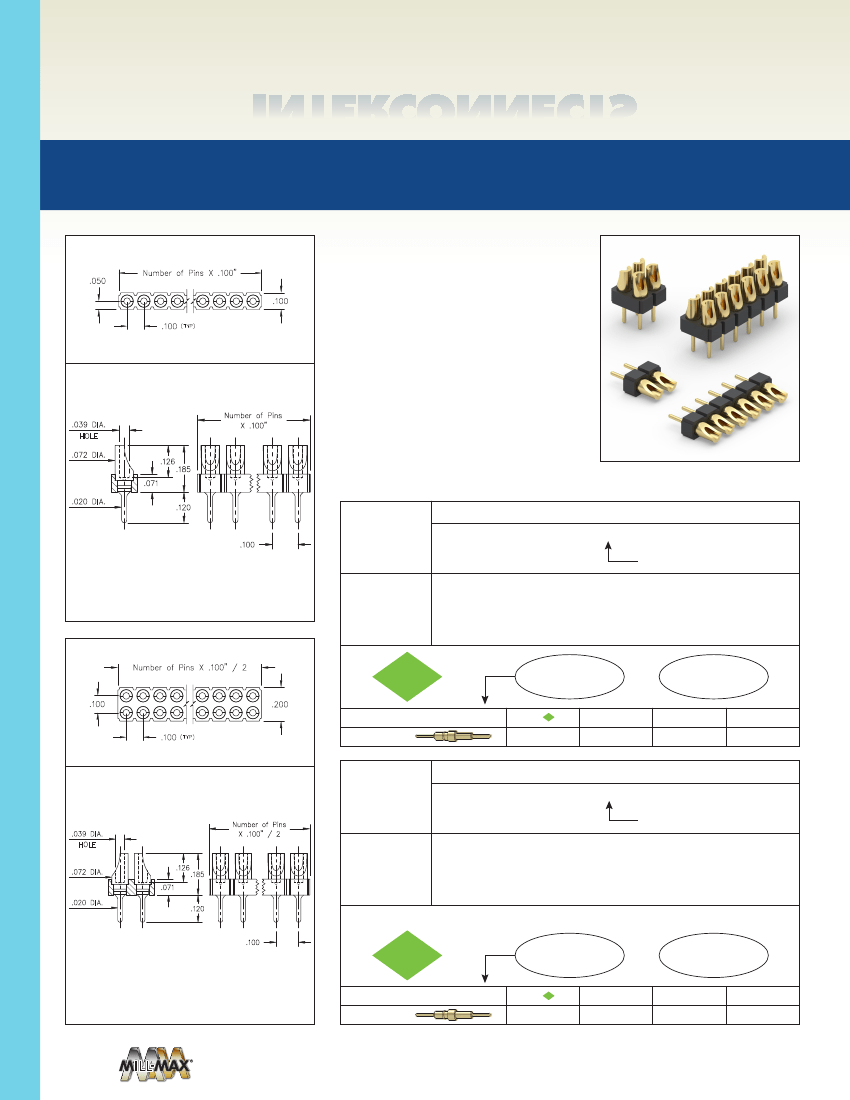

SERIES 380 & 480 • .100” GRID LOW PROFILE SOLDER CUP HEADERS

SINGLE AND DOUBLE ROW STRIPS

•

Series 380 & 480 solder cup headers for low

profile wire termination applications

.050

Number of Pins X .100"

.100

•

.020” diameter pins are suitable for mating

with standard sockets or for through-hole

soldering to the P.C.B.

•

Solder cups are uniformly aligned to facilitate

efficient soldering

•

Accepts up to 22 AWG Stranded wire

.039 DIA.

HOLE

.072 DIA.

.126

.071

.020 DIA.

.120

Number of Pins

X .100"

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

.185

ORDERING INFORMATION

Series 380...002

.100

Single Row Solder Cup Header

380-10-0_ _-00-002000

01-64

FIG. 1

Specify number of pins

FIG. 1

Number of Pins X .100" / 2

2011/65/EU

.100

.200

RoHS - 2

XX=Plating Code

See Below

μ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

.100

Pin Plating

Series 480...002

Double Row Solder Cup Header

480-XX-0_ _-00-002000

02-72

FIG. 2

.039 DIA.

HOLE

Number of Pins

X .100" / 2

Specify number of pins

PAGE 47.1 | INTERCONNECTS

.072 DIA.

.071

.020 DIA.

.126

.185

.120

.100

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

μ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
