O 38,40-JO22H-F-3,3-1-T1-LF datasheet, PDF

Datasheet> All Categories > Passive components> O 38,40-JO22H-F-3,3-1-T1-LF

O 38,40-JO22H-F-3,3-1-T1-LF: DescriptionOSC XO 38.4000MHZ HCMOS SMD; CategoryPassive components; File Size460KB，2 Pages; ManufacturerJauch; Websitehttp://www.jauchusa.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

O 38,40-JO22H-F-3,3-1-T1-LF Overview

OSC XO 38.4000MHZ HCMOS SMD

O 38,40-JO22H-F-3,3-1-T1-LF Parametric

Parameter Name	Attribute value
type	XO (Standard)
frequency	38.4MHz
Function	Standby (power off)
output	HCMOS
Voltage - Power	3.3V
frequency stability	±10ppm
Absolute pulling range (APR)	-
Operating temperature	-40°C ~ 85°C
Current - Power (maximum)	7mA
grade	-
Installation type	surface mount
Package/casing	4-SMD, no leads
size/dimensions	0.098" long x 0.079" wide (2.50mm x 2.00mm)
Height - Installation (maximum)	0.039"（1.00mm）
Current - Power (disabled) (maximum)	10µA

Preview

Download Datasheet

View All

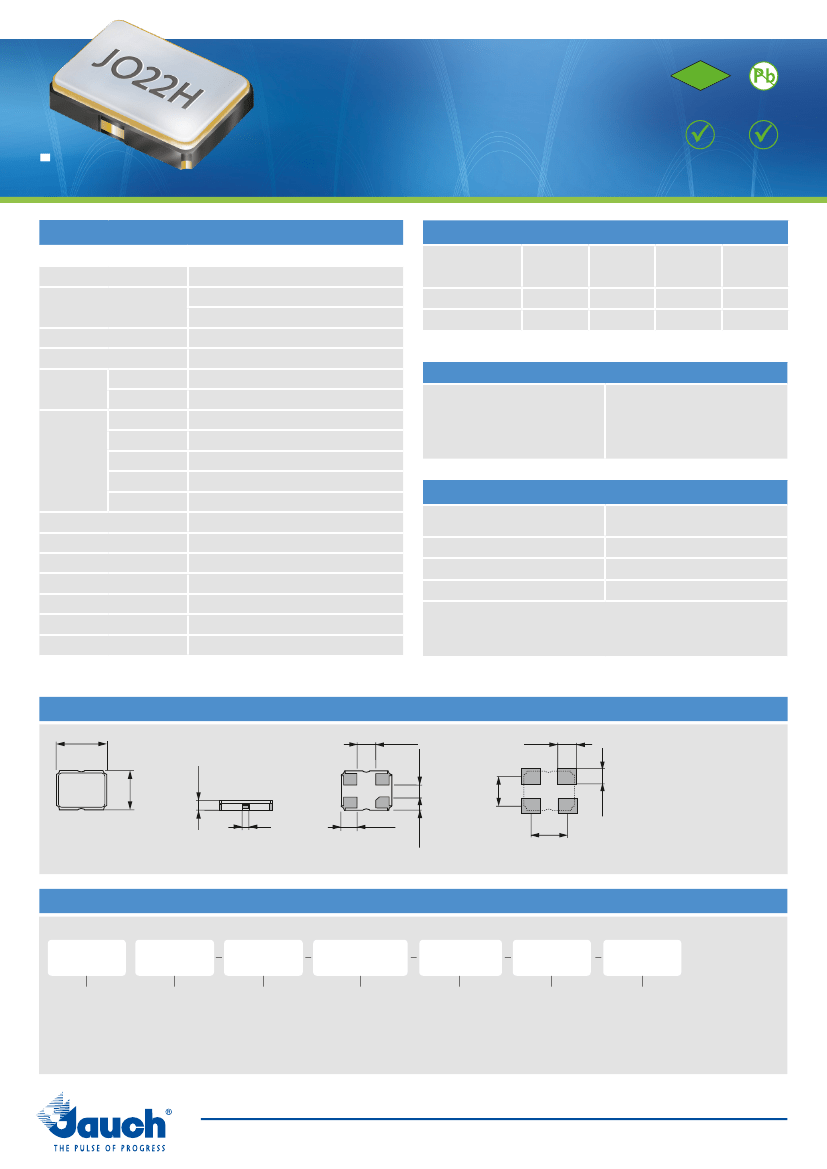

Oscillator JO22H · 3.3 V

- High Stability Oscillator with Stop Function • 2.5 x 2.0 mm

- Stability suitable for wireless application (Bluetooth, WiFi etc.)

- LVCMOS / HCMOS compatible output

- Low phase jitter, no PLL

- Flat seam sealed ceramic/metal package

2011/65/EC

RoHS

RoHS compliant

Pb free

actual size

REACH

compliant

Conflict

mineral free

GENERAL DATA

TYPE

frequency range

frequency stability

over all*

current consumption

supply voltage V

temperature

output

operating

storage

rise & fall time

load max.

current max.

low level max.

high level min.

output enable time max.

output disable time max.

start-up time max.

standby function

standby current max.

phase jitter 12 kHz ~20 MHz

symmetry at 0.5 x V

JO22H 3.3 V

4.0 ~ 54.0 MHz (15 pF max.)

± 10ppm ~ ± 20ppm

see table 1

7 mA max.

3.3 V ± 5%

-20 °C ~ +70 °C / -40 °C ~ +85 °C

-40 °C ~ +85 °C

5 nsec max.

15 pF

4.0 mA

0.1 V x V

0.9 V x V

10 ms

250 ns

10 ms

stop

10 µA

< 3.0 ps RMS typ.

45% ~ 55% max.

TABLE 1: FREQUENCY STABILITY CODE

stability code

-20 °C ~ +70 °C

-40 °C ~ +85 °C



available

± 20 ppm



±15 ppm



± 10 ppm



TABLE 2: RISE & FALL TIME MAX.

5 ns:

4.0 ~ 54.0 MHz

note:

- specific data on request

- rise time: 0.1 V

~ 0.9 V

- fall time: 0.9 V

~ 0.1 V

ENABLE / DISABLE FUNCTION

pin #1 (e/d control)

open

high "1" (V

≥ 0.7 V

)

low "0" (V

≤ 0.3 V

)

stop function:

• oscillator stops

• output high impedance

pin #3 (output)

active

high impedance

* includes stability at 25 °C, operating temp. range, supply voltage change,

shock and vibration, aging 1st year.

DIMENSIONS

2.5

±0.1

0.9

±0.1

2.0

±0.1

0.95

±0.05

0.65

±0.05

0.90

±0.1

0.4

0.68

±0.05

0.78

±0.05

1.85

±0.1

# 1: e/d

# 2: ground

# 3: output

# 4: V

1.45

±0.1

top view

ORDER INFORMATION

side view

bottom view

pad layout

0.80

±0.1

pin connection

in mm

Oscillator

frequency

4.0 ~ 54.0 MHz

type

JO22H

frequency stability

code

see table 1

supply voltage

code

3.3 = 3.3 V

output load

code

1 = 15 pF

option

blank = -20 °C ~ +70 °C

T1 = -40 °C ~ +85 °C

Example: O 20.0-JO22H-F-3.3-1-T1

(Suffix LF = RoHS compliant / Pb free)

08052018

Jauch Quartz GmbH • e-mail: info@jauch.com • full data can be found under: www.jauch.com

All specifications are subject to change without notice

O 38,40-JO22H-F-3,3-1-T1-LF Related Products

	O 38,40-JO22H-F-3,3-1-T1-LF	O 19,20-JO22H-E-3,3-1-T1-LF	O 24,0-JO22H-E-3,3-1-T1-LF	O 26,0-JO22H-E-3,3-1-T1-LF	O 32,0-JO22H-E-3,3-1-T1-LF	O 38,40-JO22H-E-3,3-1-T1-LF	O 19,20-JO22H-F-3,3-1-T1-LF	O 24,0-JO22H-F-3,3-1-T1-LF	O 32,0-JO22H-F-3,3-1-T1-LF	O 26,0-JO22H-F-3,3-1-T1-LF
Description	OSC XO 38.4000MHZ HCMOS SMD	OSC XO 19.2000MHZ HCMOS SMD	OSC XO 24.0000MHZ HCMOS SMD	OSC XO 26.0000MHZ HCMOS SMD	OSC XO 32.0000MHZ HCMOS SMD	OSC XO 38.4000MHZ HCMOS SMD	OSC XO 19.2000MHZ HCMOS SMD	OSC XO 24.0000MHZ HCMOS SMD	OSC XO 32.0000MHZ HCMOS SMD	OSC XO 26.0000MHZ HCMOS SMD
type	XO (Standard)	XO (Standard)	XO (Standard)	XO (Standard)	XO (Standard)	XO (Standard)	XO (Standard)	XO (Standard)	XO (Standard)	XO (Standard)
frequency	38.4MHz	19.2MHz	24MHz	26MHz	32MHz	38.4MHz	19.2MHz	24MHz	32MHz	26MHz
Function	Standby (power off)	Standby (power off)	Standby (power off)	Standby (power off)	Standby (power off)	Standby (power off)	Standby (power off)	Standby (power off)	Standby (power off)	Standby (power off)
output	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS
Voltage - Power	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V	3.3V
frequency stability	±10ppm	±15ppm	±15ppm	±15ppm	±15ppm	±15ppm	±10ppm	±10ppm	±10ppm	±10ppm
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Current - Power (maximum)	7mA	7mA	7mA	7mA	7mA	7mA	7mA	7mA	7mA	7mA
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Package/casing	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads	4-SMD, no leads
size/dimensions	0.098" long x 0.079" wide (2.50mm x 2.00mm)	0.098" long x 0.079" wide (2.50mm x 2.00mm)	0.098" long x 0.079" wide (2.50mm x 2.00mm)	0.098" long x 0.079" wide (2.50mm x 2.00mm)	0.098" long x 0.079" wide (2.50mm x 2.00mm)	0.098" long x 0.079" wide (2.50mm x 2.00mm)	0.098" long x 0.079" wide (2.50mm x 2.00mm)	0.098" long x 0.079" wide (2.50mm x 2.00mm)	0.098" long x 0.079" wide (2.50mm x 2.00mm)	0.098" long x 0.079" wide (2.50mm x 2.00mm)
Height - Installation (maximum)	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）
Current - Power (disabled) (maximum)	10µA	10µA	10µA	10µA	10µA	10µA	10µA	10µA	10µA	10µA
