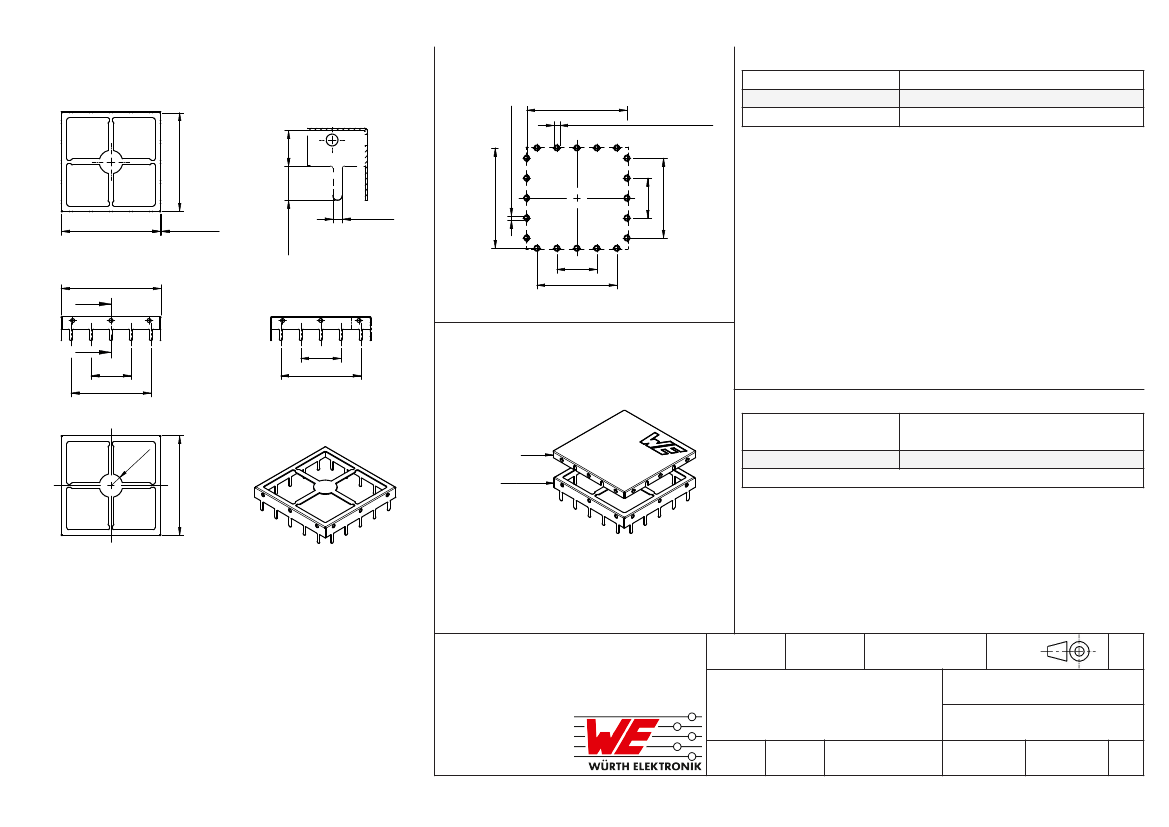

Dimensions: [mm]
detail B
25,0 ±0,1
3,0
Recommended Land Pattern: [mm]
25,5
O
1,1 drill diameter
25,5
O
1,5
Recommended P.C.B. layout
Material:
Base Material
Plating
Version
Steel
Tin
THT Frame
25,0 ±0,1
0,2 ±0,05
2,9 ±0,1
0,8 ref.
25,4 ±0,1
10,16
20,32
A
A
10,16
20,32
sectional drawing A-A
10,16
20,32
Scale - 1:1
10,16
20,32
B
Assembly with THT Frame:
General Information:
Storage Temperature (in original
packaging)
25,4 ±0,1
R
0
3,
Top Cover
Frame
-20 °C up to +60 °C
-40 °C up to +125 °C
Operating Temperature
Test conditions of Electrical Properties: +20°C, 33% RH if not specified differently
Scale - 1:1
Scale - 1:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-SHC Shielding Cabinet
ORDER CODE
36503255S
REVISION
STATUS
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.000
Valid
2017-06-21
eiSos
1/2
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
