PROPRIETARY INFORMATION:
PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR
USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY
PROHIBITED EXCEPT AS SPECIFIED IN WRITING BY GLOBTEK, INC.
REV
A
B
C
D
E
F
G
REVISION
DESCRIPTION
INITIAL RELEASE, RFS.6843, DMR
ADD PACKING, ROHS, RFS. 11824, MS
ADD CARTON SIZE PACKING, RFS. 12512, JS
ADD UNIT BAG LABEL, RFS. 17385, EM
REVISE DESCRIPTION, RFS. 18362, SO
REMOVE UNIT BAG LABEL, RFS.23052, EM
UPDATE BLADE CONFIGURATION, RFS.26340, NF
DATE
08/11/05
08/22/07
11/26/07
11/02/09
03/30/10
06/06/12
05/27/16
APPROVED
DMR
HM
HM
HM
HM
HM
HM
STANDARD OPTION SHIPS
WITHOUT AC PINS INSTALLED
1. MATERIAL
HIGH IMPACT PLASTIC, 94V0 POLYCARBONATE, NON-VENTED, COLOR BLACK
2. INPUT CONNECTOR:
AUSTRALIAN AS 3112 CONFIGURATION: SAA 2 PINS CLASS II WITH BLADE INSULATION
P/N: Q-SAA(R)
AUSTRALIA
Foot Note:
Globtek Inc. will not be liable for the
safety and performance of these power supplies
if unauthorized access and repair occurs. End
user should consult applicable UL, CSA or
EN standards for proper installation instructions
Limitation of Use:
Globtek product are not authorized for use as
mission critical components in life support, haz-
ardous environment, nuclear or
aircraft applications without prior written
approval from the CEO of Globtek Inc.
DASH
NO.
PART NO
REV.
DESCRIPTION
By N.Frost at 10:55 am, May 27, 2016
NOTES
TABULATION BLOCK
DECIMALS
.xx +/- 0.1
.xxx +/- .005
TOLERANCES:
o
ANGULAR
+/- 1
www.globtek.com
o
186 Veterans Dr. Northvale, NJ 07647
Tel. 201-784-1000 Fax 201.784.0111
INIT.BY: DMR DATE:
08/11/05
DATE:
DRAWN: NF
08/11/05
DATE:
APRVD : DMR
08/11/05
MILLIMETERS ANGULAR
+/- 1
.xx +/- 0.3
.xxx +/- .013

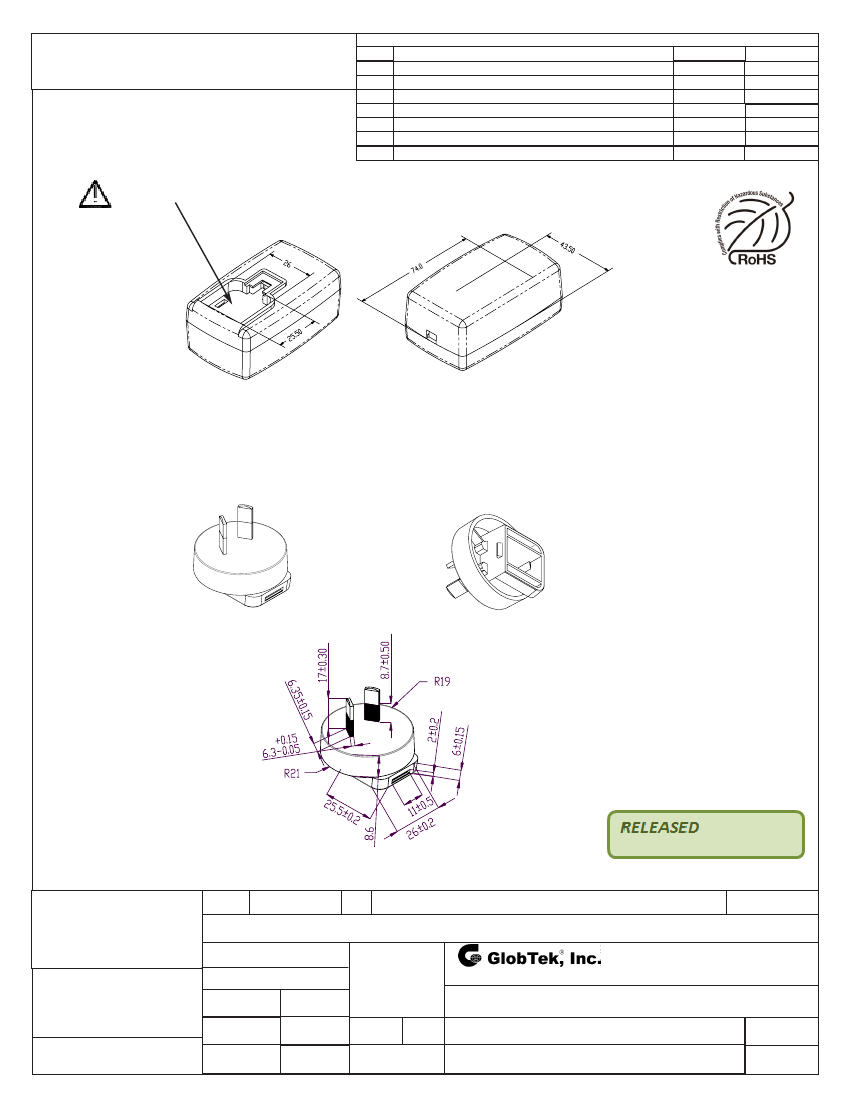

DWG TITLE: AUSTRALIAN INTERCHANGEABLE INPUT BLADES
MODEL NO: N/A
PART NO:
Q-SAA(R)
REV.
G
SHEET 1 OF 2
FSCN No.:
G, N
S I ZE
A
SCALE: NONE
PROPRIETARY INFORMATION:
PROPRIETARY OF GLOBTEK, INC. ANY REPRODUCTION, DISCLOSURE OR
USE OF THIS DRAWING, IN WHOLE OR IN PART, IS HEREBY
PROHIBITED EXCEPT AS SPECIFIED IN WRITING BY GLOBTEK, INC.

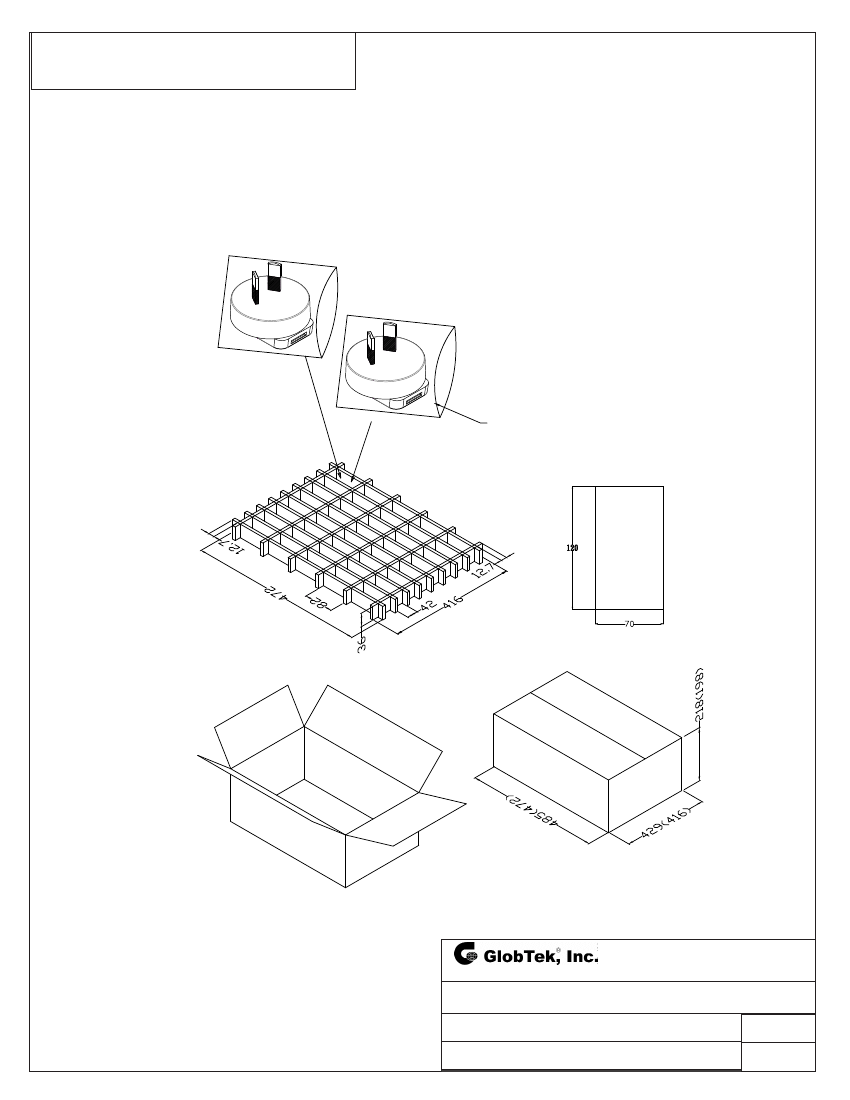

3. PACKING:
CARTON SIZE: 485 x 429 x 218
Q’TY: 400 pcs (80 x 5)
PE BAG(SIZE:70X120)
2PCS
PE BAG
www.globtek.com
186 Veterans Dr. Northvale, NJ 07647
Tel. 201-784-1000 Fax 201.784.0111
DWG TITLE: AUSTRALIAN INTERCHANGEABLE INPUT BLADES
MODEL NO: N/A
PART NO:
Q-SAA(R)
REV.
G
SHEET 2 OF 2
