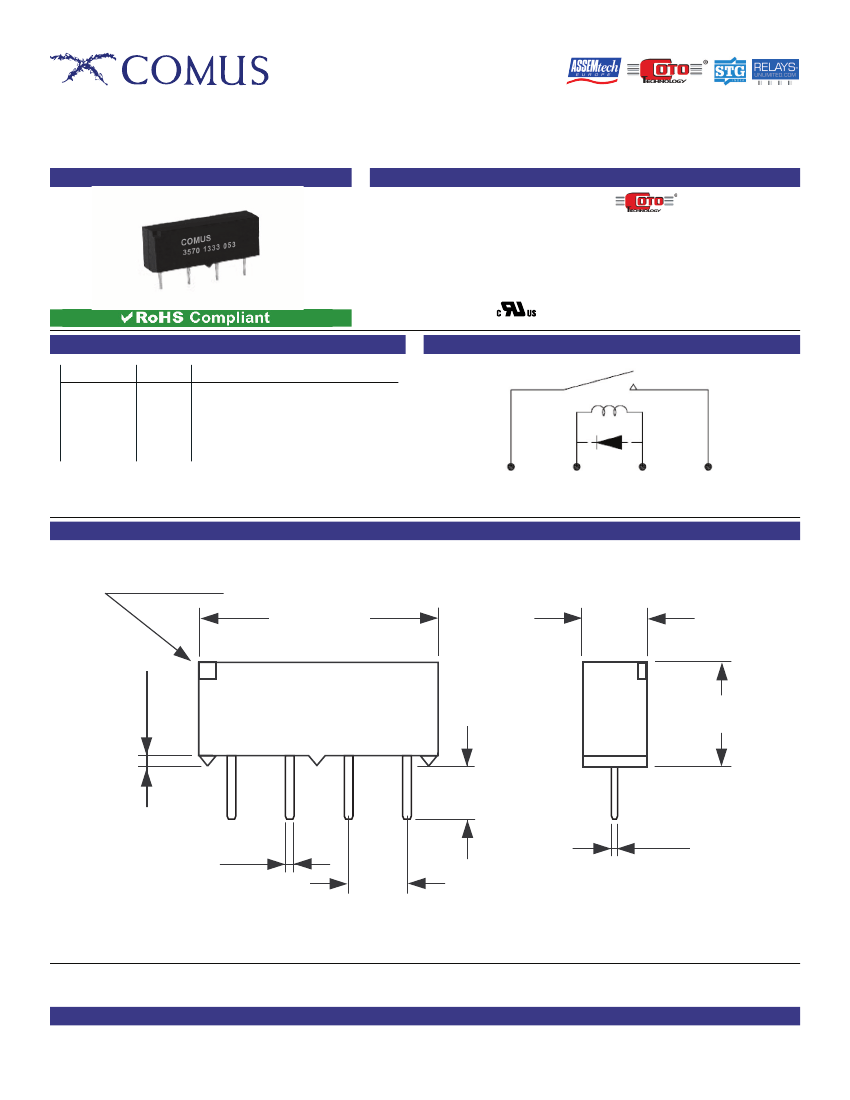

Relays
Part Number: 3570 1333
Instrumentation Grade SIP - 1 Form A
Product Data Sheet
FEATURES
• High Reliability Instrumentation Grade
with sputtered Ruthenium contacts.
• SIP 1 Form A - 10 W dry reed relays
• Ideal for test and instrumentation applications.
• High Insulation Resistance : 10
12
Ω MIN
• Molded thermoset industry standard package.
• Optional internal coil suppression diode.
• UL File E358613
®
reed switch
ORDERING INFORMATION
Series
3570.1333.
Coil
05
12
Options
1 = no diode
3 = with diode
SCHEMATIC
Part Number Example:
3570.1333.xxx
3570.1333.051 = 5 volt coil, no diode
1
DIMENSIONS
+
_
2
3
4
IDENTIFIES PIN #1
0.748 (19.0)
0.20
(5.08)
0.030 (0.8)
0.303
(7.70)
1
2
3
4
0.125
(3.18)
0.009
(0.25)
0.20
(5.08)
0.02
(0.50)
Drawings not to scale.
All dimensions in inches (mm) nominal.
As part of the company policy of continued product improvement, specifications may change without notice. Our sales office will be pleased to help you with the latest information on this product range and
the details of our full design and manufacturing service. All products are supplied to our standard conditions of sale unless otherwise agreed in writing.
Phone: (1) 973 777 6900
www.comus-intl.com
Fax: (1) 973 777 8405
Belgium: + 32 (0)12 390400 - Comus Europe Ltd (Assemtech) UK: +44 (0) 1255 862236 - Germany: +49 (0)911 923 15 943 - Netherlands: +31(0)45 54 39 345 - India: +(91) (44) 43219090
©2015 Copyright Comus International, 454 Allwood Road, Clifton NJ 07012, USA
1 / 2015
An ISO 9001 Certified Company
Relays
Part Number: 3570 1333
Instrumentation Grade SIP - 1 Form A
Product Data Sheet
COIL DATA-STANDARD TYPE 1 FORM A (at 20˚C)
NOMINAL COIL
VOLTAGE (VDC)
NOMINAL COIL
RESISTANCE
±10%
(Ω)
MAX OPERATE
VOLTAGE (VDC)
MIN RELEASE
VOLTAGE (VDC)
MAX COIL
VOLTAGE (VDC)
5
12
Max Switching Power
Max Switching Voltage
Max Switching Current
Max Carry Current
Contact Resistance (Initial)
500
1000
3.75
9
0.8
1
7
16
CONTACT RATING
10 W
200 VDC
0.5 A
1.5 A
SPECIFICATION
MAX 150 mΩ
0.35 ms (At Nominal Voltage)
0.1 ms
10
12
Ω
Between Open Contacts 200 V DC / peak AC
Between Coil to Contacts 1500 V DC / peak AC
0.5 pF
20G
50G
-40° +85°C
-40° +100°C
1000 x 10
6
ops (1 VDC, 10mA)
Operate Time - including bounce (Typical)
Release Time (Typical)
Insulation Resistance @ 100V, 20°C, 40% RH (MIN)
Dielectric Strength (MIN)
Capacitance Between Open Contacts (Typical)
Vibration
Shock
Operating Temperature
Storage Temperature
Life Expectancy of Electrical
