Plug - PP-H 2,5/ 3 - 3209882
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

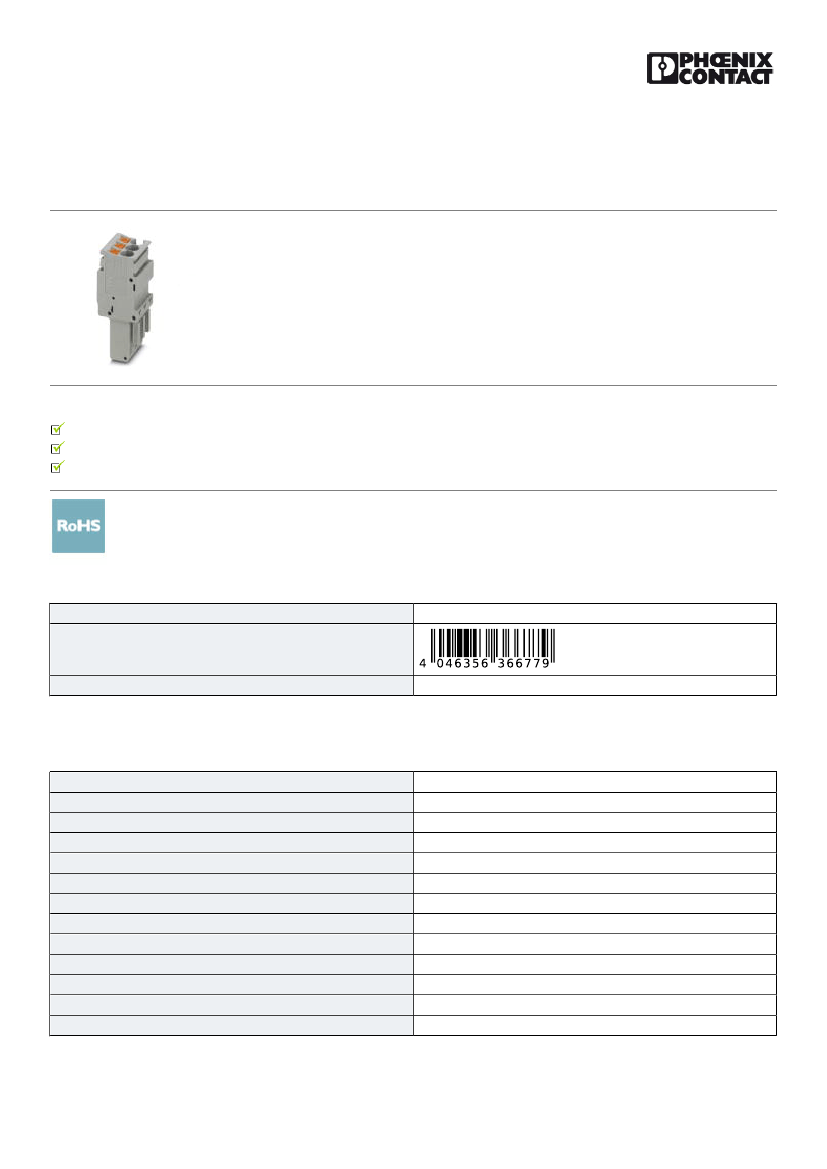

Plug, nom. voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, number of
connections: 3, number of positions: 3, cross section:0.14 mm² - 4 mm², AWG: 26 - 12, width: 15.6 mm,
height: 40.2 mm, color: gray
Your advantages
Large-surface labeling option
The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Tested for railway applications
Key Commercial Data
Packing unit
GTIN
GTIN
4046356366779
50 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
3
1
3
1
2.5 mm²
gray
PA
V0
Railway industry
Machine building
Plant engineering
Maximum load current
Rated surge voltage
24 A (with a 2.5 mm² conductor cross section)
6 kV
11/11/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3209882
Plug - PP-H 2,5/ 3 - 3209882
Technical data
General
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
3
III
I
0.77 W
24 A (with 4 mm² conductor cross section)
24 A
500 V
No
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
Pitch
15.6 mm
15.8 mm
40.2 mm
24 mm
5.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Push-in connection
IEC 61984
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
11/11/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/3209882
Plug - PP-H 2,5/ 3 - 3209882
Technical data
Connection data
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
26
14
0.14 mm²
0.14 mm²
2.5 mm²
0.5 mm²
8 mm ... 10 mm
A3
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CSA
IEC 61984
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

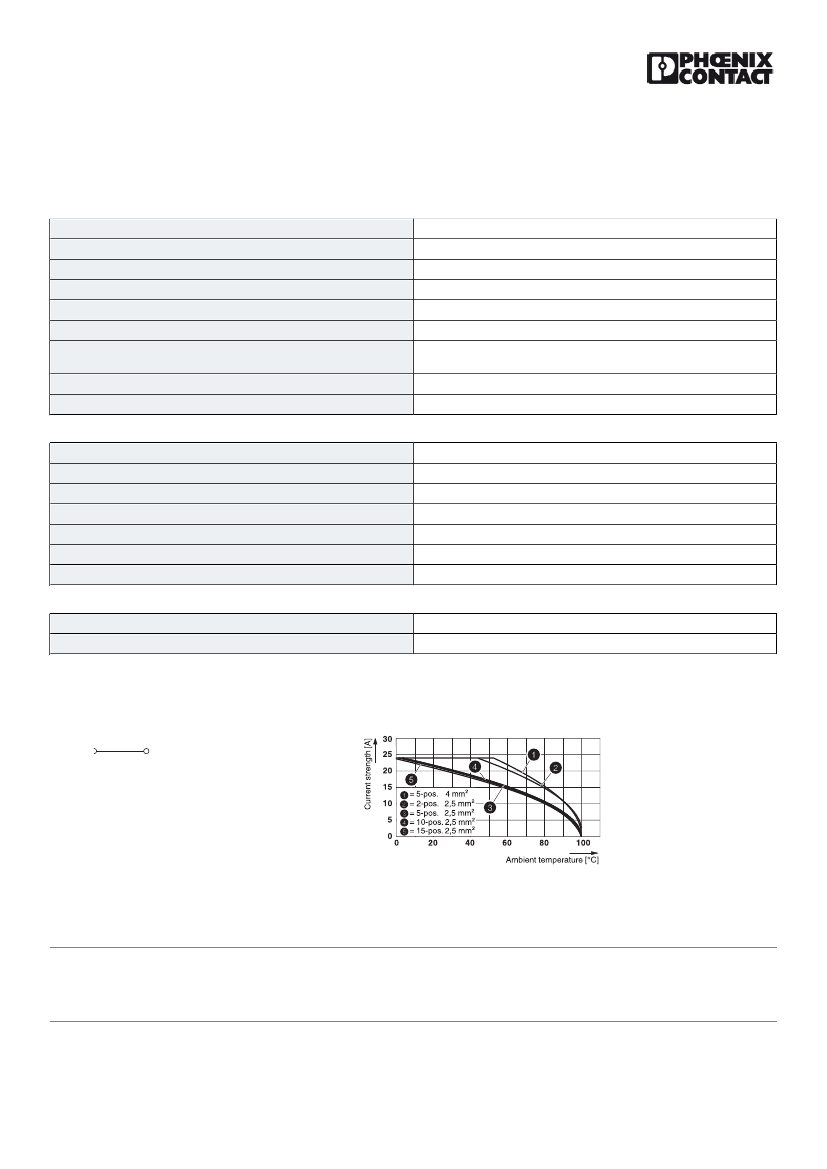

Drawings
Circuit diagram
Diagram
Approvals
Approvals
Approvals
DNV GL / CSA / BV / LR / NK / ABS / UL Recognized / cUL Recognized / EAC / cULus Recognized
11/11/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/3209882
Plug - PP-H 2,5/ 3 - 3209882
Approvals
Ex Approvals
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00000UD_01
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
300 V
20 A
26-12
http://www.csagroup.org/services-industries/product-listing/
C
300 V
20 A
26-12
13631
BV
D
600 V
5A
26-12
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
25278/B0 BV
LR
http://www.lr.org/en
10/20040
NK
http://www.classnk.or.jp/hp/en/
14ME0912
ABS
http://www.eagle.org/eagleExternalPortalWEB/
16-HG1591536-PDA
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
20 A
26-12
C
300 V
20 A
26-12
FILE E 60425
cUL Recognized
Nominal voltage UN
Nominal current IN
D
600 V
5A
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
20 A
C
300 V
20 A
FILE E 60425
11/11/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3209882
Plug - PP-H 2,5/ 3 - 3209882
Approvals
mm²/AWG/kcmil
D
26-12
B
26-12
C
26-12
EAC
EAC-Zulassung
cULus Recognized
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/11/2018 Page 5 / 5
