PH9455.826NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> PH9455.826NL

PH9455.826NL: DescriptionCMC 82MH 3A 2LN 37 KOHM TH; Categorysemiconductor Analog mixed-signal IC; File Size529KB，3 Pages; ManufacturerPulse Electronics Power; Environmental Compliance

Download Datasheet Parametric Compare View All

PH9455.826NL Overview

CMC 82MH 3A 2LN 37 KOHM TH

PH9455.826NL Parametric

Parameter Name	Attribute value
filter type	-
Number of lines	2
Impedance at different frequencies	37 kOhms @ 130kHz
Inductance @ frequency	82mH @ 130kHz
Rated current (maximum)	3A
DC Resistance (DCR) (Max)	150 milliohms
Rated voltage - DC	-
Rated voltage - AC	250V
Operating temperature	-40°C ~ 125°C
grade	-
Approval	-
characteristic	-
Installation type	Through hole
size/dimensions	1.181" long x 0.748" wide (30.00mm x 19.00mm)
Height (maximum value)	1.102"（28.00mm）
Package/casing	Vertical, 4 PC pins

Preview

Download Datasheet

View All

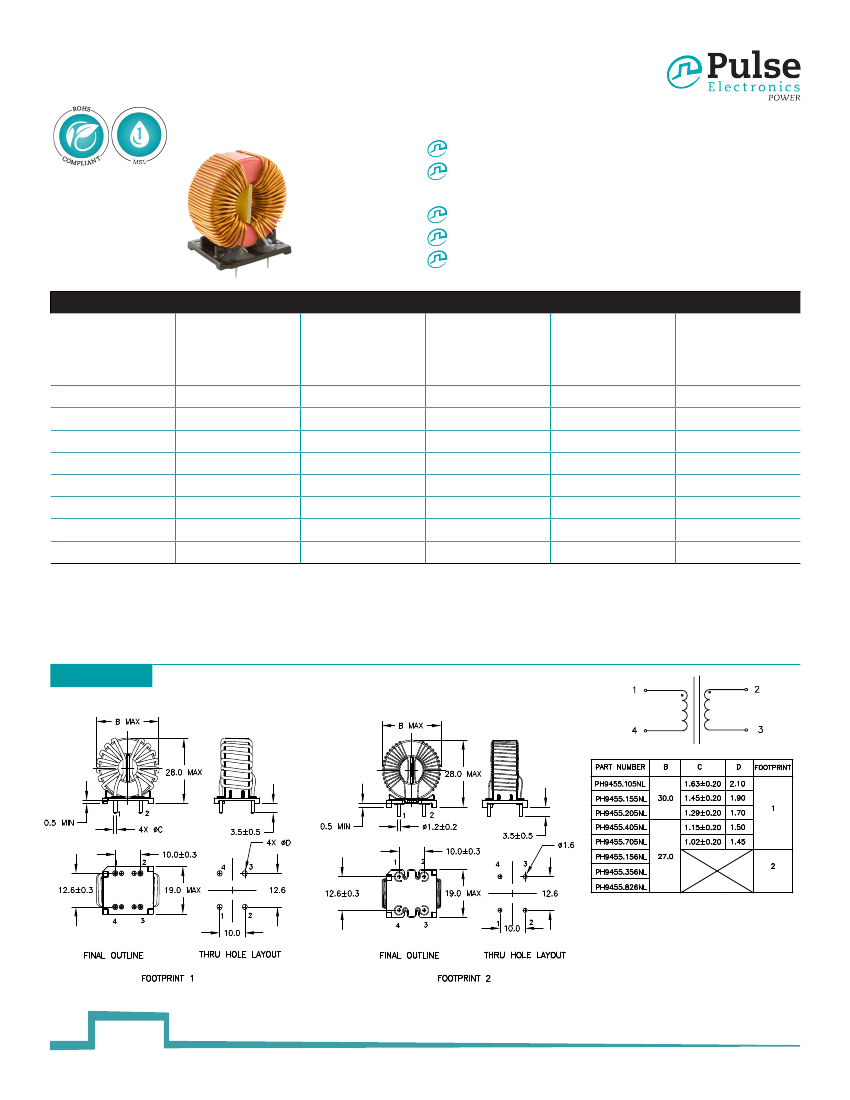

THT Common Mode Chokes

PH9455.XXXNL Series

Dielectric Strength:

1500Vrms

Inductance Range:

1.00mH (at 22.0A) to

82.0mH (at 3.0A)

Height:

28.0mm Max

Footprint:

12.6mm x 10.0mm

Voltage Rating:

250Vac Max

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Inductance

(1-4)=(2-3)

(mH +50%/-30%)

1.00

1.62

2.20

4.50

6.50

15.0

35.0

82.0

Current Rating

(1-4)=(2-3)

(A)

DCR

(1-4)=(2-3)

(mΩ Max)

2.10

3.20

4.50

8.50

14.0

30.0

80.0

150

Self Resonant

Frequency

(1-4)=(2-3)

(MHz Min)

15.94

10.00

8.39

4.00

1.52

0.76

0.33

0.13

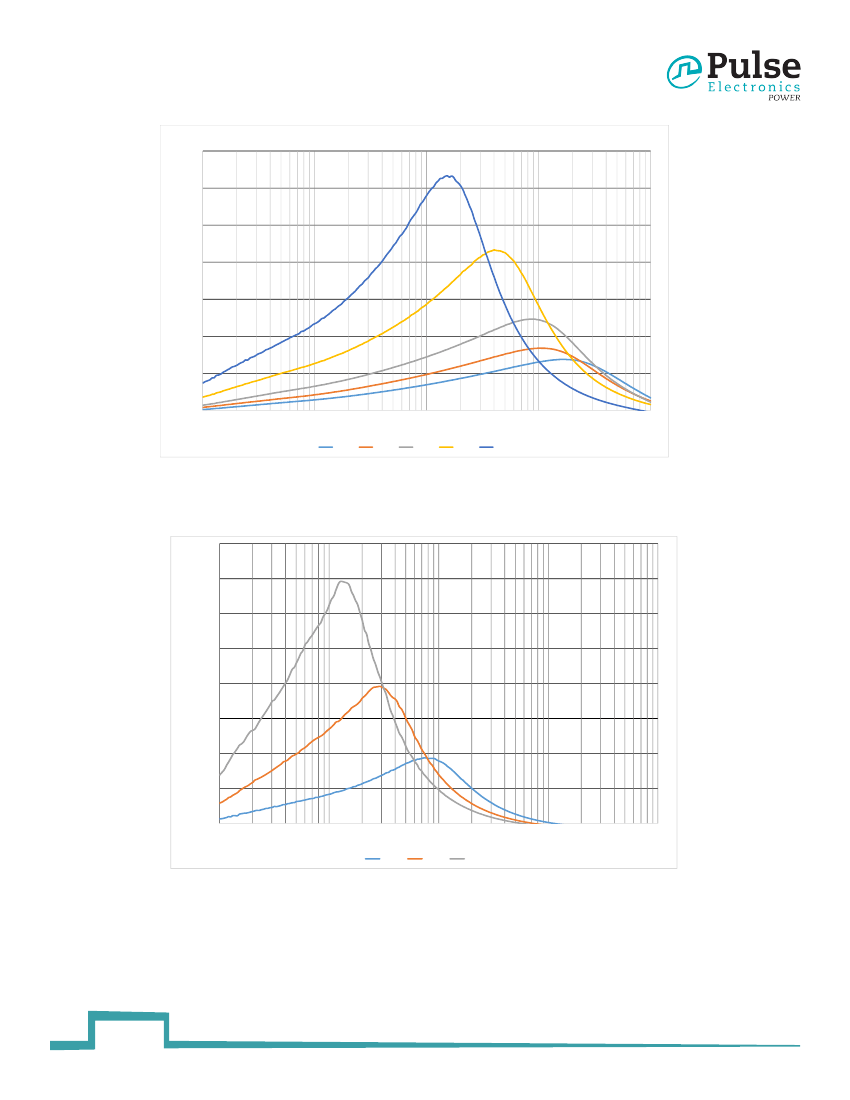

Impedance

(kOhms Min at SRF)

1.5

1.8

2.6

4.4

6.4

Part Number

PH9455.105NL

PH9455.155NL

PH9455.205NL

PH9455.405NL

PH9455.705NL

PH9455.156NL

PH9455.356NL

PH9455.826NL

Notes:

1. The current rating (Irated) is based upon the temperature rise of the component and represents the rms current which will cause a typical temperature rise of 55½C.

Mechanical

PH9455.XXXNL

Schematic

Weight (TYP)

...................20grams

Tray

....................................45/tray

Dimensions: mm

Unless otherwise specified, all tolerance are ±0.25

power.pulseelectronics.com

P789.D (01/18)

http://www.power.pulseelectronics.com/contact
