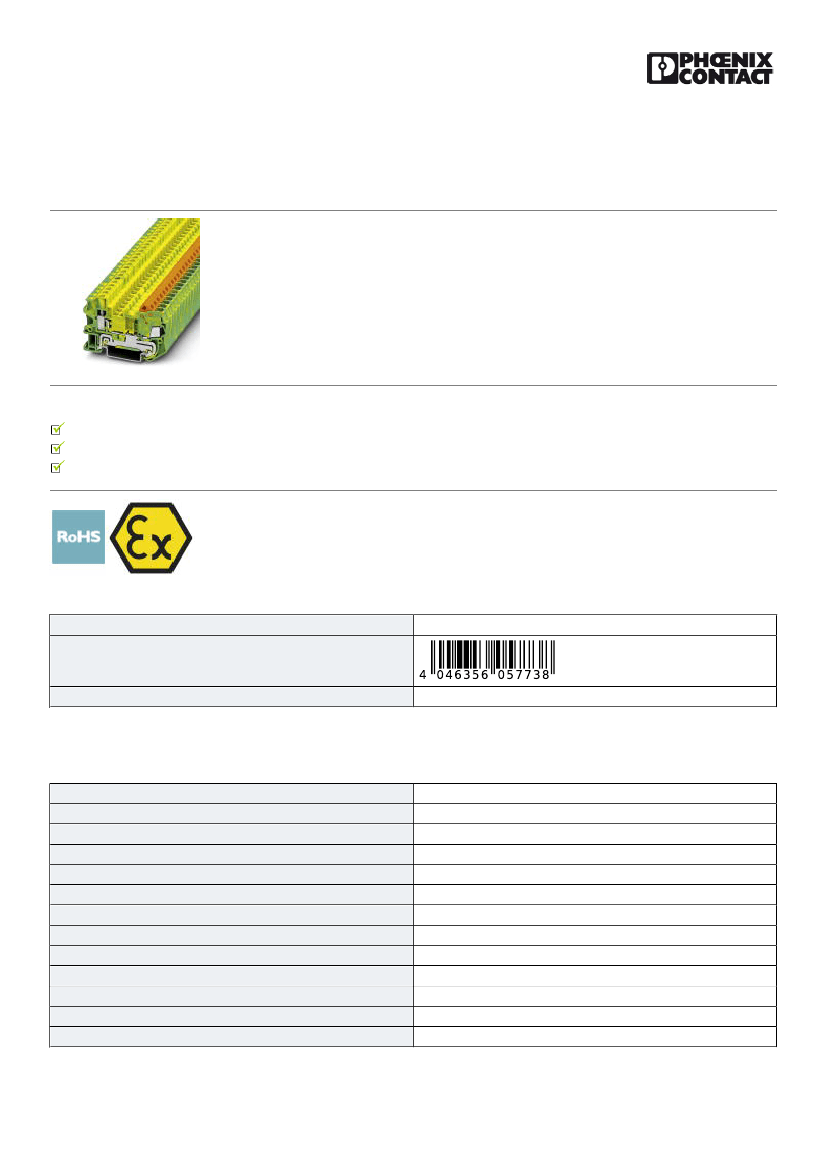

Ground modular terminal block - QTCU 2,5-PE - 3206555
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ground modular terminal block, connection method: Quick connection, Screw connection, cross section: 0.5
mm² - 2.5 mm², AWG: 20 - 14, width: 6.2 mm, color: green-yellow, mounting: NS 35/7,5, NS 35/15
Your advantages
Same shape and pitch as the feed-through terminal blocks
Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
All the requirements of standard IEC 60947-7-2 are met
Key Commercial Data
Packing unit
GTIN
GTIN
4046356057738
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Ambient temperature (actuation)
Connection method
Connection in acc. with standard
1
2
2.5 mm²
green-yellow
PA
V0
8 kV
3
III
I
-10 °C ... 90 °C
Quick connection
IEC 60947-7-2
11/11/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3206555
Ground modular terminal block - QTCU 2,5-PE - 3206555
Technical data
General
Connection method
Connection in acc. with standard
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
Screw connection
IEC 60947-7-2
Yes
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
End cover width
6.2 mm
62.6 mm
42.8 mm
50.3 mm
2.2 mm
Connection data
Connection method
Connection in acc. with standard
Note
Max. wire diameter incl. insulation
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Connection in acc. with standard
Quick connection
IEC 60947-7-2
Please observe the current carrying capacity of the DIN rails.
3.8 mm
0.5 mm²
2.5 mm²
20
14
0.5 mm²
2.5 mm²
20
14
IEC/EN 60079-7
11/11/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/3206555
Ground modular terminal block - QTCU 2,5-PE - 3206555
Technical data
Connection data
Test certificate name
Conductor cross section AWG min.
Conductor cross section AWG max.
Material wire insulation
KEMA 05ATEX2148 U
20
14
PVC / PE
Standards and Regulations
Connection in acc. with standard
CUL
IEC 60947-7-2
IEC 60947-7-2
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Approvals
Approvals
Approvals
DNV GL / BV / LR / NK / ABS / UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
IECEx / ATEX / EAC Ex
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE000014H
11/11/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/3206555
Ground modular terminal block - QTCU 2,5-PE - 3206555
Approvals
BV
B
20-14
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
20148/A0 BV
LR
http://www.lr.org/en
15/20023
NK
http://www.classnk.or.jp/hp/en/
09 ME 139
ABS
http://www.eagle.org/eagleExternalPortalWEB/
16-HG1589079-PDA
UL Recognized
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
20-14
FILE E 60425
cUL Recognized
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
20-14
FILE E 60425
20-14
EAC
EAC-Zulassung
cULus Recognized
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/11/2018 Page 4 / 4
