Motion SPM® 55 Series
March 2017
FNB51060T1
Motion SPM
®
55 Series
Features
• UL Certified No. E209204 (UL1557)
• 600 V - 10 A 3-Phase IGBT Inverter Including Control
IC for Gate Drive and Protections
• Low-Loss, Short-Circuit Rated IGBTs
• Separate Open-Emitter Pins from Low-Side IGBTs for
Three-Phase Current Sensing
• Active-HIGH interface, works with 3.3 / 5 V Logic,
Schmitt-trigger Input
• HVIC for Gate Driving, Under-Voltage and Short-Cir-
cuit Current Protection
• Fault Output for Under-Voltage and Short-Circuit Cur-
rent Protection
• Inter-Lock Function to Prevent Short-Circuit
• Shut-Down Input
• HVIC Temperature-Sensing Built-In for Temperature
Monitoring
• Optimized for 15 kHz Switching Frequency
• Isolation Rating: 1500 V
rms
/ min.
General Description

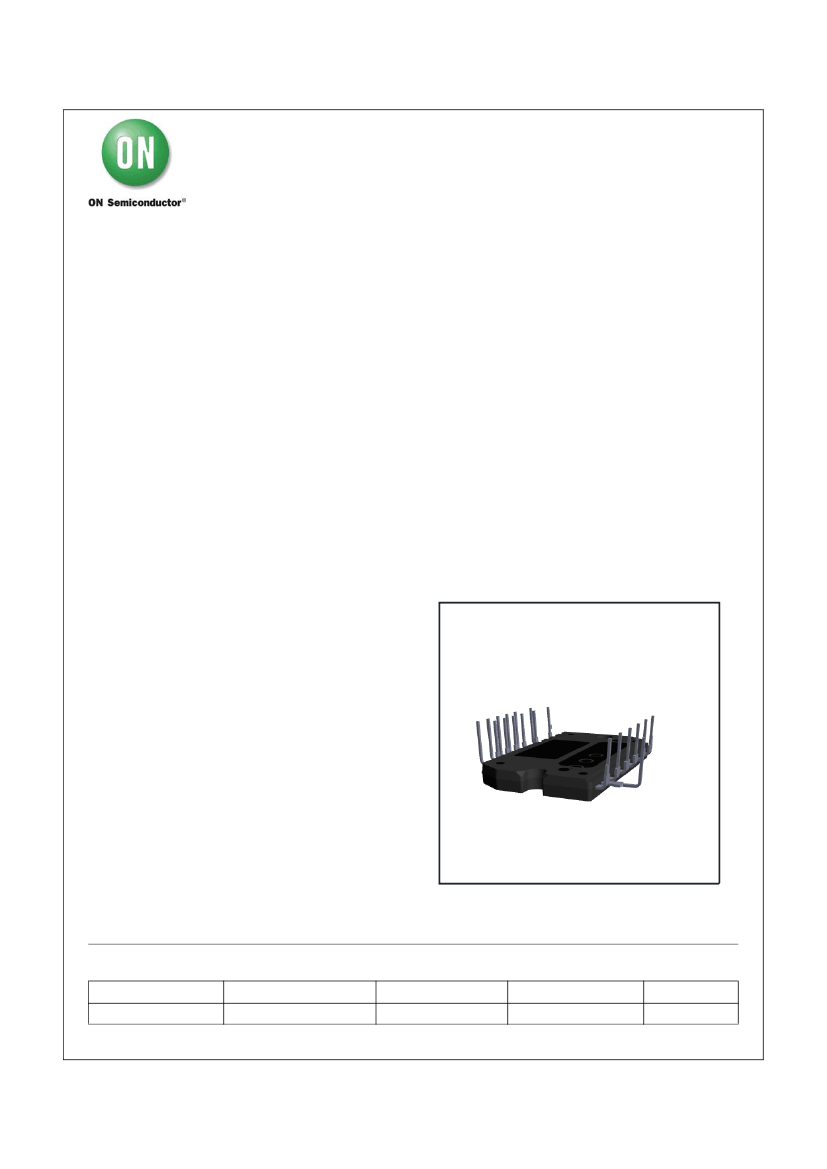

FNB51060T1 is a Motion SPM 55 module providing a
fully-featured, high-performance inverter output stage for
AC Induction, BLDC, and PMSM motors. These modules
integrate optimized gate drive of the built-in IGBTs to
minimize EMI and losses, while also providing multiple
on-module protection features including under-voltage
