3.14200.7330000 datasheet, PDF

Datasheet> All Categories > accessories> 3.14200.7330000

3.14200.7330000: DescriptionSWITCH TACTILE SPST-NO 0.1A 35V; Categoryaccessories; File Size408KB，2 Pages; ManufacturerRAFI USA; Environmental Compliance

Download Datasheet Parametric View All

3.14200.7330000 Overview

SWITCH TACTILE SPST-NO 0.1A 35V

3.14200.7330000 Parametric

Parameter Name	Attribute value
circuit	SPST-NO
switch function	Off - instantaneous
Contact rated current at different voltages	0.1A @ 35VAC/DC
Actuator type	square button
Installation type	Through hole
Actuator PCB height, vertical	12.50mm
Actuator length, right angle	-
Actuator direction	top touch
Terminal type	PC pin
shape	15.00mm x 15.00mm
illumination	glow
lighting type, color	LED, yellow
Lighting voltage (nominal)	-
force	296gf
Intrusion protection	-
characteristic	-
Operating temperature	-25°C ~ 70°C
Actuator material	-
Switching stroke	0.50mm
Mechanical life	1,000,000 cycles

Preview

Download Datasheet

View All

17.10.2016

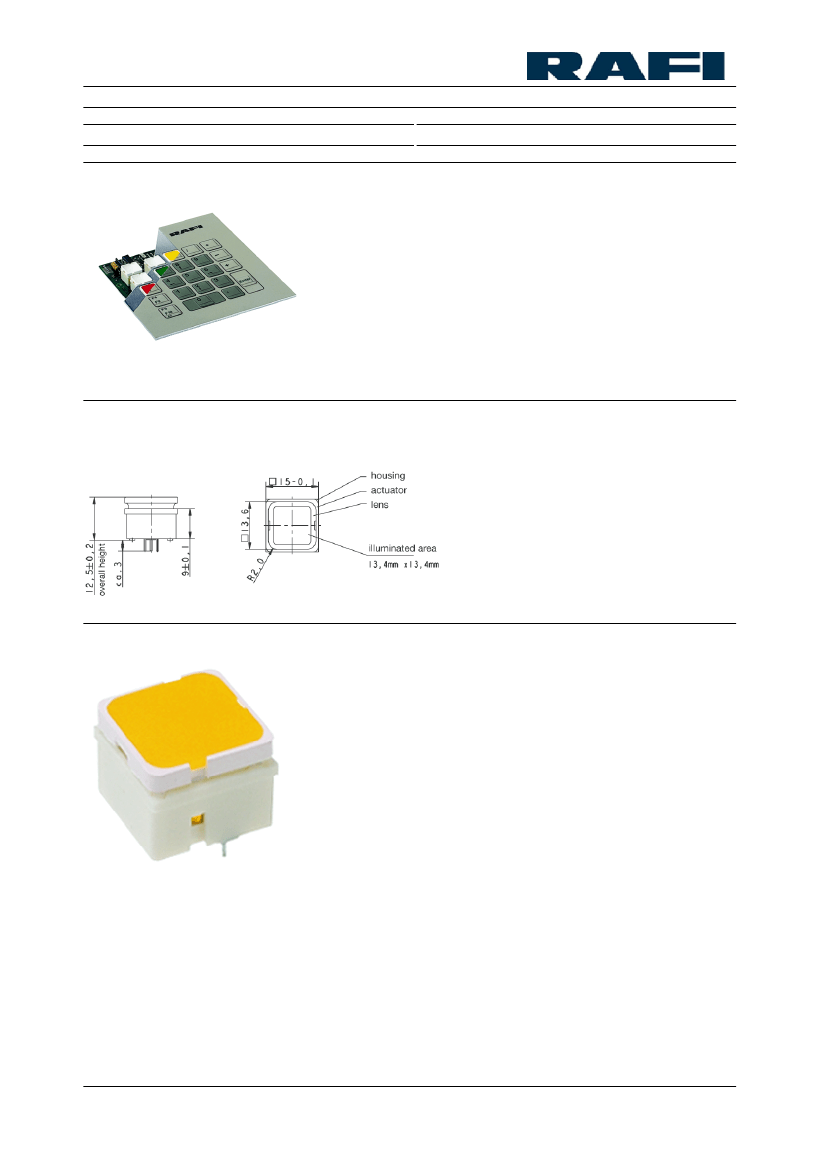

RF 15 H - Tactile switch, fully illuminated, gold contacts

3.14.200.733/0000

General information

Color of lens

Recommended key grid

Dimensions

Length

Width

Overall height

Mechanical design

Mounting

Terminals

Contact system

Contact arrangement

Contact materials

Illumination

LED color

LED type

Mechanical characteristics

Operating force max.

Switching travel

Robustness max.

Electrical characteristics

Rated voltage min.

Rated voltage max.

Rated current min.

Rated current max.

Rated power max. (ohmic load)

Contact resistance when new max.

Insulation resistance

Other specifications

Ambient temp. operating min.

Ambient temp. operating max.

Environmental restistance

Operating life min. (operations)

Solderability / solder heat resistance

Wave soldering

Manual soldering

yellow

20 mm

15 mm

12.5 mm

soldering in PCB

THT

snap-action contact

1 NO

fully illuminated 2 LED

yellow

2 mm

2.9

±0.6

0.5

+0.2

with through-plated PCB 100 N

Au: 0.02 V, Ag: 3 V

35 V

Au: 0.01 mA, Ag: 0.1 mA

Au: 100 mA, Ag: 250 mA

Au: 2 W, Ag: 12.5 W

100 mΩ

-25 °C

+70 °C

acc. to IEC 60068-2-14, -30, -33 and -78

1,000,000 cycle

according to DIN EN 60068-2-20

260 °C max.

350 °C / 5 sec. max.

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
