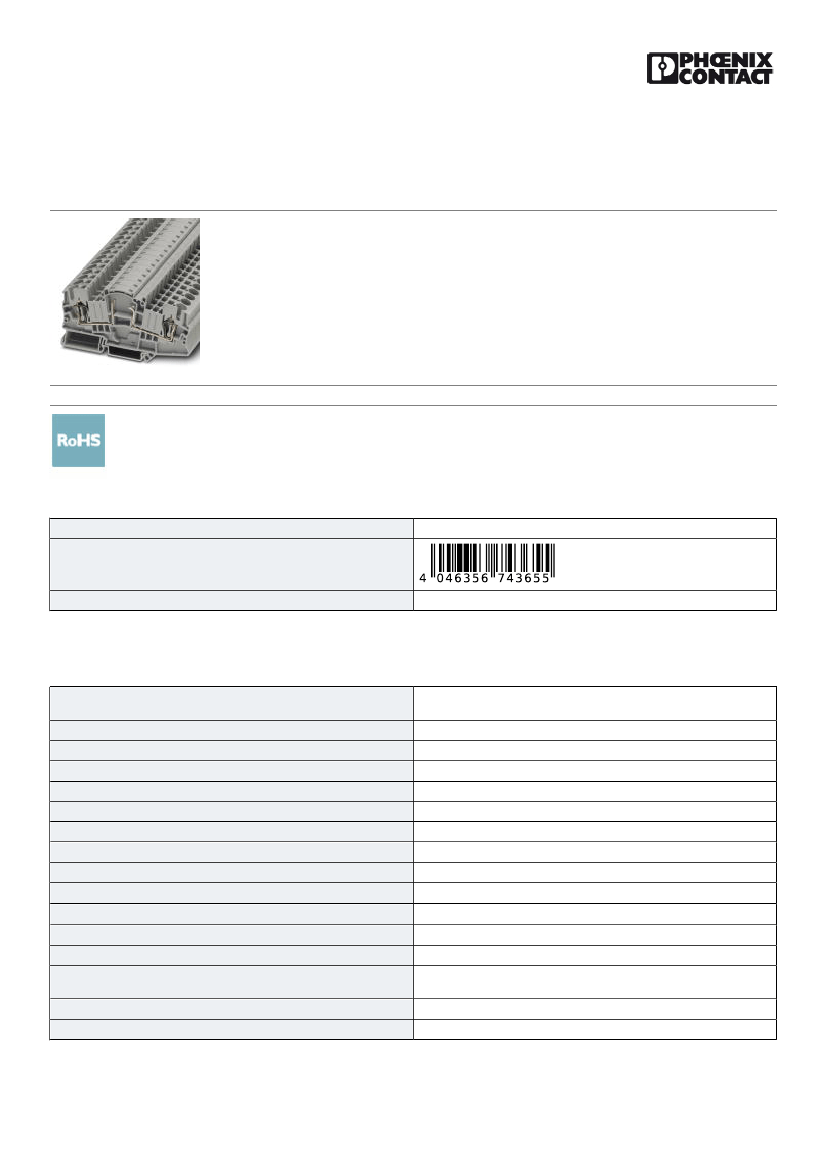

Component terminal block - STME 6-BE - 3035688
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Component terminal block, for installing components that can be individually selected, connection method:
Spring-cage connection, cross section: 0.2 mm² - 10 mm² , AWG: 24 - 10, width: 8.2 mm, color: gray
Key Commercial Data
Packing unit
GTIN
GTIN
4046356743655
50 pc
Technical data
General
Note
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum power dissipation for nominal condition
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
If several diode terminal blocks need adding to the DIN rail, a spacer
plate must be placed between them.
1
2
1
6 mm²
gray
PA
V0
1.31 W
30 A (the current is determined by the component used)
500 V (the voltage is determined by the component used)
Yes
130 °C
130 °C
-60 °C
Test passed
11/11/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3035688
Component terminal block - STME 6-BE - 3035688
Technical data
General
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
8.2 mm
100.8 mm
60 mm
67.5 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Spring-cage connection
0.2 mm²
10 mm²
24
8
0.2 mm²
6 mm²
24
10
0.25 mm²
0.25 mm²
6 mm²
0.5 mm²
1.5 mm²
12 mm
A4
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
Standards and Regulations
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
V0
HL 1 - HL 3
11/11/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/3035688
Component terminal block - STME 6-BE - 3035688
Technical data
Standards and Regulations
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
S1 S2
Circuit diagram
S1 S2
S1 S2
L1 L2 L3
N
S1
S2
P2
S1
S2
P2
S1
S2
P2
L1
L2
L3
N
P1
P1
P1
Circuit diagram
S1 S2
S1 S2
S1 S2
L1 L2 L3
N
S1
S2
P2
S1
S2
P2
S1
S2
P2
L1
L2
L3
N
P1
P1
P1
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/11/2018 Page 3 / 3
