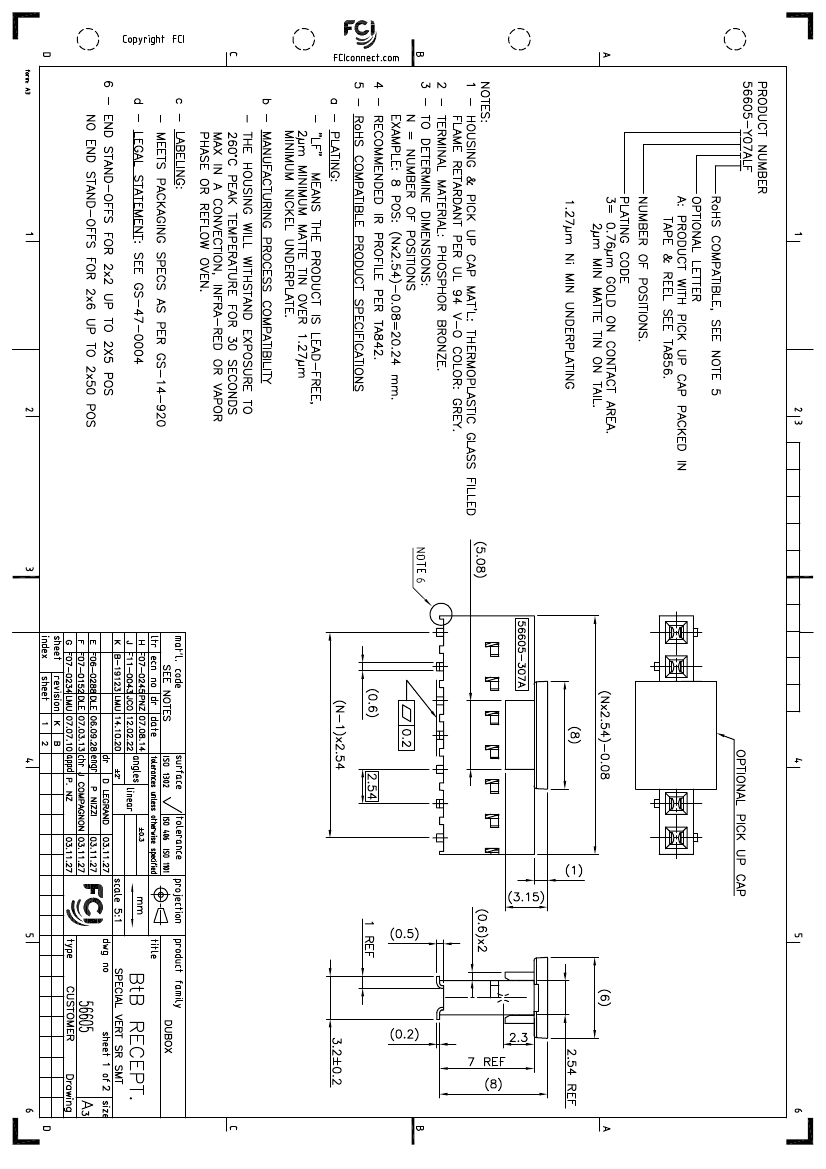

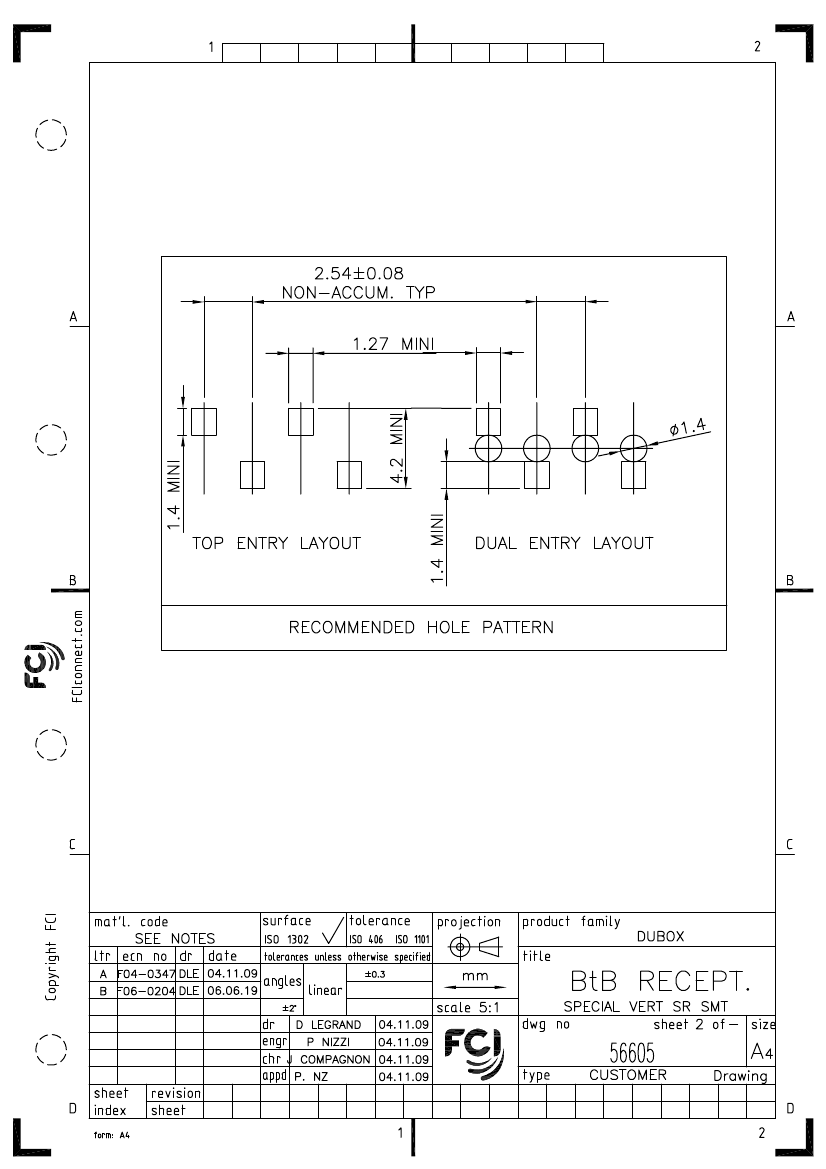

56605-307ALF

Description
CONN RCPT
CategoryThe connector    The connector
File Size92KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

56605-307ALF Online Shopping

Suppliers Part Number Price MOQ In stock
56605-307ALF - - View Buy Now

56605-307ALF Overview

CONN RCPT

56605-307ALF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.1 inch
subject depth0.275 inch
body length0.697 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedMATTE TIN (79) OVER NICKEL (50)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorGRAY
insulator materialGLASS FILLED THERMOPLASTIC
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number56605
Plug contact pitch0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts7
UL Flammability Code94V-0
PDS: Rev :K
STATUS:Released
Printed: Oct 29, 2014

56605-307ALF Related Products

56605-307ALF
Description CONN RCPT
Is it Rohs certified? conform to
Maker Amphenol
package instruction ROHS COMPLIANT
Reach Compliance Code compliant
ECCN code EAR99
body width 0.1 inch
subject depth 0.275 inch
body length 0.697 inch
Body/casing type RECEPTACLE
Connector type BOARD CONNECTOR
Contact to complete cooperation GOLD (30)
Contact completed and terminated MATTE TIN (79) OVER NICKEL (50)
Contact point gender FEMALE
Contact material PHOSPHOR BRONZE
contact mode RECTANGULAR
Contact style SQ PIN-SKT
DIN compliance NO
Filter function NO
IEC compliance NO
Insulator color GRAY
insulator material GLASS FILLED THERMOPLASTIC
JESD-609 code e3
MIL compliance NO
Manufacturer's serial number 56605
Plug contact pitch 0.1 inch
Mixed contacts NO
Installation option 1 LOCKING
Installation method STRAIGHT
Installation type BOARD
Number of connectors ONE
PCB row number 2
Number of rows loaded 1
Options GENERAL PURPOSE
PCB contact pattern STAGGERED
Plating thickness 30u inch
polarization key POLARIZED HOUSING
Guideline UL
reliability COMMERCIAL
Terminal pitch 2.54 mm
Termination type SURFACE MOUNT
Total number of contacts 7
UL Flammability Code 94V-0
