Datasheet> All Categories > The connector> CT2234-4

Preview

CT2234-4: Description4MM BINDING POST UNINS YELLOW; CategoryThe connector; File Size120KB，1 Pages; ManufacturerCal Test Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

CT2234-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CT2234-4	-	-	View	Buy Now

CT2234-4 Overview

4MM BINDING POST UNINS YELLOW

CT2234-4 Parametric

Parameter Name	Attribute value
type	standard
Connector style	Knurled
Termination	With thread and turret
Termination thread	M6
Rated current	36A
Material - Body	brass
Coating - Substrate	nickel
color	yellow
Cross hole diameter	0.080"（2.00mm）
Connector size	0.430" outer diameter (11.00mm)
Material - Insulation	Polyamide (PA), nylon
Nut material	brass
Nut coating	nickel
Panel thickness	0.600"（15.24mm）
Rated voltage	1200V

Preview

Download Datasheet

View All

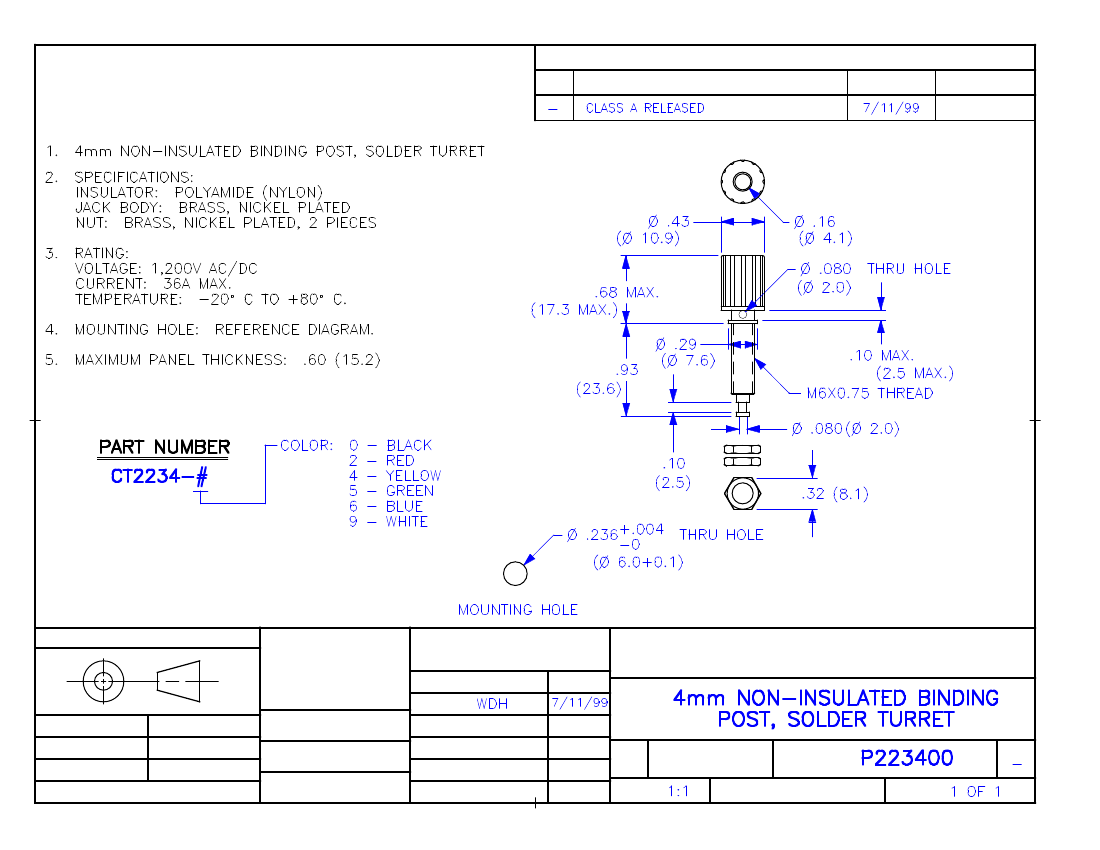

THIS IS ISSUED IN STRICT CONFIDENCE THAT

IT IS NOT USED AS A BASIS FOR

MANUFACTURE OR SALE AND THAT IT IS NOT

COPIED, REPRINTED OR DISCLOSED TO A

THIRD PARTY EITHER WHOLLY OR IN PART

WITHOUT THE PRIOR WRITTEN CONSENT OF

CAL TEST ELECTRONICS, INC.

REVISIONS

REV.

DESCRIPTIONS

DATE

APPROVED

THIRD ANGLE PROJECTION

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ARE:

FRACTIONS

DECIMALS

± 1/32

.XX ± .02

.XXX ±.005

DO NOT SCALE DRAWING

MATERIAL

CONTRACT NO.

Cal Test Electronics

DATE

TITLE

22820 Savi Ranch Parkway

Yorba Linda, CA 92887-4610

APPROVALS

DRAWN

CHECKED

ENGR.

DESIGN ACTIVITY

FINISH

NEXT ASSY

APPLICATION

USED ON

SIZE

A

CAGE CODE

43F45

DWG. NO.

REV.

SCALE

SHEET

CT2234-4 Related Products

	CT2234-4	CT2234-5	CT2234-6	CT2234-9	CT2234-0	CT2234-2
Description	4MM BINDING POST UNINS YELLOW	4MM BINDING POST UNINS GREEN	4MM BINDING POST UNINS BLUE	4MM BINDING POST UNINS WHITE	4MM BINDING POST UNINS BLACK	4MM BINDING POST UNINS RED
type	standard	standard	standard	standard	standard	standard
Connector style	Knurled	Knurled	Knurled	Knurled	Knurled	Knurled
Termination	With thread and turret	With thread and turret	With thread and turret	With thread and turret	With thread and turret	With thread and turret
Termination thread	M6	M6	M6	M6	M6	M6
Rated current	36A	36A	36A	36A	36A	36A
Material - Body	brass	brass	brass	brass	brass	brass
Coating - Substrate	nickel	nickel	nickel	nickel	nickel	nickel
color	yellow	green	blue	White	black	red
Cross hole diameter	0.080"（2.00mm）	0.080"（2.00mm）	0.080"（2.00mm）	0.080"（2.00mm）	0.080"（2.00mm）	0.080"（2.00mm）
Connector size	0.430" outer diameter (11.00mm)	0.430" outer diameter (11.00mm)	0.430" outer diameter (11.00mm)	0.430" outer diameter (11.00mm)	0.430" outer diameter (11.00mm)	0.430" outer diameter (11.00mm)
Material - Insulation	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
Nut material	brass	brass	brass	brass	brass	brass
Nut coating	nickel	nickel	nickel	nickel	nickel	nickel
Panel thickness	0.600"（15.24mm）	0.600"（15.24mm）	0.600"（15.24mm）	0.600"（15.24mm）	0.600"（15.24mm）	0.600"（15.24mm）
Rated voltage	1200V	1200V	1200V	1200V	1200V	1200V
