ABS22
THRU
ABS210
Technical Data
Data Sheet N1924, Rev. A

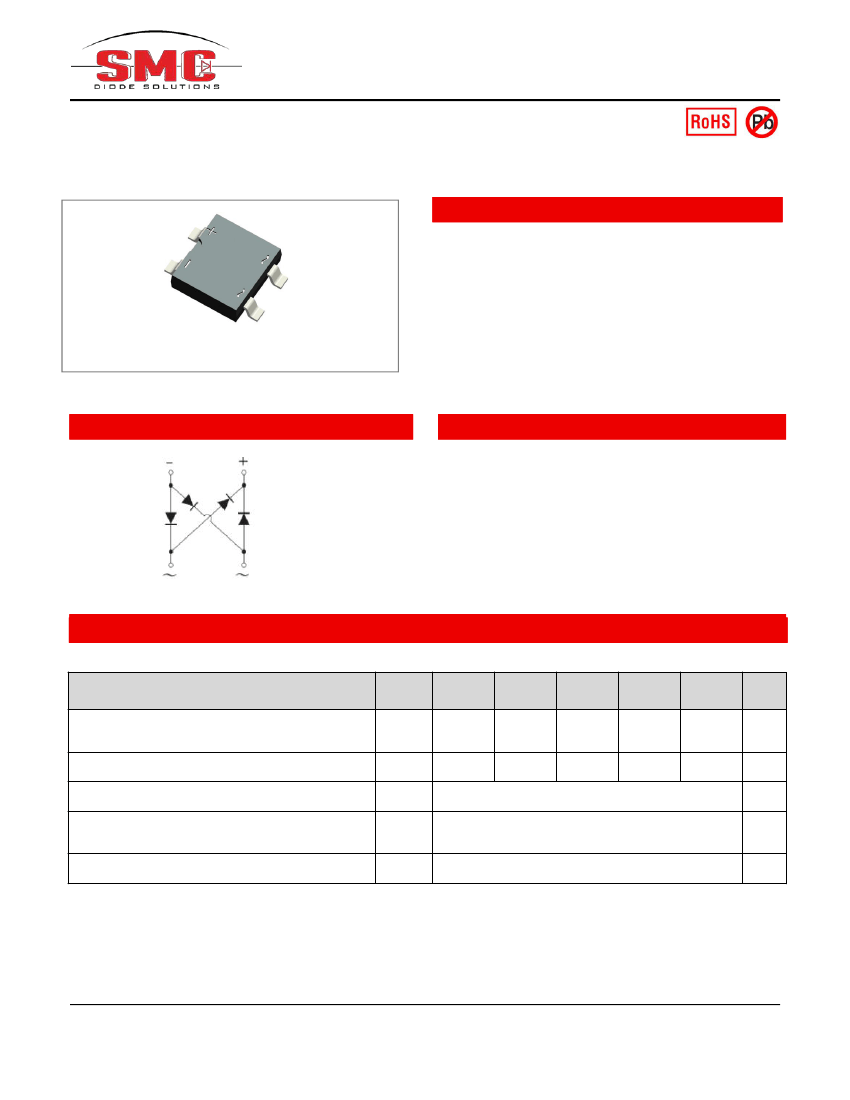

SINGLE PHASE 2.0A MP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Features
Glass passivated die construction
Low forward voltage drop
High current capability
High surge current capability
Designed for surface mount application
Plastic material-UL flammability 94V-0
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
ABS22 THRU ABS210
ABS
Circuit Diagram
Mechanical Data
Case: SOPA-4, Molded plastic ABS
Terminals: Plated leads solderable per MIL-STD-202,
Method 208
Polarity: as marked on case
Mounting Position: Any
Maximum Ratings
@T
A
=25°C unless
Characteristics
@T
A
=25°C unless otherwise specified
and Electrical
otherwise specified
Single Phase half wave 60Hz, resistive or inductive load. For capacitive load current derate by 20%.
Type Number
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current @T
C
=100°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on rated
load (JEDEC Method)
I
2
t Rating for Fusing (t < 8.3ms)
Symbol
V
RRM
V
RWM
V
DC
V
RMS
I
O
I
FSM
I
2
t
ABS22
200
140
ABS24
400
280
ABS26
600
420
2.0
60
15
ABS28
800
560
ABS210
1000
700
Unit
V
V
A
A
A
2
s
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
ABS22
THRU
ABS210
Technical Data
Data Sheet N1924, Rev. A
Electrical Characteristics:
Type Number
Forward Voltage (per element)
@I
F
=1.0A
@I
F
=2.0A
Peak Reverse Current
@T
A
= 25°C
At Rated DC Blocking Voltage @T
A
= 125°C
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F
I
R
ABS22
ABS24
ABS26
0.95
1.00
5.0
200
ABS28
ABS210
Unit
V
µA
Thermal-Mechanical Specifications:
Type Number
Typical Thermal Resistance (per leg)
Operating and Storage Temperature Range
Symbol
R
θJA
R
θJL
T
J
, T
STG
ABS22
ABS24
ABS26
62.5
25
-55 to +150
ABS28
ABS210
Unit
°C/W
°C

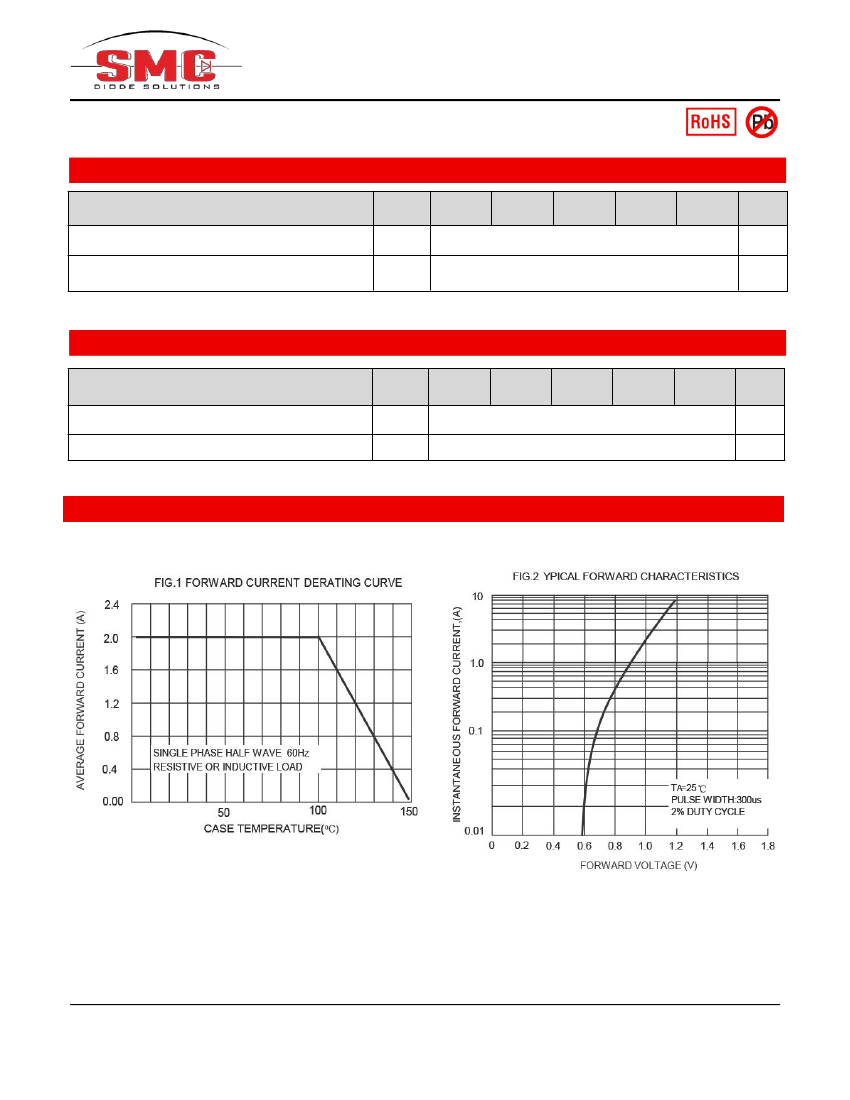

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
ABS22
THRU
ABS210
Technical Data
Data Sheet N1924, Rev. A

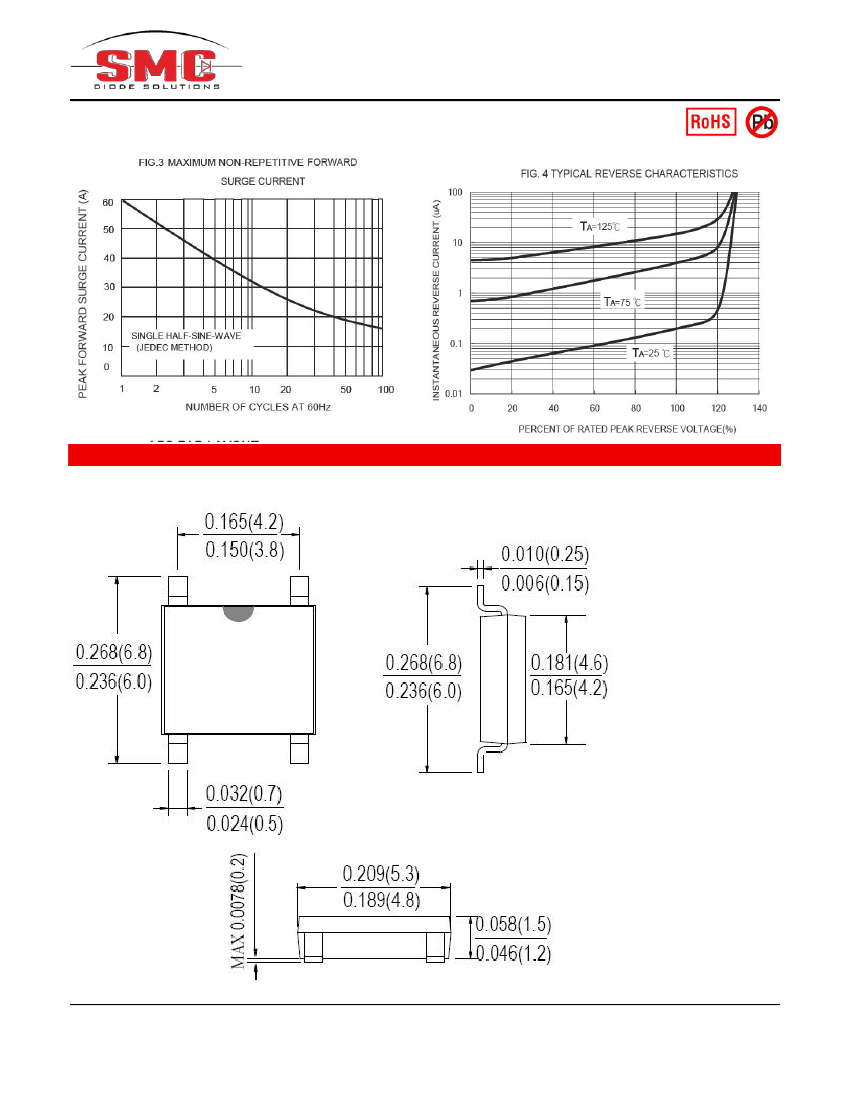

Mechanical Dimensions ABS(Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
ABS22
THRU
ABS210
Technical Data
Data Sheet N1924, Rev. A

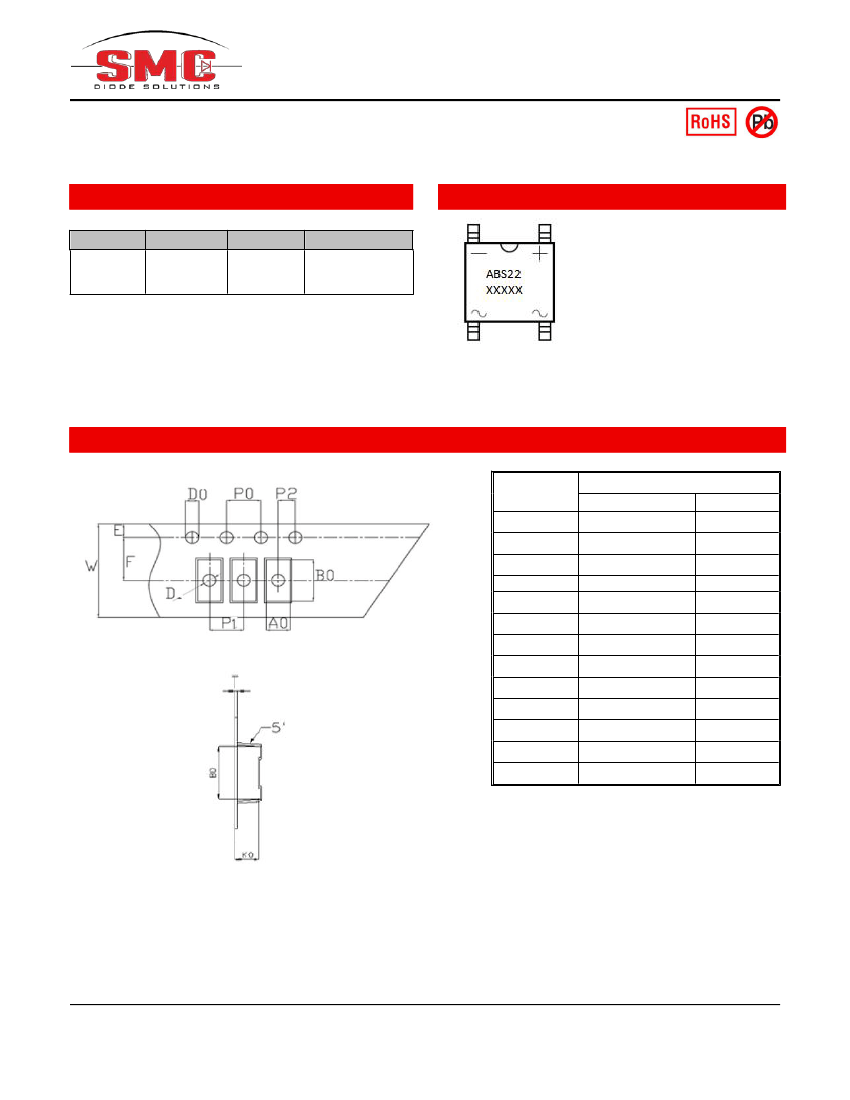

Ordering Information
Device
ABS22
THRU
ABS210
Marking Diagram
Shipping
5000pcs / reel
Where XXXXX is YYWWL
ABS22
YY
WW
L
= Type Number
= Year
= Week
= Lot Number
Package
ABS
(Pb-Free)
Plating
Pure Sn
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
Carrier Tape & Reel Specification ABS
SYMBOL
A0
B0
D0
D1
P0
P1
P2
E
K0
F
W
T
10P0
Millimeters
Min.
Max.
5.41
5.21
7.10
1.50
1.40
3.90
7.90
1.95
1.65
1.55
5.45
11.90
0.24
39.80
7.30
1.60
1.60
4.10
8.10
2.05
1.85
1.75
5.55
12.10
0.30
40.20
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
ABS22
THRU
ABS210
Technical Data
Data Sheet N1924, Rev. A
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of
the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall
SMC Diode Solutions
be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s).
SMC Diode Solution
assumes no responsibility for any intellectual property
claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall
SMC Diode Solutions
be liable for any failure in a semiconductor device or any secondary damage resulting from use
at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or
SMC Diode Solutions.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
SMC
Diode Solutions.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations..
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
