BXRC-35E2000-C-02 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> BXRC-35E2000-C-02

BXRC-35E2000-C-02: DescriptionLED ARRAY 2000LM WARM WHITE; CategoryLED optoelectronic/LED; File Size668KB，17 Pages; ManufacturerBridgelux; Environmental Compliance

Download Datasheet Parametric Compare View All

BXRC-35E2000-C-02 Overview

LED ARRAY 2000LM WARM WHITE

BXRC-35E2000-C-02 Parametric

Parameter Name	Attribute value
type	Chip on Board (COB)
color	white, warm color
CCT（K）	3500K 2nd order MacAdam ellipse
wavelength	-
Configuration	round head
Flux@Current/Temperature-Test	1778 lm (standard)
Current - Test	500mA
Temperature - Test	85°C
Voltage - Forward (Vf) (Typical)	31.5V
Lumens/Watt at different test currents	113 lm/W
Current - maximum	1.05 A
CRI (high color rendering index)	80
perspective	120°
characteristic	with connector
size/dimensions	36.20mm diameter
high	1.90mm
Luminous surface (LES)	13.20mm diameter
Lens type	flat

Preview

Download Datasheet

View All

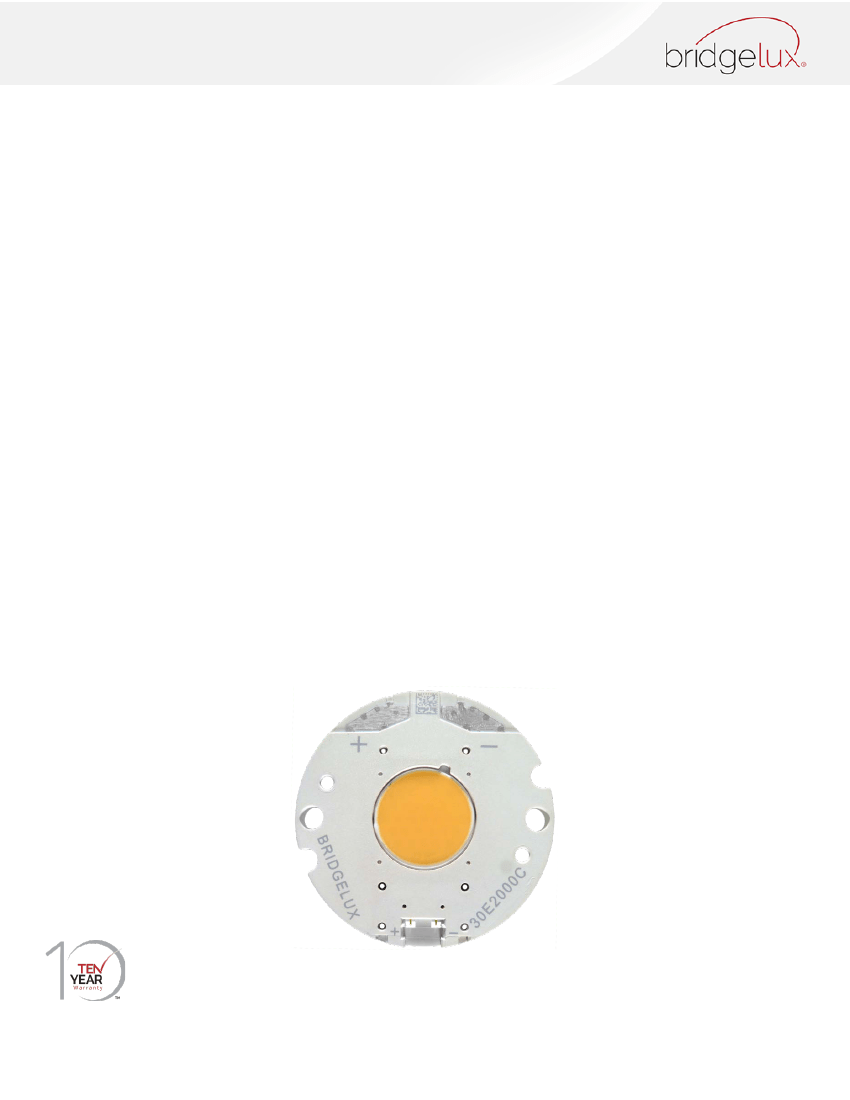

Bridgelux Vero 13 Array Series

Product Data Sheet DS31

BXRC-27x2000, 30x2000, 35E2000, 40x2000, 50x2000

Introduction

Vero represents a revolutionary advancement in chip on board (COB) light source technology and innovation. These new LED light

sources simplify luminaire design and manufacturing processes, improve light quality, and define a platform for future functionality

integration.

Vero is available in four different LES (light emitting surface) configurations and has been engineered to reliably operate over a

broad current range, enabling new degrees of flexibility in luminaire design optimization. These new arrays deliver increased lumen

density to enable improved beam control and precision lighting with 2 and 3 SDCM color control standard for clean and consistent

uniform lighting.

Vero includes an on board connector port to enable solder free electrical interconnect and simple easy to use mounting features to

enable plug-and-play installation.

Features

•

Market leading efficacy of 120 lm/W typical and 110 lm/W minimum

Vero 13 lumen output performance ranges from 500 to as much as

4,400 lumens

Broad range of CCT options from 2700K to 5000K

CRI options include; minimum 70, 80, and 90

2 and 3 SDCM color control for 2700K-4000K CCT

Reliable operation at up to 2X nominal drive current

Radial die pattern and improved lumen density

Thermally isolated solder pads

Onboard connector port

Top side part number markings

Benefits

•

Broad application coverage for interior and exterior lighting

Flexibility for application driven lighting design requirements

High quality true color reproduction

Uniform consistent white light

Flexibility in design optimization

Improved optical control

Enhanced ease of use and manufacturability

Solder-less connectivity enables plug & play installation and field

upgradability

Improved inventory management and quality control

•

101 P ort ol a A v enue, Li v erm ore, C A 94551 • T el : (925 ) 583 -84 0 0 • Fa x: (92 5) 58 3- 8 4 01 • ww w. b ri dgel u x. c om

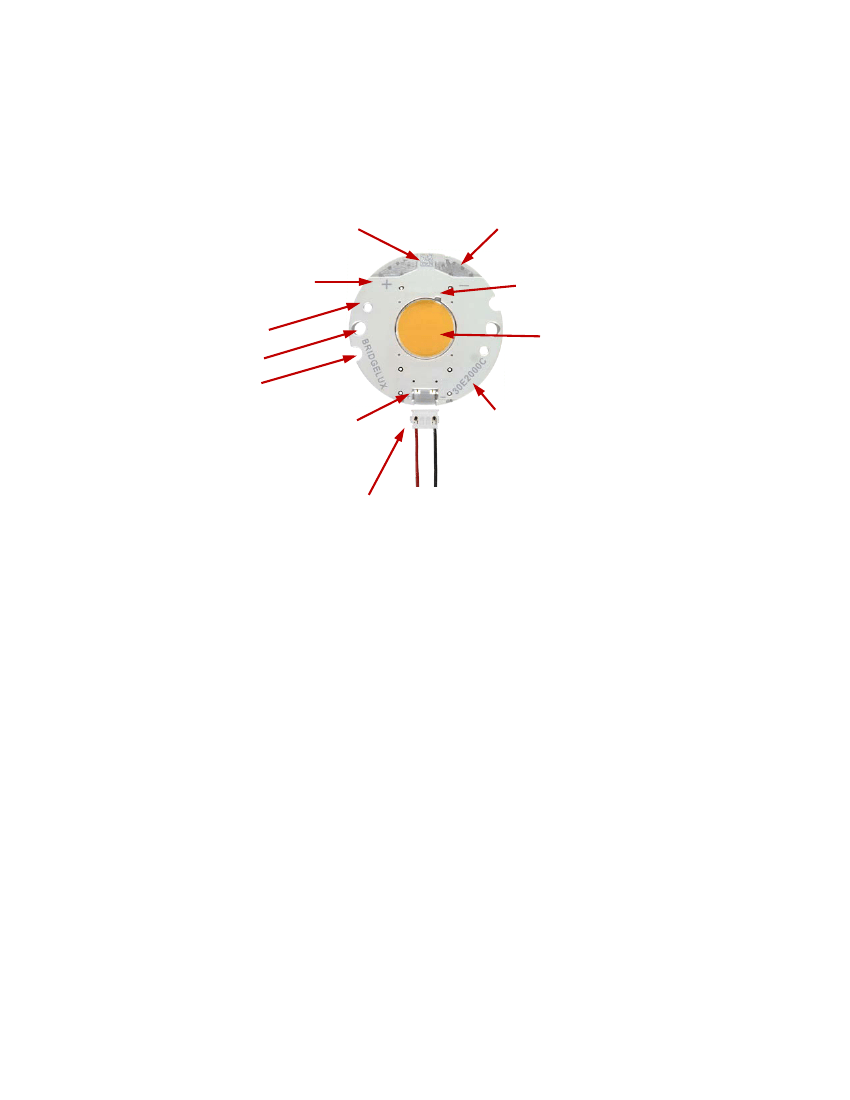

Top Side Part Number Markings

Vero includes a top side part number marking to help simplify inventory management and increase opportunities for production

quality control. Any Vero product can be quickly identified to determine the product configuration, color or CRI by simply looking at

its top side markings. Unlike previous product generations where markings were included only on the back side of the array, no

longer is it necessary to handle (turnover), uninstall the array in an infield application or guess which product it is by the color of the

phosphor area. The Vero line of LED array products also has a 2D bar code which provides additional information and full product

traceability for quality control purposes.

Enhanced Connectivity Options

Vero’s thermally isolated solder pads have been designed to make soldering fast and secure. For those who prefer an even faster

solderless installation, Vero has a connector port that can be used to further simplify your manufacturing process, reduce inventory

cost and allow for field upgradability. The connector port mates to the Molex Pico-EZmate connector harness, sold separately by

Molex and through their distribution network. The Molex connector harnesses come in a variety of wire lengths and wire gauge

options and can also be custom engineered to meet your specific design requirements. Please consult your local Molex sales

representative or visit

www.molex.com

for more information.

Lumen Maintenance Characteristics

Bridgelux projects that the Vero 13 family of LED array products will deliver, on average, greater than 70% lumen maintenance after

50,000 hours of operation at two times the nominal drive current in Table 1. This performance assumes constant current operation

at up to 2 times the nominal drive current with case temperature maintained at or below 85°C. Continuous use beyond five years

may result in a lower lumen maintenance. For use beyond these operating conditions please consult your Bridgelux sales

representative for further assistance.

These projections are based on a combination of package test data, semiconductor chip reliability data, a fundamental

understanding of package related degradation mechanisms, and performance observed from products installed in the field using

Bridgelux die technology. Bridgelux conducts lumen maintenance tests per LM-80. Observation of design limits is required in order

to achieve this projected lumen maintenance.

Environmental Compliance

Bridgelux is committed to providing environmentally friendly products to the solid-state lighting market. Vero LED Arrays comply

with the European Union directives on the restriction of hazardous substances in electronic equipment, namely the RoHS directive.

Bridgelux does not intentionally add the following restricted materials to any LED array products: lead, mercury, cadmium,

hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated diphenyl ethers (PBDE).

UL Recognition

Bridgelux secures UL Recognition for all of its LED array products. Please refer to the UL file 357031 for the latest list of UL

Recognized Bridgelux LED arrays. Bridgelux uses UL Recognized materials with suitable flammability ratings in the Vero LED array

products to streamline the process for customers to secure UL listing of the final luminaire product.

Bridgelux Vero 13 Array Series Product Data Sheet DS31 (4/21/2014)

Page

CE Recognition

In accordance with the relevant European Union Directives, the BXRC series LED array products conform to the applicable

requirements of the IEC/EN 62031:2008 (LED Modules for General Lighting Safety Specifications) and IEC 62471:2006

(Photobiological Safety of Lamps and Lamp Systems). Bridgelux maintains a CE Declaration of Conformity statement on its website

and displays the CE mark on product packing labels.

Minor Product Change Policy

The rigorous qualification testing on products offered by Bridgelux provides performance assurance. Slight cosmetic changes that do

not affect form, fit, or function may occur as Bridgelux continues product optimization.

Case Temperature Measurement Point

A case temperature measurement point location is included on the top surface of the Vero LED arrays. The location of this

measurement point is indicated in the mechanical dimensions section of this data sheet.

The purpose of this measurement point is to allow the user access to a measurement point which correlates to the true case

temperature on the back surface of the LED array. Once the LED array is installed, it is challenging to measure the back surface of

the array, or true case temperature.

Consistent and repeatable temperature measurements can be correlated to the data sheet performance specifications and to

published LM-80 reliability data. The use of the case temperature measurement point is fully explained in AN30.

CAUTION: CONTACT WITH LIGHT EMITTING SURFACE (LES)

Avoid any contact with the LES. Do not touch the LES of the Vero LED array or apply stress to the LES (yellow phosphor resin area).

Contact may cause damage to the LED array.

Optics and reflectors must not be mounted in contact with the LES (yellow phosphor resin area). Optical devices may be mounted

on the top surface of the plastic housing of the Vero LED array. Use the mechanical features of the LED array housing, edges and/or

mounting holes to locate and secure optical devices as needed.

CAUTION: CHEMICAL EXPOSURE HAZARD

Exposure to some chemicals commonly used in luminaire manufacturing and assembly can cause damage to the LED array. Please

consult Bridgelux Application Note AN31 for additional information.

CAUTION: EYE SAFETY

Eye safety classification for the use of Bridgelux Vero LED arrays is in accordance with IEC specification EN62471: Photobiological

Safety of Lamps and Lamp Systems. Vero LED arrays are classified as Risk Group 1 (Low Risk) when operated at or below the

maximum drive current. Please use appropriate precautions. It is important that employees working with LEDs are trained to use

them safely.

CAUTION: RISK OF BURN

Do not touch the Vero LED array or yellow resin area during operation. Allow the array to cool for a sufficient period of time before

handling. The Vero LED array may reach elevated temperatures such that could burn skin when touched.

Bridgelux Vero 13 Array Series Product Data Sheet DS31 (4/21/2014)

Page

BXRC-35E2000-C-02 Related Products

	BXRC-35E2000-C-02	BXRC-27E2000-C-02	BXRC-27G2000-C-02	BXRC-30E2000-C-02	BXRC-30G2000-C-02	BXRC-40E2000-C-02	BXRC-40G2000-C-02
Description	LED ARRAY 2000LM WARM WHITE	LED ARRAY 2000LM WARM WHITE	LED ARRAY 2000LM WARM WHITE	LED ARRAY 2000LM WARM WHITE	LED ARRAY 2000LM WARM WHITE	LED ARRAY 2000LM NEUTRAL WHITE	LED ARRAY 2000LM NEUTRAL WHITE
type	Chip on Board (COB)	Chip on Board (COB)	Chip on Board (COB)	Chip on Board (COB)	Chip on Board (COB)	Chip on Board (COB)	Chip on Board (COB)
color	white, warm color	white, warm color	white, warm color	white, warm color	white, warm color	white, natural	white, natural
CCT（K）	3500K 2nd order MacAdam ellipse	2700K 2nd order MacAdam ellipse	2700K 2nd order MacAdam ellipse	3000K 2nd order MacAdam ellipse	3000K 2nd order MacAdam ellipse	4000K 2nd order MacAdam ellipse	4000K 2nd order MacAdam ellipse
Configuration	round head	round head	round head	round head	round head	round head	round head
Flux@Current/Temperature-Test	1778 lm (standard)	1640 lm (standard)	1310 lm (standard)	1697 lm (standard)	1385 lm (standard)	1822 lm (standard)	1575 lm (standard)
Current - Test	500mA	500mA	500mA	500mA	500mA	500mA	500mA
Temperature - Test	85°C	85°C	85°C	85°C	85°C	85°C	85°C
Voltage - Forward (Vf) (Typical)	31.5V	30.8V	30.8V	31.5V	31.5V	31.5V	31.5V
Lumens/Watt at different test currents	113 lm/W	106 lm/W	85 lm/W	108 lm/W	88 lm/W	116 lm/W	100 lm/W
Current - maximum	1.05 A	1.05 A	1.05 A	1.05 A	1.05 A	1.05 A	1.05 A
CRI (high color rendering index)	80	80	90	80	90	80	90
perspective	120°	120°	120°	120°	120°	120°	120°
characteristic	with connector	with connector	with connector	with connector	with connector	with connector	with connector
size/dimensions	36.20mm diameter	36.20mm diameter	36.20mm diameter	36.20mm diameter	36.20mm diameter	36.20mm diameter	36.20mm diameter
high	1.90mm	1.90mm	1.90mm	1.90mm	1.90mm	1.90mm	1.90mm
Luminous surface (LES)	13.20mm diameter	13.20mm diameter	13.20mm diameter	13.20mm diameter	13.20mm diameter	13.20mm diameter	13.20mm diameter
Lens type	flat	flat	flat	flat	flat	flat	flat
