SMA FEMALE
PER MIL-STD-348
FIGURE 310-2
EST MICRO
0263-XX-SM
B DC-18.0 G
SMA MALE
PER MIL-STD-348
FIGURE 310-1
1.20
NOTES: UNLESS OTHERWISE SPECIFIED.
1. MATERIAL & FINISH:
1.1 HOUSING, BARREL & COUPLING NUT: PASSIVATED
STAINLESS STEEL
1.2 DIELECTRIC: PTFE (TEFLON)
1.3 CENTER CONTACT: GOLD PLATED BERYLLIUM COPPER
1.3 GASKET: SILICONE RUBBER
2. ELECTRICAL SPECIFICATIONS:
2.1 FREQUENCY RANGE: DC - 18.0 GHz
2.2 ATTENUATION VALUES AND ACCURACY
2.2.1 0 dB +0.3 dB
2.2.2 1 TO 10 dB
u
0.3 dB
2.2.3 11 TO 20 dB
u
0.5 dB
2.2.4 21 TO 30 dB
u
1.0 dB
2.3 VSWR (MAX): 1.07+.015f(GHz)
2.4 MAXIMUM INPUT POWER:
2.4.1 AVERAGE: 2 WATTS AT +25
v
C DERATED LINEARLY TO
0.5 WATTS AT +125
v
C
2.4.2 PEAK: 200 WATTS FOR A DUTY CYCL OF 5 X 10^-4,
MAX PULSE DURATION OF 5 MICROSECONDS.
3. OPERATING TEMPERATURE RANGE: -65
v
C TO +125
v
C
Model No.
ATT-0263-XX-SMA-02
RoHS2
This PROPRIETARY
Document is property of
Cinch Connectivity Solutions.
It is confidential in nature,
non-transferable, and issued
with the clear understanding
that it is not traced or copied
without permission and is
returnable upon demand.
INTERPRET DRAWING IN
ACCORDANCE WITH ASME
Y14.5-2009.
MIDWEST MICROWAVE
Title:
Cage Code
34078
3RD ANGLE PROJECTION
2011/65/EU
UNLESS OTHERWISE SPECIFIED:
UNITS: INCH

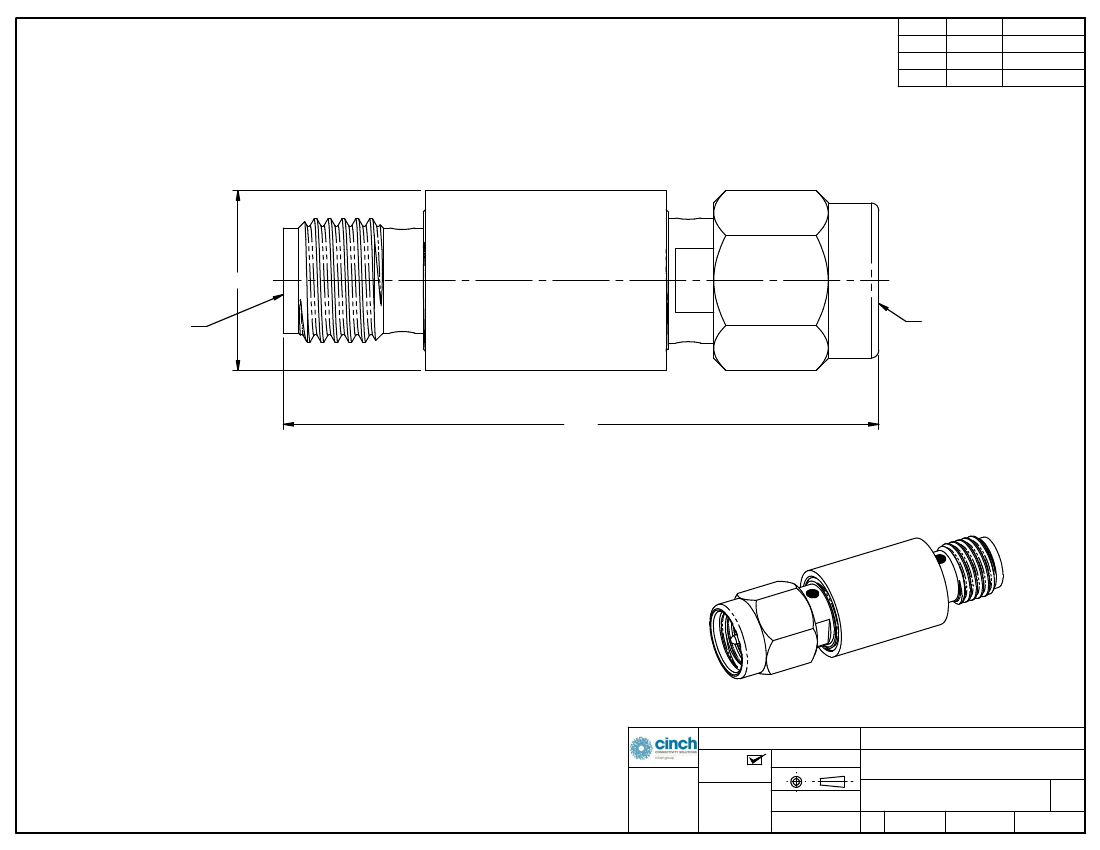

ATTENUATOR, 0-30 dB
Drawing No.
Rev.
.XX
u
.02
.XXX
u
.005
ANGLES
u
1
v
Drawn by:
C. WALLACE
Date:
Size
ATT-0263-XX-SMA-02-01
A
DO NOT SCALE
DRAWING
Workmanship Std:
J
10/13/2014
NONE
Sheet 1 of 1
