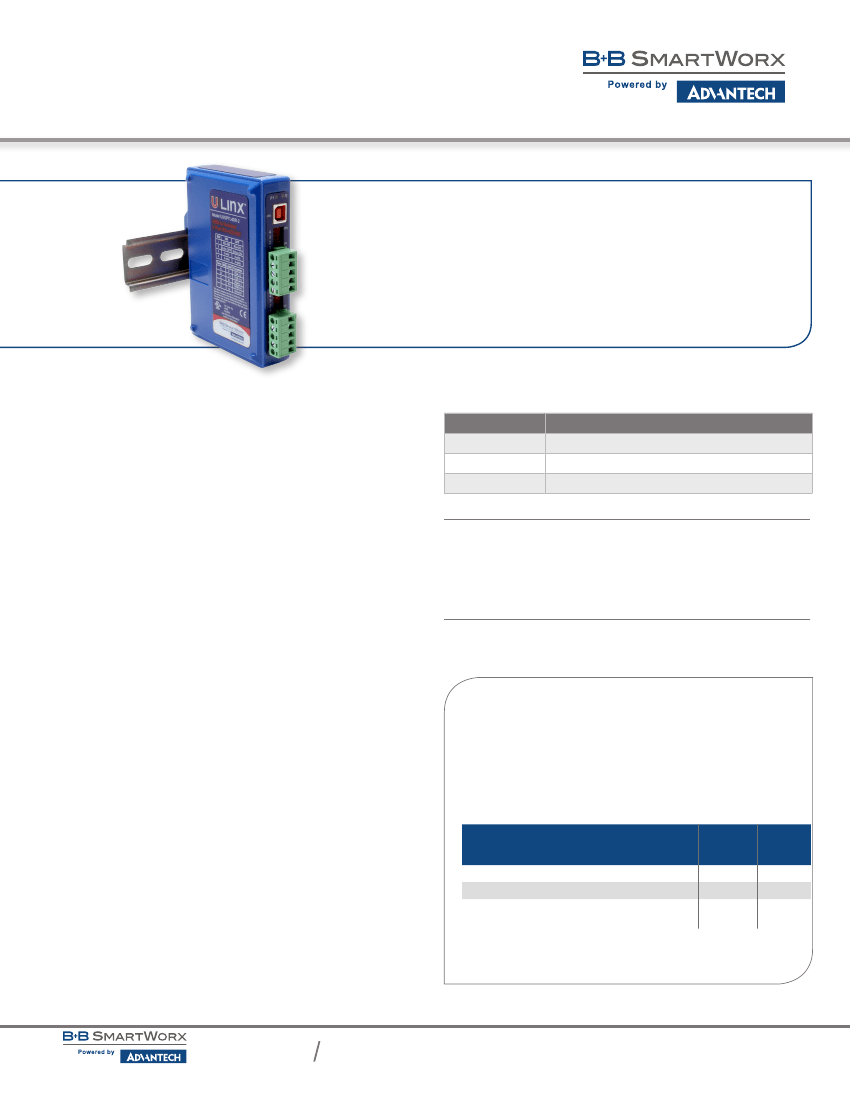

Isolated USB to RS-422/485
Converters
USOPTL4DR-xx
www.advantech-bb.com
PRODUCT FEATURES
• 3000 Volts optical isolation
• 15 KV ESD protection
• USB bus powered
• RS-422/485 data rates up to 921.6 Kbps
• High retention USB connector
• Removable terminal blocks
• DIN rail mount (panel mount option)
Universal Serial Bus (USB) has become the connectivity workhorse of today’s
PCs, replacing the familiar serial port. However, many commercial and industrial
devices still use serial interfaces. To connect these devices to modern PCs, you
need a simple and reliable conversion solution.
The USOPTL4DR-xx series offers this solution. Specifically designed for
industrial applications, they offer 3000V optical isolation with 15 KV ESD
protection. The slim-line DIN rail mountable enclosure has a small footprint and,
since it draws power from your computer’s USB bus, an additional power supply
is not required. Simply plug the converter into an available USB port on your
computer or USB hub and install the drivers supplied on CD ROM. The device
will show up as an additional COM port in the Windows Device Manager which is
fully compatible with your Windows applications.
One and two port versions are available. The single port version is also available
with a “locked serial number” that allows you to interface your PC with multiple
converters without having to load a driver for each one - perfect for field service
applications. A one meter USB cable is included.
ORDERING INFORMATION
MODEL NUMBER
USOPTL4DR
USOPTL4DR-2
USOPTL4DR-LS
DESCRIPTION
Isolated USB to RS-422/485 Converter, 1 port
Isolated USB to RS-422/485 Converter, 2 port
Locked Serial Number version of USOPTL4DR
ACCESSORIES
USBAMBM-3F
- 1 m (3 ft.) USB cable (one included)
DRPM25
- Panel mount adapter
TB5P508SR-2PK
- Optional terminal block with strain relief, 2 pack
7466
- Standard terminal block replacement (Unit comes with one or two factory installed
depending on model number.)
Locked Serial Numbers Explained
We configure our single-port USB to serial converters in two ways. In standard format,
each product has a unique serial number. “Locked serial” format uses the same serial
number that is associated with a model type.
If your converter will always be used with the same computer, the standard serialized
model is all you need. If the converter is shared among several computers, like field
service laptops, the locked serial number model lets you plug and play without having
to worry about matching the two.
Locked
Serial
Number
-
✔
Description
Every unit is assigned a unique COM port
Same type model numbers shares the same COM port
Ideal applications
Serialized
✔
-
Fixed
Locations
Field
Service
When ordering Locked Serial Number versions, add a “-LS” to the item number. Serialized
and Lock Serial Number versions sell for the same price.
All product specifications are subject to change without notice.
USOPTL4DR-xx_3916ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Isolated USB to RS-422/485
Converters
USOPTL4DR-xx
SPECIFICATIONS
SERIAL TECHNOLOGY
RS-485 2-Wire
RS-485 4-Wire
Connector
Data Rate
Isolation
Surge Protection
USB TECHNOLOGY
USB Compatibility
USB Data Rate
Connector
Driver CD
POWER
Source
Input Voltage
Consumption
MECHANICAL
Dimensions
Enclosure
Weight
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Operating Humidity
MTBF USOPTL4DR
MTBF USOPTL4DR-2
MTBF Calc. Method
Data A(-), Data B(+), Ground
TDA(-), TDB(+), RDA(-), RDB(+), Ground
Removable terminal block, 12 to 28 AWG
Up to 921.6 Kbps
3000 V optical isolation
15 KV ESD
2.0 (backward compatible)
12 Mbps
Type B female, high retention
(15 Newtons / 3.4 lbs-force withdrawal)
Windows 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)
USB port
5 VDC
~2.5 W (high power device, draws >500 mA
9.7 x 11.9 x 3.1 cm (3.8 x 4.7 x 1.2 in)
DIN rail mountable, plastic
222.3 g (0.49 lbs) with USB cable
0 to 70°C (32 to 158°F)
-40 to 85°C (-40 to 185°F)
0 to 95% Non-condensing
184,556 hours
79,551 hours
Parts Count Reliability Prediction
APPROVALS / CERTIFICATIONS
Emissions FCC Class B, CISPR Class B (EN55022)
Generic Standards for Residential, Commercial and
CE
EN 61000-6-1
Light-Industrial Environments
EN 61000-4-2
Electro-Static Discharge (ESD)
EN 61000-4-3
+A1 +A2 +IS1 Radiated Field Immunity (RFI)
EN 61000-4-4
Electrical Fast Transients-Burst Immunity (EFT)
EN 61000-4-6
Conducted Immunity
INFORMATION – FCC RULES
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may cause undesired operation.
TERMINAL BLOCK
The terminal block layout is top to bottom (as viewed
from a DIN rail installation). The signal names on the front
label are only visible when the terminal block is removed.
The USOPTL4DR-2 has two terminal blocks. In both
configurations, the TB layout is the same.
TB POSITION
A
B
C
D
E
LABEL
T-
T+
R-
R+
G
FUNCTION
TDA(-)
TDB(+)
RDA(-)
RDA(+)
Ground

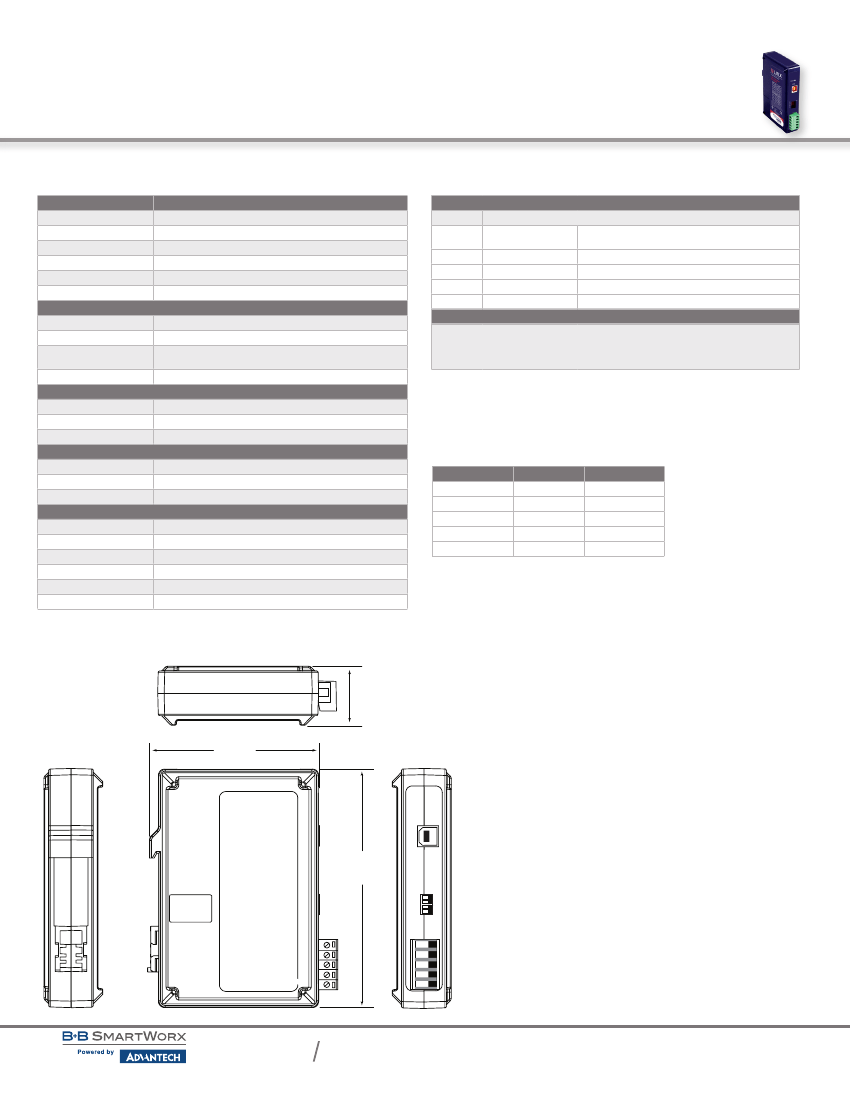

MECHANICAL DIAGRAM
3.1 cm
1.2 in
9.7 cm
3.8 in
11.9 cm
4.7 in
1
2
3
4
ON
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
