Vlinx ™ Ultra Compact Modbus Gateways
Modbus TCP Ethernet, Modbus ASCII & RTU RS-232/422/485
Modbus Flexibility
–
Serial & Ethernet, Masters & Slaves
View Messaging Status in Real Time
Wide Operating Temperature (-40 to 80C)
Wide Voltage input 10 to 30 VDC
Ultra Compact IP30 Metal Enclosure
Heavy industrial 61000-6-2 EMC Level 3 tested for harsh environments
MESP211

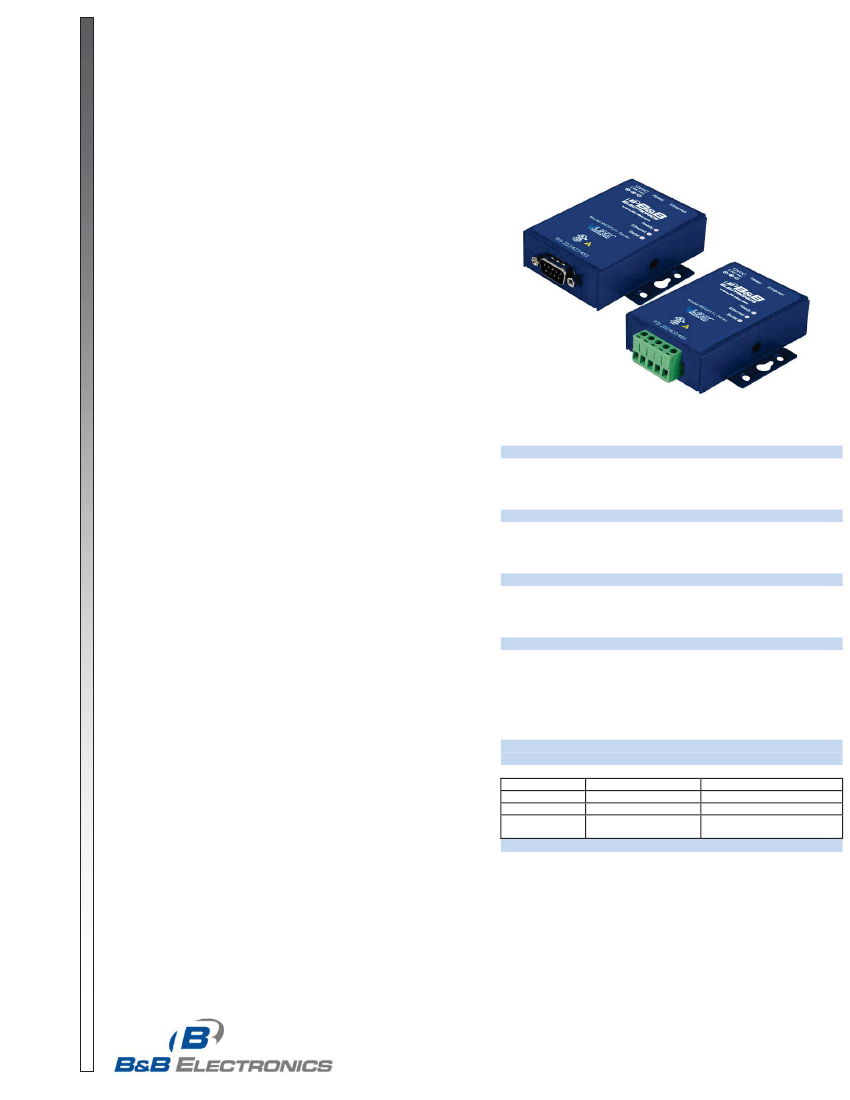

Vlinx™ MESP211 series Modbus Gateways connect
Modbus devices to Ethernet networks and let you
monitor and control your Modbus devices from
anywhere on the Ethernet LAN or WAN. Supporting up
to 16 masters and 32 slaves, the gateways feature an
auto-detecting 10/100 Ethernet copper RJ-45 port and
a serial port that supports RS-232/422/485
communications via a DB9 male or a terminal block
connection. The product is built for use in industrial
environments, featuring a heavy duty metal enclosure
that is panel (standard) or DIN rail mountable (with
optional adapters). The product is supplied with a DC
power source ranging from 10 to 30VDC and features
a barrel connector.
Ease of Use
Configuration, upgrades and monitoring of the serial
server are simple, easy tasks with Vlinx Manager
Software. It installs right on your PC giving you access
the serial server via your desktop. Remotely manage
the Modbus Gateway over a LAN or WAN via the
build-in web server. This is helpful for off-site
troubleshooting and can be done with a simple web
browser.
Specifications
Power
Source
External power supply included
Input Voltage
10 to 30 VDC
Connector
Barrel connector 5.5 x 2.1mm
Power Consumption
2.5 W
Mechanical
LED Indicators
Serial Port, Ethernet Link, Ready LEDs
Switches
Reset Button
Dimensions
3.1 x 0.9 x 2.0 (with ears 2.89) inches
Enclosure
Metal, IP 30
Environmental
Operating Temperature -40 to 80°C (-40 to 176° F)
Operating Humidity
10 to 95% Non-condensing
MTBF
186,310 hours
MTBF Calc Method
Parts Count Reliability Prediction
Network
Serial Memory
8 KB per port
Network Memory
4 KB
IP Port Addresses
Setting in TCP Mode 8899
10/100 Mbps Auto-detecting , 10BaseT or
LAN
100BaseTX
IEEE 802.3 auto detecting & auto
Ethernet
MDI/MDX, 10BaseT and 100Base TX
Ordering Information
Model
Serial port
Serial connector
Ethernet port
Ethernet
connector
PRODUCT INFORMATION
MESP211D
RS-232/422/485
DB9 Male
1
RJ45
MESP211T
RS-232/422/485
Removable terminal block
1
RJ45
MDR-40-24
DRAD35
232NM9
TB5P508SR-2PK
Accessories
Din Rail Mount, 24VDC, 40 W
Din Rail Adapter Clip (pair)
Null Modem Crossover Cable
Replacement terminal block for the
MESP211T
www.bb-elec.com
orders@bb-elec.com support@bb-elec.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Specifications
RS-232 (DB9)
RS-232 (Terminal Block)
RS-485 2-Wire
RS-422/485 4-Wire
Serial Connector
Data Rate
Protocols
IP Mode
TCP/UDP
UDP
Connection Mode
Search
Diagnostics
Firmware Upgrade
Modbus Monitor
OS Compatibility
Serial Technology
TD, RD, DTR, DSR, RTS, CTS, DCD, Signal Ground
TD, RD, RTS, CTS, Signal Ground
Data A(-), Data B(+), GND
TDA(-), TDB(+), RDA(-), RDB(+), GND
DB9M or Removable Terminal Blocks
Up to 230.4 Kbps
Protocols
TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING, DHCP/BOOTP
Static, DHCP
User definable
Unicast or Multicast
Other
MODBUS RTU Master / Slave, MODBUS ASCII Master/Slave
Serial direct COM and Ethernet Auto Search or specific IP
Display PC IP, ping, save test config (text readable)
Firmware can be updated through the manager software
The Manager Software has a Modbus Monitor feature
Configuration Software
XP (32/64), Vista (32/64), Windows 7 (32/64), Windows 8 (32/64), Server 2003 (32/64), Server 2008 (32/64),
Server 2012 (64)
Approvals / Certifications
Emissions
CE
FCC Class B, CISPR Class A (EN55022)
EN61000-6-2:2005
EN61000-4-2:2008
EN61000-4-3:2006
EN61000-4-4:2004
EN61000-4-5:2005
EN61000-4-6:2005
EN61000-4-8:2001
Shock
Vibration
Freefall (Drop)
IEC60068-2-27
IEC60068-2-6
IEC60068-2-32
(Heavy Industrial)
(ESD)
(RI)
(EFT Burst)
(Surge)
(CI)
(Magnetic)
+/-8kV Contact, +/-15kV Air
10V/m, 80-1000MHz; 3V/m, 1.3 to 2.7 GHz
+/-2kV DC ports; +/-1kV signal ports
+/- 0.5 kV DC Ports, +/- 1 kV Signal Ports
10 VRMS, 0.15 to 80 MHz
10A/m, 50Hz & 60Hz
50G peak, 11ms, 3 axes
10-500Hz, 4G, 3 axes
10 total drops from sides, corner and edges, 1M
www.bb-elec.com
orders@bb-elec.com support@bb-elec.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
