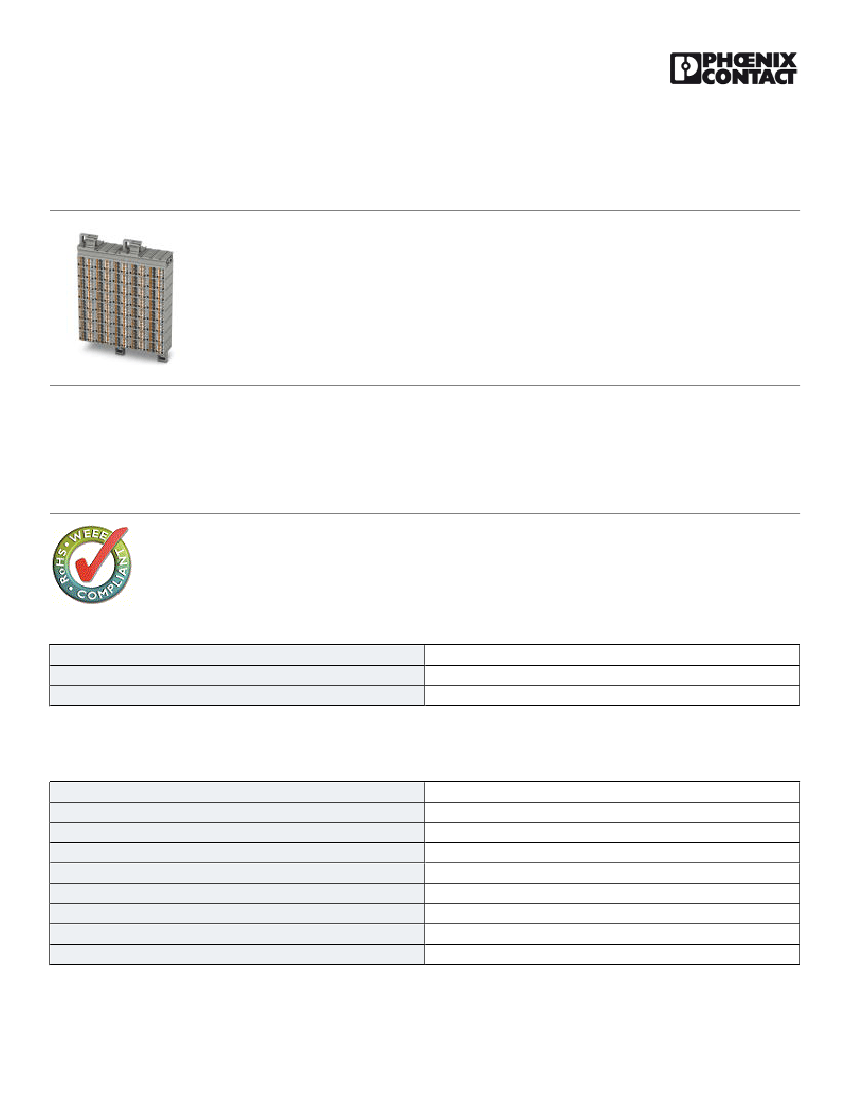

Marshalling patchboard - PTMC 1,5/80-3 19Z - 3270325
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Marshalling patchboard, Nom. voltage: 500 V, Nominal current: 17.5 A, Cross section: 0.14 mm² - 2.5 mm²,
AWG: 12 - 26, Connection type: Push-in connection, Number of positions: 80, Number of connections: 480,
Width: 110 mm, Length: 111 mm, Color: gray, Color of connection elements: gray/white, Assembly: Wall
mounting, 19" rack
Why buy this product
■
■
■
■
For mounting in 19" racks
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
Tool-free wiring in a confined space thanks to compact size
Clear representation of actuation and terminal points through vertical conductor routing
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 STK
85366990
Poland
Technical data
General
Note
Number of positions
Number of levels
Number of connections
Nominal cross section
Color
Color of connection elements
Insulating material
Flammability rating according to UL 94
Labeled from 1 - 80
80
1
480
1.5 mm²
gray
gray/white
PA
V0
08/08/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/3270325
Marshalling patchboard - PTMC 1,5/80-3 19Z - 3270325
Technical data
General
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum load current
4 kV
3
III
I
22 A (With a conductor cross section of 2.5 mm² and extensive wiring)
12 A (With a conductor cross section of 2.5 mm² and wiring in a confined
space)
Nominal current I
N
Nominal voltage U
N
Open side panel
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
17.5 A
500 V
No
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Dimensions
Width
Length
Height
110 mm
111 mm
30 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Push-in connection
IEC 60947-7-1
0.14 mm²
2.5 mm²
26
12
08/08/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/3270325
Marshalling patchboard - PTMC 1,5/80-3 19Z - 3270325
Technical data
Connection data
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
8 mm ... 10 mm
A1
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Drawings
Circuit diagram
Dimensional drawing
111
+1
Panel cutout
112
+1
08/08/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/3270325
Marshalling patchboard - PTMC 1,5/80-3 19Z - 3270325

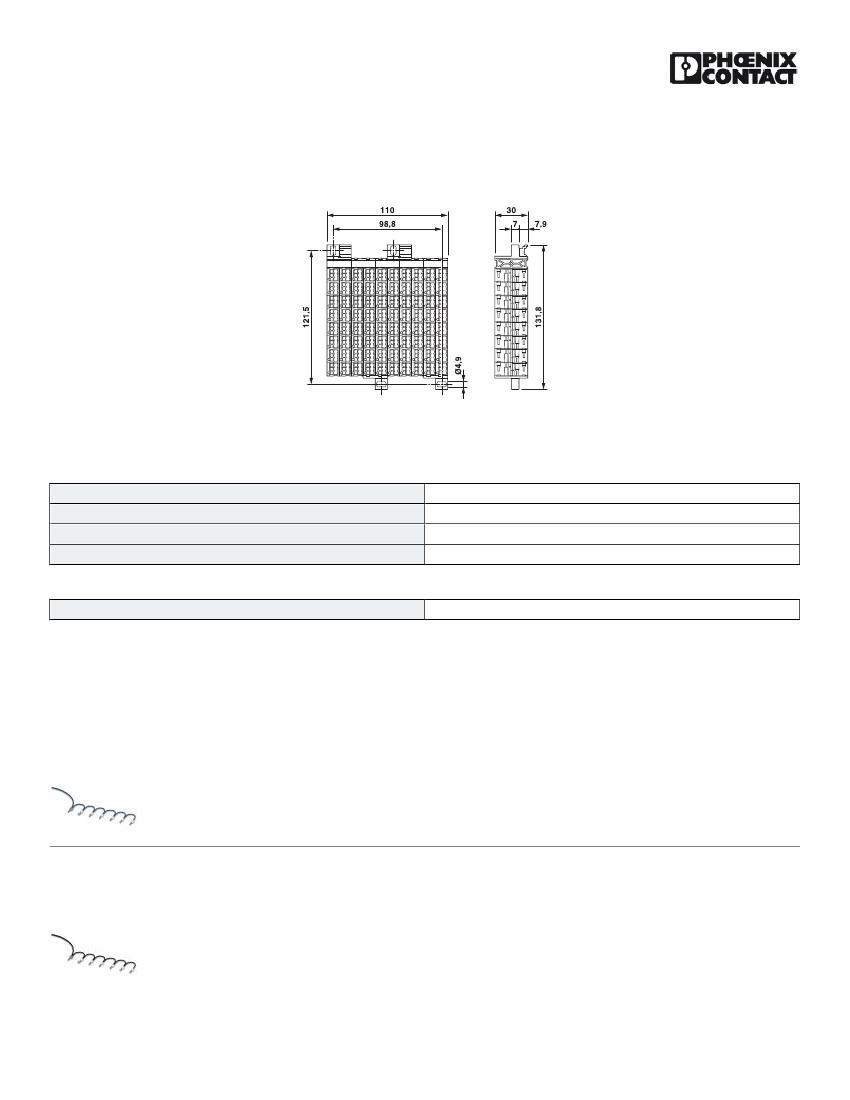

Dimensional drawing
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27141124
27141124
27141120
27141120
ETIM
ETIM 5.0
EC000897

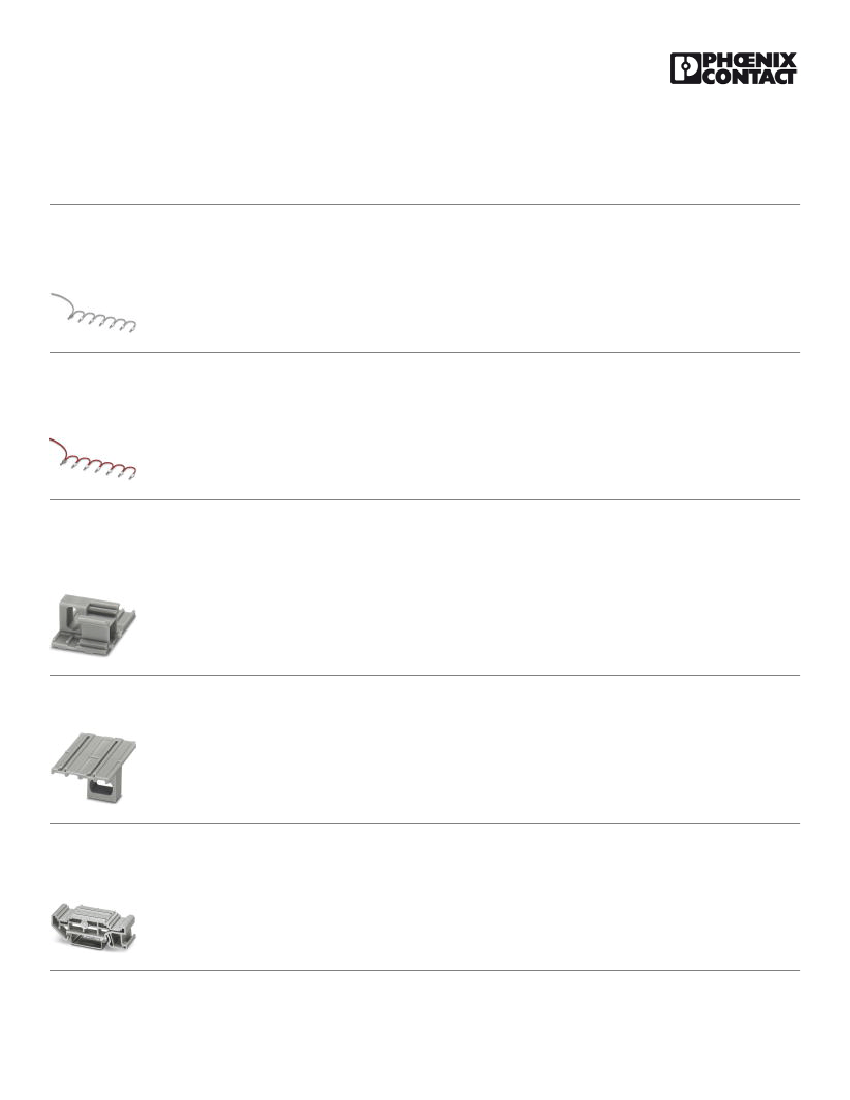

Accessories
Accessories
Bridge
Wire bridge - DB 50- 90 BU - 2821180
Wire bridge, Color: blue
Wire bridge - DB 50- 90 BK - 2820916
Wire bridge, Color: black
08/08/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/3270325
Marshalling patchboard - PTMC 1,5/80-3 19Z - 3270325
Accessories
Wire bridge - DB 50- 90 GY - 2820929
Wire bridge, Color: gray
Wire bridge - DB 50- 90 RD - 2864639
Wire bridge, Color: red
Mounting material
Flange cover - DF-PTMC-O - 3270400
Flange cover, for direct mounting above, Length: 30 mm, Width: 22 mm, Height: 13 mm, Color: gray
Flange cover - DF-PTMC-U - 3270401
Flange cover, for direct mounting below, Length: 29.1 mm, Width: 22 mm, Height: 12.8 mm, Color: gray
Adapter - DF-PTMC-NS - 3270403
Adapter, for mounting on a DIN rail, Length: 64 mm, Width: 22 mm, Color: gray
08/08/2016 Page 5 / 6
