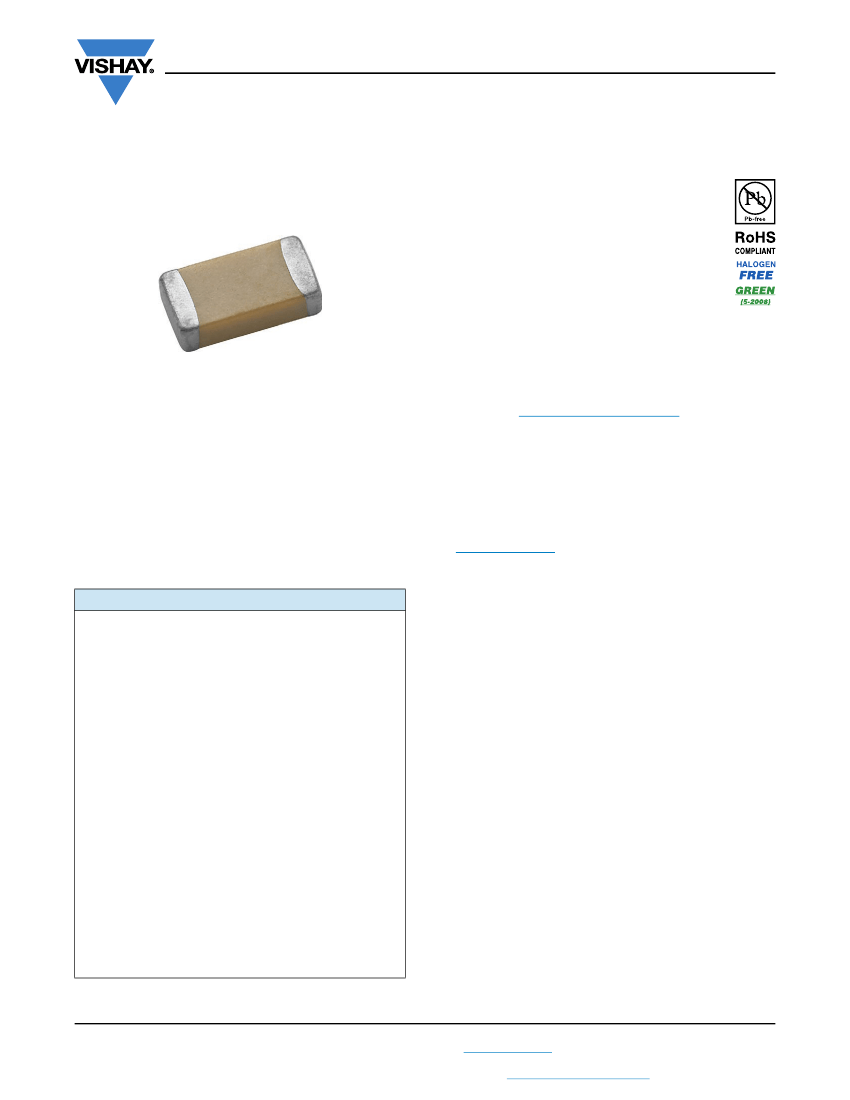

HV High Voltage Series
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitor Solutions
for High Voltage Applications
FEATURES
• Excellent reliability and thermal shock
performance
• High voltage breakdown compared to
standard design
• High reliable serial electrode design
• Protective surface coating may be required to
prevent surface arcing
• Polymer termination available for intensive, board flex
requirements
• Wet build process
• Reliable Noble Metal Electrode (NME) system
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
•
•
•
•
•
Input filter capacitors
Output filter capacitors
Snubber capacitors reduce MOSFET voltage spikes
Filtering for switching power supplies
For lighting and other AC applications please contact:
mlcc@vishay.com
ELECTRICAL SPECIFICATIONS
X7R
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
150 pF to 15 nF
Voltage Range:
3000 V
DC
, 4000 V
DC
, 5000 V
DC
, 6000 V
DC
Temperature Coefficient of Capacitance (TCC):
± 15 % from -55 °C to +125 °C, with 0 V
DC
applied
Dissipation Factor (DF):
2.5 % maximum at 1.0 V
RMS
and 1 kHz
Insulating Resistance:
at +25 °C 100 000 M min. or 1000
F
whichever is less
at +125 °C 10 000 M min. or 100
F
whichever is less
Aging Rate:
1 % maximum per decade
Dielectric Strength Test:
applied test voltages
3000 V
DC
- / 4000 V
DC
- / 5000 V
DC
- / 6000 V
DC
-rated:
min. 120 % of rated voltage
Revision: 04-Jun-2018
Document Number: 45228
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
HV High Voltage Series
www.vishay.com
Vishay Vitramon
CAPACITANCE
MINIMUM
150 pF
470 pF
470 pF
470 pF
MAXIMUM
3.9 nF
10 nF
10 nF
15 nF
QUICK REFERENCE DATA
DIELECTRIC
CASE
1812
X7R
1825
2220
2225
Note
• Detail ratings see “Selection Chart”
MAXIMUM VOLTAGE
(V)
6000
6000
6000
6000
ORDERING INFORMATION
HV2220
CASE
CODE
Y
DIELECTRIC
152
CAPACITANCE
NOMINAL
CODE
Expressed in
picofarads (pF).
The first two
digits are
significant,
the third is a
multiplier.
Examples
152 = 1500 pF
K
CAPACITANCE
TOLERANCE
X
TERMINATION
M
DC
VOLTAGE
RATING
(1)
H = 3000 V
V = 4000 V
M = 5000 V
6 = 6000 V
A
MARKING
T
PACKAGING
HV
(2)
PROCESS
CODE
1812
1825
2220
2225
Y = X7R
J=±5%
K = ± 10 %
M = ± 20 %
X = Ni barrier
100 % tin plated
matte finish
B = polymer
100 % tin plated
matte finish
A=
unmarked
T = 7" reel / plastic tape
R = 11 1/4" / 13" reel /
plastic tape
HV =
high voltage
Notes
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance.
Consult for questions:
mlcc@vishay.com
(2)
Process code with 2 digits has to be added
ENVIRONMENTAL STATUS
TERMINATION CODE
X
B
TERMINATION DESCRIPTION
Ni barrier 100 % tin plated matte finish
Polymer layer, 100 % tin plated matte finish
RoHS COMPLIANT
Yes
Yes
VISHAY GREEN
Yes
Yes
DIMENSIONS
in inches (millimeters)
L
W
T
MAX.
P
CASE CODE
STYLE
LENGTH
(L)
0.177 ± 0.012
(4.50 ± 0.30)
0.177 ± 0.012
(4.50 ± 0.30)
0.220 ± 0.010
(5.59 ± 0.25)
0.220 ± 0.010
(5.59 ± 0.25)
WIDTH
(W)
0.126 ± 0.008
(3.20 ± 0.20)
0.252 ± 0.010
(6.40 ± 0.25)
0.200 ± 0.010
(5.08 ± 0.25)
0.250 ± 0.010
(6.35 ± 0.25)
MAXIMUM
THICKNESS
(T)
0.106 (2.70)
0.125 (3.20)
(1)
0.106 (2.70)
0.106 (2.70)
0.106 (2.70)
TERMINATION PAD
(P)
MINIMUM
MAXIMUM
0.010 (0.25)
0.010 (0.25)
0.010 (0.25)
0.010 (0.25)
0.035 (0.90)
0.035 (0.90)
0.037 (0.95)
0.037 (0.95)
1812
1825
2220
2225
HV1812
HV1825
HV2220
HV2225
Notes
• Polymer layer (B termination) have increased dimensions: length 0.006" (0.15 mm)
(1)
Maximum thickness for 1812, 4.7 nF, 3 kV part
Revision: 04-Jun-2018
Document Number: 45228
2
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
HV High Voltage Series
www.vishay.com
Vishay Vitramon
SELECTION CHART
DIELECTRIC
STYLE
EIA CODE
VOLTAGE (V
DC
)
VOLTAGE CODE
CAP. CODE
101
121
151
181
221
271
331
391
471
561
681
751
821
102
122
152
182
222
272
332
392
472
562
682
822
103
123
153
183
CAP.
100 pF
120 pF
150 pF
180 pF
220 pF
270 pF
330 pF
390 pF
470 pF
560 pF
680 pF
750 pF
820 pF
1.0 nF
1.2 nF
1.5 nF
1.8 nF
2.2 nF
2.7 nF
3.3 nF
3.9 nF
4.7 nF
5.6 nF
6.8 nF
8.2 nF
10 nF
12 nF
15 nF
18 nF
•
•
•
•
•
•
•
(2)
•
(2)
•
(2)
•
(2)
•
•
•
•
(2)
•
•
•
•
•
•
•
•
•
(2)
•
(2)
•
(2)
•
(2)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
(2)
•
(2)
•
(2)
•
(2)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
HV1812
(1)
1812
HV1825
(1)
1825
X7R
HV2220
(1)
2220
HV2225
(1)
2225
3000 4000 5000 6000 3000 4000 5000 6000 3000 4000 5000 6000 3000 4000 5000 6000
H
V
M
6
H
V
M
6
H
V
M
6
H
V
M
6
Notes
(1)
See soldering recommendations within this data book, or visit:
www.vishay.com/doc?45034
(2)
Rating use lower packaging quantity, see “Standard Packaging Quantities” chart
Revision: 04-Jun-2018
Document Number: 45228
3
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
HV High Voltage Series
www.vishay.com
Vishay Vitramon
X7R DIELECTRIC - TYPICAL PARAMETERS
TEMPERATURE COEFFICIENT OF CAPACITANCE
6
4
Δ
CAPACITANCE (%)
2
0
-2
-4
-6
-8
-10
-60 -40 -20
0 20 40 60 80 100 120 140
TEMPERATURE (°C)
AGING RATE
1.0
% CAPACITANCE CHANGE
0.0
-1.0
-2.0
-3.0
-4.0
1
10
100
HOURS
1000
10 000
DISSIPATION FACTOR VS. TEMPERATURE
0.040
0.035
DISSIPATION FACTOR
0.030
0.025
0.020
0.015
0.010
0.005
0.000
-55
-35
-15
5
25
45
TEMPERATURE (°C)
65
85
0.1
1
ESR / |Z| (Ω)
100
1000
IMPEDANCE / ESR VS. FREQUENCY
HV1812Y181KXMATHV
|Z|
10
ESR
1
10
100
1000
FREQUENCY (MHz)
10 000
1000
IMPEDANCE / ESR VS. FREQUENCY
HV1812Y152KXVATHV
1000
IMPEDANCE / ESR VS. FREQUENCY
HV1825Y182KXMATHV
100
ESR / |Z| (Ω)
|Z|
10
ESR
1
ESR / |Z| (Ω)
100
|Z|
10
ESR
1
0.1
1
10
100
1000
FREQUENCY (MHz)
10 000
0.1
1
10
100
1000
FREQUENCY (MHz)
10 000
Revision: 04-Jun-2018
Document Number: 45228
4
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
HV High Voltage Series
www.vishay.com
Vishay Vitramon
X7R DIELECTRIC - TYPICAL PARAMETERS
IMPEDANCE / ESR VS. FREQUENCY
HV1825Y103KXHATHV
IMPEDANCE / ESR VS. FREQUENCY
HV2220Y103KXHATHV
100
100
10
ESR / |Z| (Ω)
|Z|
1
ESR
0.1
ESR / |Z| (Ω)
10
|Z|
1
ESR
0.1
0.01
1
10
100
1000
FREQUENCY (MHz)
10 000
0.01
1
10
100
1000
FREQUENCY (MHz)
10 000

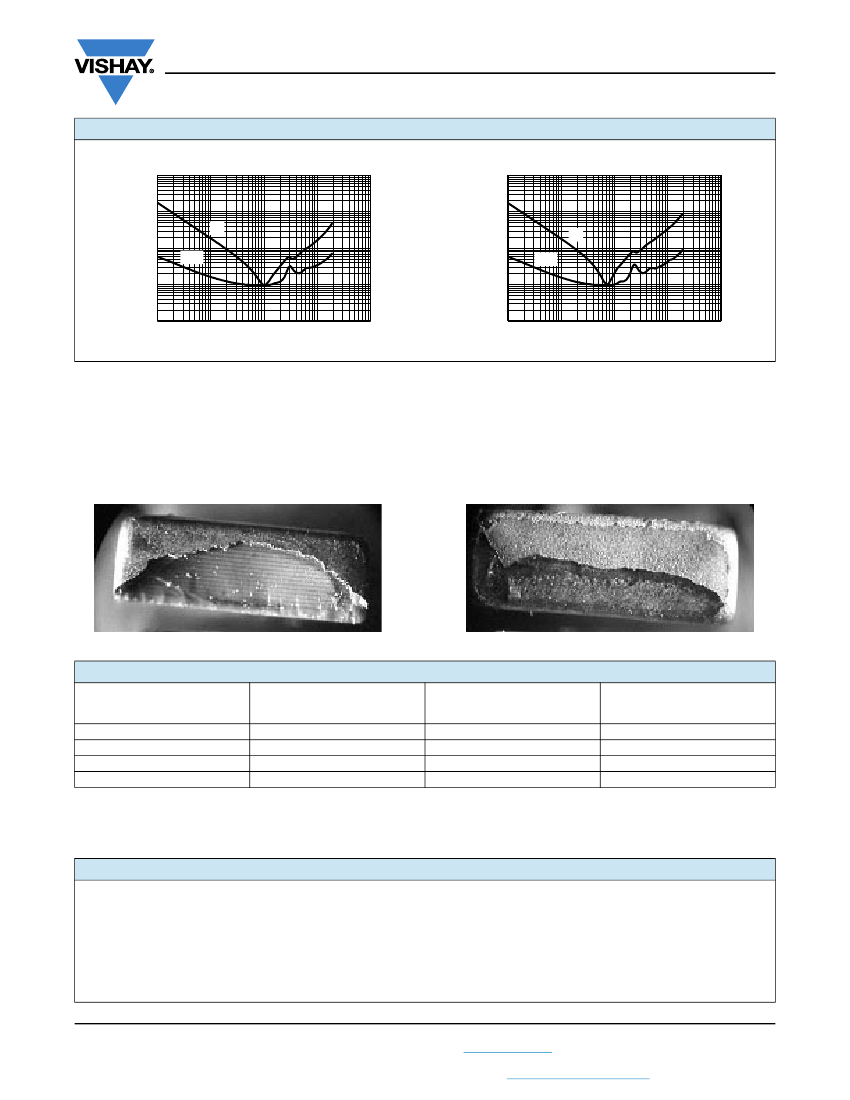

POLYMER TERMINATION
Polymer termination provides additional protection against board flexure damage by absorbing greater mechanical and thermal
stresses. Components can be packaged, transported, stored and handled the same standard terminated product. Reflow
soldering of MLCC does not require modification to equipment and / or process. Polymer termination greatly reduces the risk
of mechanical cracking however it does not completely eliminate.
STANDARD TERMINATION
Exposed Electrodes = Electrical Short
OMD CAP PLUS POLYMER TERMINATION
No Exposed Electrodes = No Electrical Short
STANDARD PACKAGING QUANTITIES
(1)
CASE CODE
1812
1825
2220
2225
TAPE SIZE
12 mm
12 mm
12 mm
12 mm
7" REEL QUANTITIES
PACKAGING CODE “T”
500
(2)
/ 1000
500
(2)
/ 1000
500
(2)
/ 1000
500
11 1/4" AND 13"
REEL QUANTITIES
PACKAGING CODE “R”
4000
4000
n/a
n/a
Notes
(1)
Reference: EIA standard RS 481 - “Taping of Surface Mount Components for Automatic Placement”
(2)
Lower quantity for certain ratings, see “Selection Chart”
STORAGE AND HANDLING CONDITIONS
(1) Store the components at 5 °C to 40 °C ambient temperature and
70 % relative humidity conditions.
(2) The product is recommended to be used within a time-frame of 2 years after shipment.
Check solderability in case extended shelf life beyond the expiry date is needed.
Precautions:
a. Do not store products in an environment containing corrosive elements, especially where chloride gas, sulfide gas, acid, alkali, salt or
the like are present. This may cause corrosion or oxidization of the terminations, which can easily lead to poor soldering.
b. Store products on the shelf and avoid exposure to moisture or dust.
c. Do not expose products to excessive shock, vibration, direct sunlight and so on.
Revision: 04-Jun-2018
Document Number: 45228
5
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
