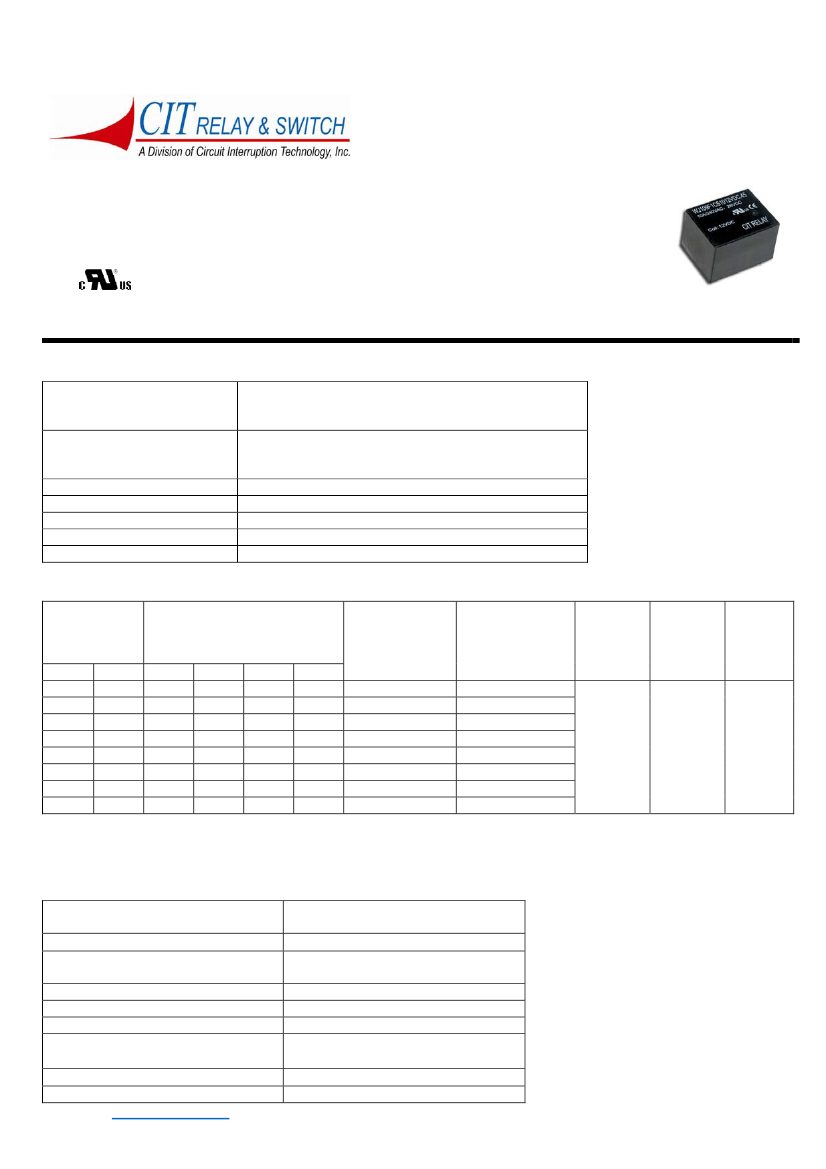

WJ109F
Distributor: Electro-Stock www.electrostock.com Tel: 630-682-1542 Fax: 630-682-1562
FEATURES:
•
UL F class rated standard
•
Small size and light weight
•
PC board mounting
•
UL/CUL certified
E197851
22.3 x 17.3 x 14.5 mm
CONTACT DATA
Contact Arrangement
Contact Rating
Contact Resistance
Contact Material
Maximum Switching Power
Maximum Switching Voltage
Maximum Switching Current
1A = SPST N.O.
1B = SPST N.C.
1C = SPDT
6A @ 300VAC & 28VDC
10A @ 125/240VAC & 28VDC
12A @ 125VAC & 28VDC, 1/3hp - 120/240 VAC
< 50 milliohms initial
AgCdO, AgSnO
2
336W
380VAC, 110VDC
20A
COIL DATA
Coil Voltage
VDC
Coil Resistance
Ω ±
10%
Pick Up Voltage
VDC (max)
75%
of rated voltage
Release Voltage
VDC (min)
10%
of rated voltage
Coil
Power
W
Operate
Time
ms
Release
Time
ms
Rated
Max.
3
3.9
2.25
0.3
5
6.5
3.75
0.5
.36
6
7.8
4.50
0.6
.45
7
9
11.7
6.75
0.9
.50
12
15.6
9.00
1.2
.80
18
23.4
13.5
1.8
24
31.2
18.00
2.4
48
62.4
36.00
4.8
CAUTION:
1. The use of any coil voltage less than the rated coil voltage may compromise the operation of the relay.
2. Pickup and release voltages are for test purposes only and are not to be used as design criteria.
.36W
25
70
100
225
400
900
1600
6400
.45W
20
56
80
180
320
720
1280
5120
.50W
18
50
72
162
288
648
1152
4608
.80W
11
31
45
101
180
405
720
2880
4
GENERAL DATA
Electrical Life @ rated load
Mechanical Life
Insulation Resistance
Dielectric Strength, Coil to Contact
Contact to Contact
Shock Resistance
Vibration Resistance
Terminal (Copper Alloy) Strength
Operating Temperature
Storage Temperature
Solderability
Weight
100K cycles, typical
10M cycles, typical
100MΩ min @ 500VDC
2500V rms min. @ sea level
1000V rms min. @ sea level
100m/s
2
for 11ms
1.50mm double amplitude 10-40Hz
10N
-55
°C
to + 125
°C
-55
°C
to + 155
°C
230
°C ±
2
°C
for 10
±
0.5s
11g
WJ109F
Distributor: Electro-Stock www.electrostock.com Tel: 630-682-1542 Fax: 630-682-1562
ORDERING INFORMATION
1. Series:
WJ109F
2.Contact Arrangement:
1A = SPST N.O.
1B = SPST N.C.
1C = SPDT
3. Sealing Options:
S = Sealed
4. Contact Rating:
6 = 6A
10 = 10A
12 = 12A
5. Coil Voltage:
3VDC
5VDC
6VDC
9VDC
12VDC
18VDC
24VDC
48VDC
6. Coil Power:
.36 = .36W
.45 = .45W
.50 = .50W
.80 = .80W
7. Contact Material:
Blank =
AgCdO
Z =
AgSnO
2
WJ109F
1C
S
6
24VDC
.45

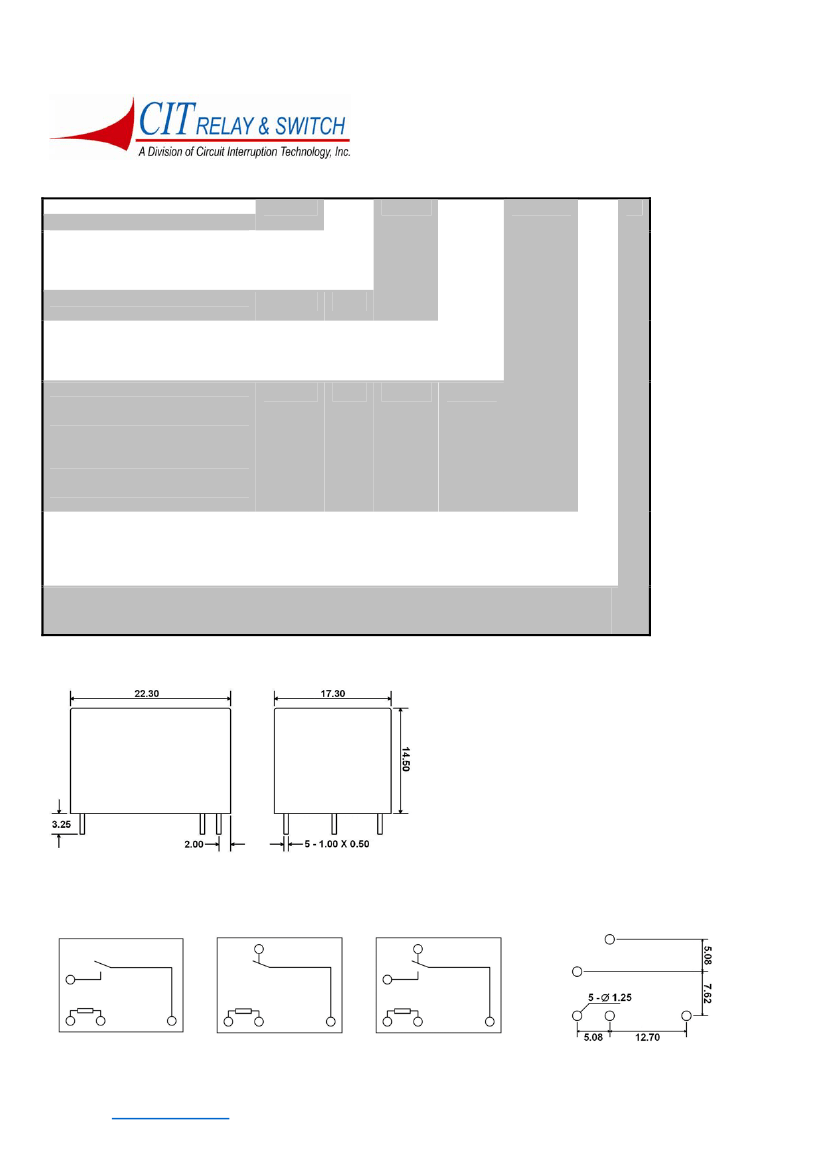

DIMENSIONS (Units = mm)
SCHEMATICS & PC LAYOUTS (BOTTOM VIEWS)
1A
1B
1C
