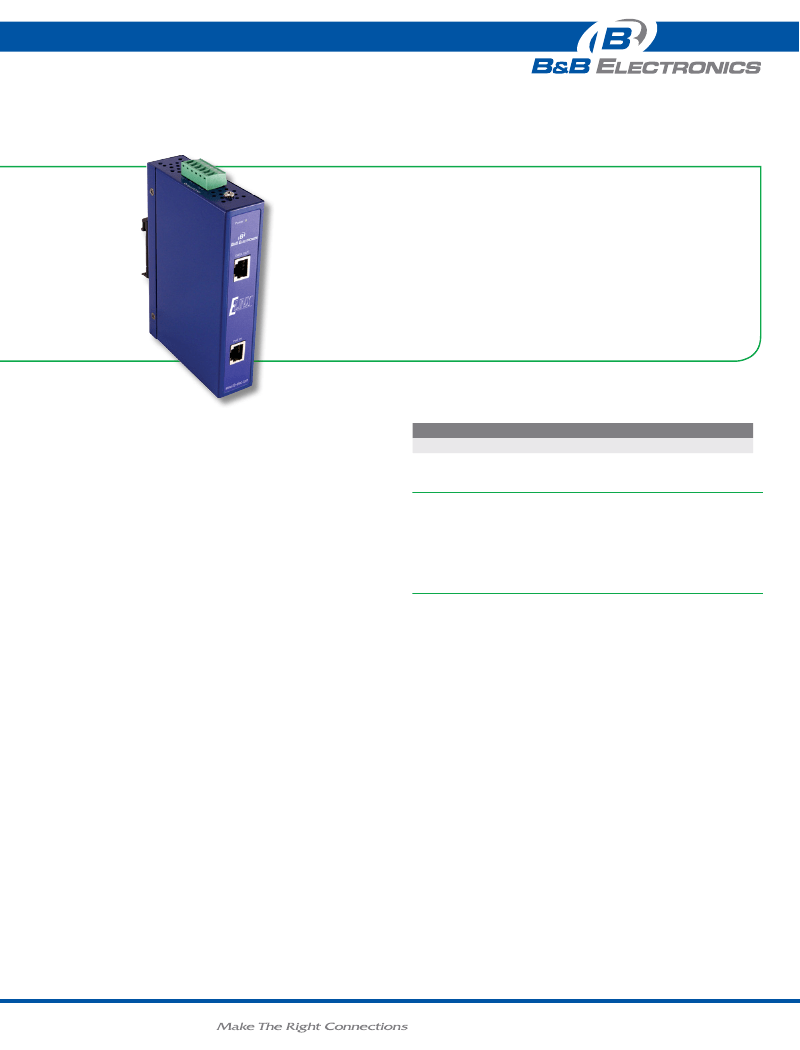

Industrial high Power Poe splitter
for 10/100/1000t
EPSG202
Product FeAtures
•
•
•
•
•
•
•
•
•
Supports 10/100/1000T for PoE in and data out
Power isolation and short circuit protection for power output
Auto disconnection for over power voltage input
Supports Output power up to 25W at 24VDC
Temperature - 40°C to 75°C
IP-30 protection
DIN rail or panel mount
Provides EFT protection 3,000VDC for power line
Supports 6,000 VDC Ethernet ESD protection
The Industrial Power over Ethernet Splitter receives a unified PoE signal
(data and power) via UTP/STP cable, and then separates the data from the
power. The power is applied to two different outputs for non PoE devices
which are not compliant with the IEEE802.3af standard.
orderIng InFormAtIon
Model nuMBer descriPtion
EPSG202
Industrial PoE Splitter for 10 /100/1000T High Power PoE
AccessorIes
MDR-60-48
- DIN Rail Power supply 48VDC, 60W
ERS35
- DIN Rail 1 Meter 35 mm Steel
C5UMB3FBL
- 3 ft. (1 M) - Blue - Category 5e UTP Patch Cord
www
.
bb
-
elec
.
com
|
EPSG202_3713ds
Industrial high Power Poe splitter
for 10/100/1000t
EPSG202
sPecIFIcAtIons
ieee standard coMPliance
IEEE 802.3
802.3. 10Base-T Ethernet
IEEE 802.3u
100Base-TX and 100Base-FX Fast Ethernet
IEEE 802.3x
Flow Control and Back Pressure
IEEE 802.3af
Power Over Ethernet
interFace
Data and power in: 1 x RJ-45.
Data pin 1, 2, 3, 6, 4, 5, 7, 8
Connector
Power pin: 4,5(V+) , 7,8(V-) or 1,2(V+) , 3,6(V-)
Data out: 1 x RJ-45, Data pin 1, 2, 3, 6, 4, 5, 7, 8
Power out: 1x 6 pin Terminal Block
ESD Protection
6000V ESD Protection
System Power (Green)
LED Indicators
regulatory
Safety
UL / cUL 508 / CE/EN60950-1
CE EN61000-6-2
CE EN61000-6-4
CE EN61000-4-2 (ESD)
EMC
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-6 (CS)
CE EN61000-4-8 (Magnetic Field)
Free Fall
IEC60068-2-32
Shock
IEC60068-2-27
Vibration
IEC60068-2-6
Power
Input Voltage
Power Output Protection
Power Connection
Wire Size
Power Use
EFT Protection
enVironMental
Operating Temperature
Storage Temperature
Operating Humidity
Mechanical
Enclosure
Mounting
Dimensions
17.6 W @ 48 VDC
Power Isolation, Short Circuit Protection
Removable Terminal Block (output power)
12 to 24 AWG
30.8 Watts
3000 V EFT Protection
- 40 to 75°C (-40 to 167°F)
- 40 to 85°C (-40 to 185°F)
5 to 95% (Non-condensing)
IP30 Metal Enclosure
35 mm DIN Rail or Panel Mount Attachments
3 cm (W) x 9.5 cm (D) x 14 cm (H)
1.18 x 3.74 x 5.51 inches
mechAnIcAl dIAgrAm
3 cm
1.18 in
9.5 cm
3.74 in
14 cm
5.51 in
