WIW1036-S-503 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > WIW1036-S-503

Preview

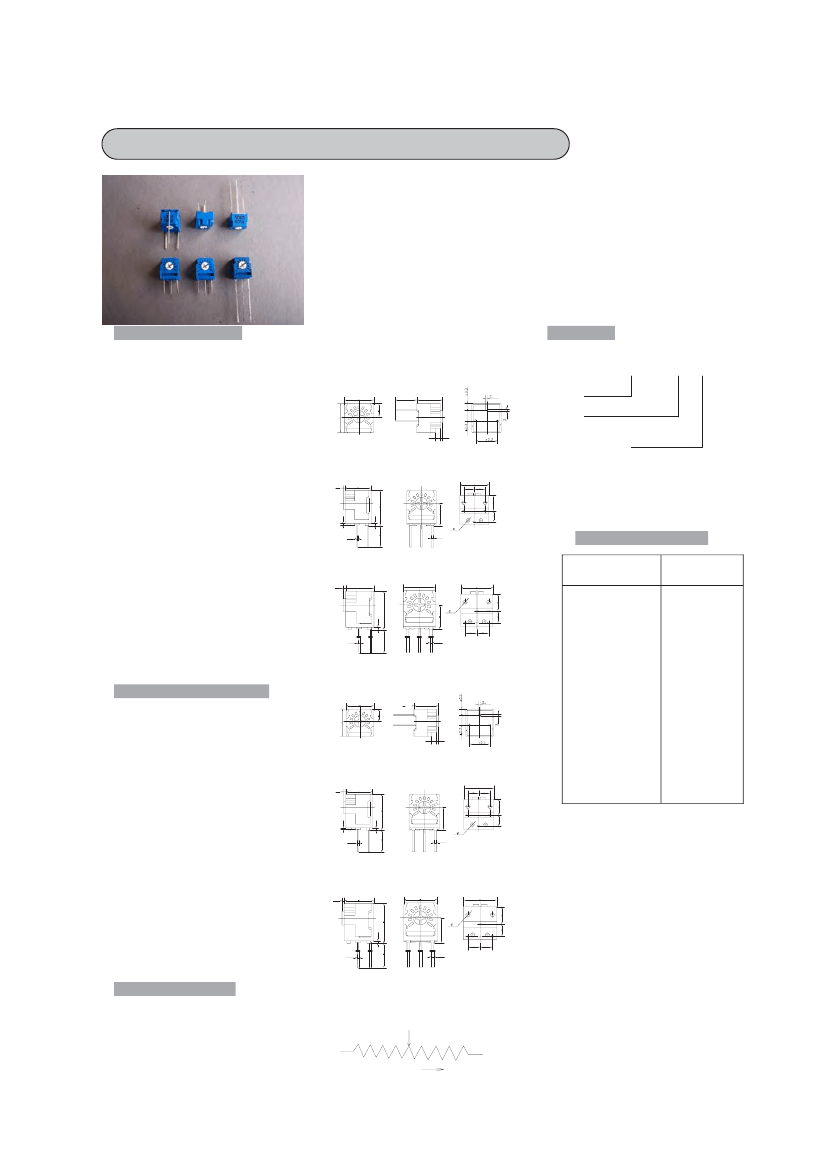

WIW1036-S-503: DescriptionTrimmer Potentiometer; File Size465KB，1 Pages; ManufacturerSharma; Websitehttp://www.sharmacomponents.com/

Download Datasheet View All

WIW1036-S-503 Overview

Trimmer Potentiometer

Preview

Download Datasheet

View All

Sharma Potentiometers

WIW1036 (3323)

Trimmer Potentiometer

Features

6mm Single Turn

Cermet / Industrial / Sealed

Top and side adjust types

(P/U/W/S most popular)

Electrical Characteristics

Standard Resistance Range

100 to 2 Megohms

(see standard resistance table)

Resistance Tolerance

10%

% std.

(tighter tolerance available)

Absolute Minimum Resistance

1% or 2 ohms max.

(whichever is greater)

Contact Resistance Variation

3% or 3 ohms max.

(whichever is greater)

Adjustability

Voltage

0.05%

Resistance

0.15%

Resolution

Infinite

Insulation Resistance

500 vdc

1,000 Megohms min.

Dielectric Strength

101.3 kPa 500 vac

8.5 kPa 315 vac

Adjustment Angle

210 nom.

Environmental Characteristics

Power Rating (250 volts max.)

0.5 watt (70 ) , 0 watt (125 )

Temperature Range

-55

to +125

Temperature Coefficient

100ppm/

Vibration

98 m/s

(1% TR;2% VR)

Shock

390 m/s

(1% TR; 1% VR)

Load Life

1,000 hours 0.5 watt @ 70

(3% TR; 4% or 4 ohm, Whichever

is greater , CRV)

Rotational Life

200 cycles

(3% TR; 4% or 4 ohm, Whichever

is greater , CRV)

Physical Characteristics

Mechanical Angle

250° nom.

Torque

20 mN m max.

Stop Strength

50 mN m min.

Terminals

Solderable pins

How to order

WIW1036—P—102

6.8+0.3

3+0.2

5+1

6+0.3

1.5

0.5

Model

0.3

6.8+0.3

Style

Resistance code

1.2

0.5

2.5

6.8+0.3

0.5

6.2+0.3

2.5+0.3 2.5+0.3

8.2+0.4

5.2+0.4

4- 0.8

5+1

2.5+0.3

0.3

0.5

2.9+0.3

3-0.3

3-0.5

Standard Resistance Table

Resistance

Ohms

100

200

500

1,000

2,000

5,000

10,000

20,000

25,000

50,000

100,000

200,000

250,000

500,000

1,000,000

2,000,000

Resistance

Code

101

201

501

102

202

502

103

203

253

503

104

204

254

504

105

205

0.5

6.2+0.3

6.8+0.3

8.2+0.4

0.5

5.2+0.4

2.5+0.3 2.5+0.3

5+1

3-0.3

3-0.5

1.5

0.5

6.8+0.3

3+0.2

5+1

6+0.3

6.8+0.3

1.2

0.5

2.5

6.8+0.3

0.5

6.2+0.3

2.5+0.3 2.5+0.3

8.2+0.4

5.2+0.4

2.5+0.3

2.9+0.3

0.3

2.5+0.3

4- 0.8

2.9+0.3

Special resistance available

Detail Specification: Q/RY219-2000

0.3

0.5

4- 0.8

5+1

3-0.3

3-0.5

Military Specification: Q/RY20008-97

0.5

6.2+0.3

6.8+0.3

2.9+0.3

5.2+0.4

2.5+0.3 2.5+0.3

5+1

3-0.3

3-0.5

8.2+0.4

0.5

WIPER

CLOCKWISE

Tel:(949)642-SECI

SECI Engineers & Buyers' Guide

2.5+0.3

4- 0.8

Fax:(949)642-7327
