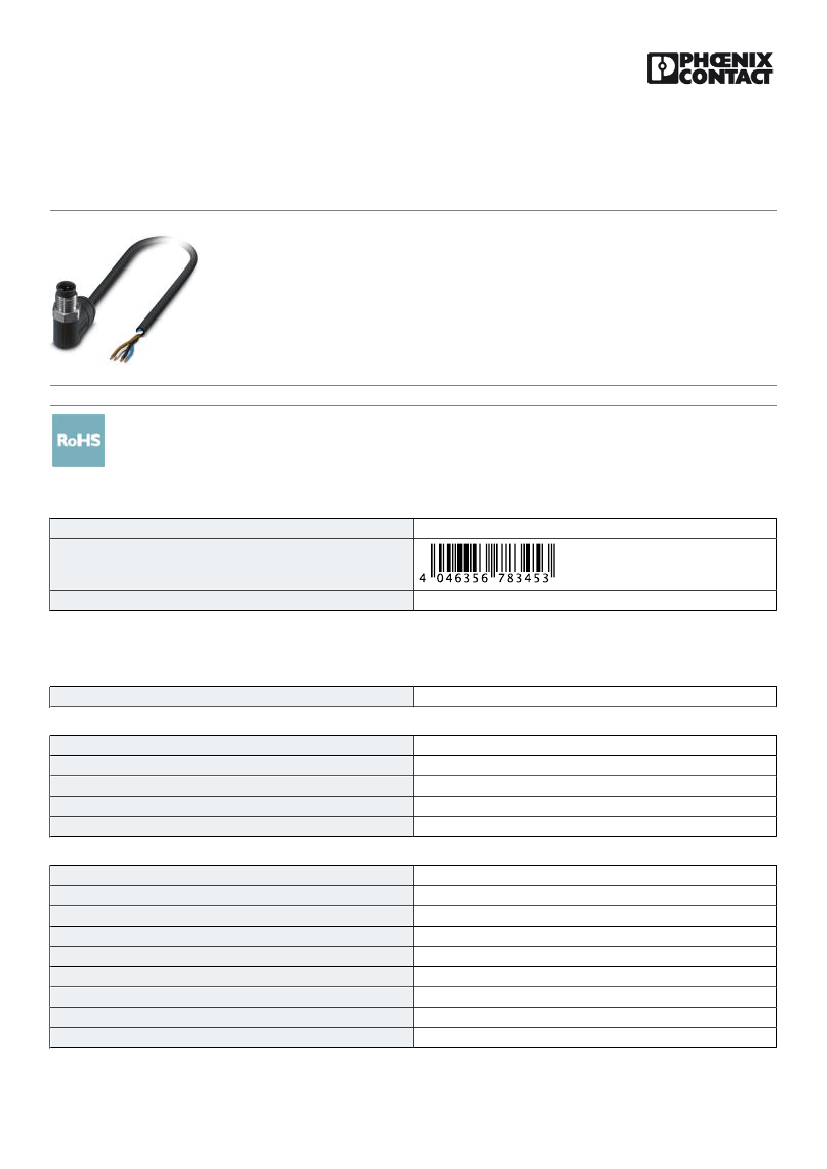

Sensor/actuator cable - SAC-4P-M12MR/ 2,0-28X OD - 1407965
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 4-position, PE-X halogen-free, black-gray RAL 7021, Plug angled M12, A-coded, on
free cable end, cable length: 2 m, for outdoor applications, with high-grade steel knurl
Key Commercial Data
Packing unit
GTIN
GTIN
4046356783453
1 pc
Technical data
Dimensions
Length of cable
2m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 105 °C (Plug / socket)
IP65
IP67
IP68
IP69K
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
4A
250 V AC
250 V DC
4
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
Unwired
11/09/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1407965
Sensor/actuator cable - SAC-4P-M12MR/ 2,0-28X OD - 1407965
Technical data
General
Degree of pollution
Insertion/withdrawal cycles
Torque
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
V0
CuSn
Ni/Au
PP
PP
Stainless steel
FPM
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
PE-X black
28X
Li2X2X
4x 0.5 mm² (Signal line)
20
28x 0.15 mm
1.6 mm ±0.05 mm (Signal line)
approx. 0.3 mm (Core insulation)
approx. 0.6 mm (Outer cable sheath)
brown, white, blue, black
4 wires, twisted
61.6 mm
black-gray RAL 7021
5.2 mm ±0.2 mm
26 mm
52 mm
2000000
52 mm
10 m
3 m/s
10 m/s²
44 kg/km
PE-X
11/09/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1407965
Sensor/actuator cable - SAC-4P-M12MR/ 2,0-28X OD - 1407965
Technical data
Cable
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
Flame resistance
PE-X
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
≤ 39 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC
Irradiated
according to DIN 60332-1-2
according to DIN EN 50266-2-5
according to IEC 60332-3-25 (bunched fire test)
Halogen-free
Resistance to oil
Other resistance
Concentration of fumes
Fume corrosiveness
Ambient temperature (operation)
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
UV resistant according to DIN VDE 0276-605
according to DIN EN 61034
according to IEC 60754
-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

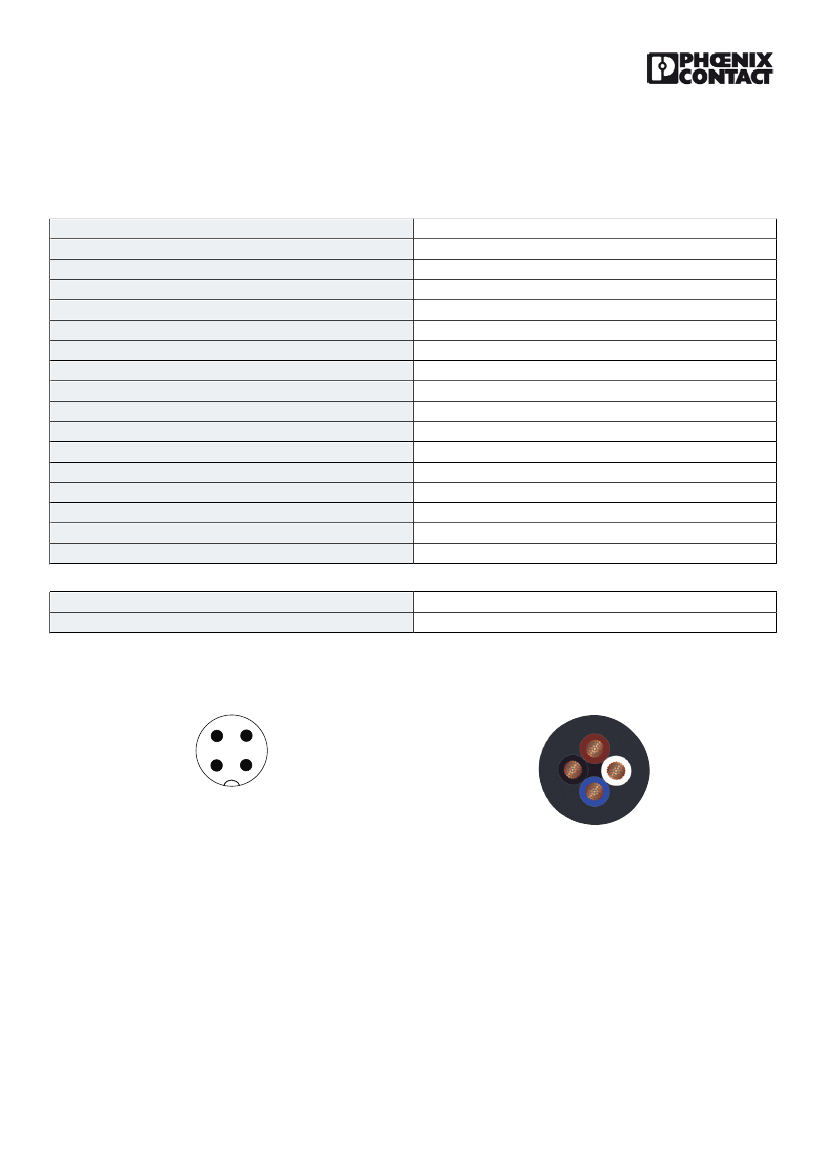

Drawings
Schematic diagram
4
3
Cable cross section
1
2
Pin assignment M12 plug, 4-pos., A-coded, view plug side
PE-X black [28X]
11/09/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1407965
Sensor/actuator cable - SAC-4P-M12MR/ 2,0-28X OD - 1407965
Dimensional drawing
Circuit diagram
14
1
2
4
BN
WH
BK
BU
35,2
Ø16
3
35,2
Contact assignment of the M12 plugs
M12 x 1 male plug, angled
Approvals
Approvals
Approvals
DNV GL
Ex Approvals
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00002K4
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/09/2018 Page 4 / 4
