Sensor/Actuator cable - SAC-5P- 2,0-420/MINFS - 1533026
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

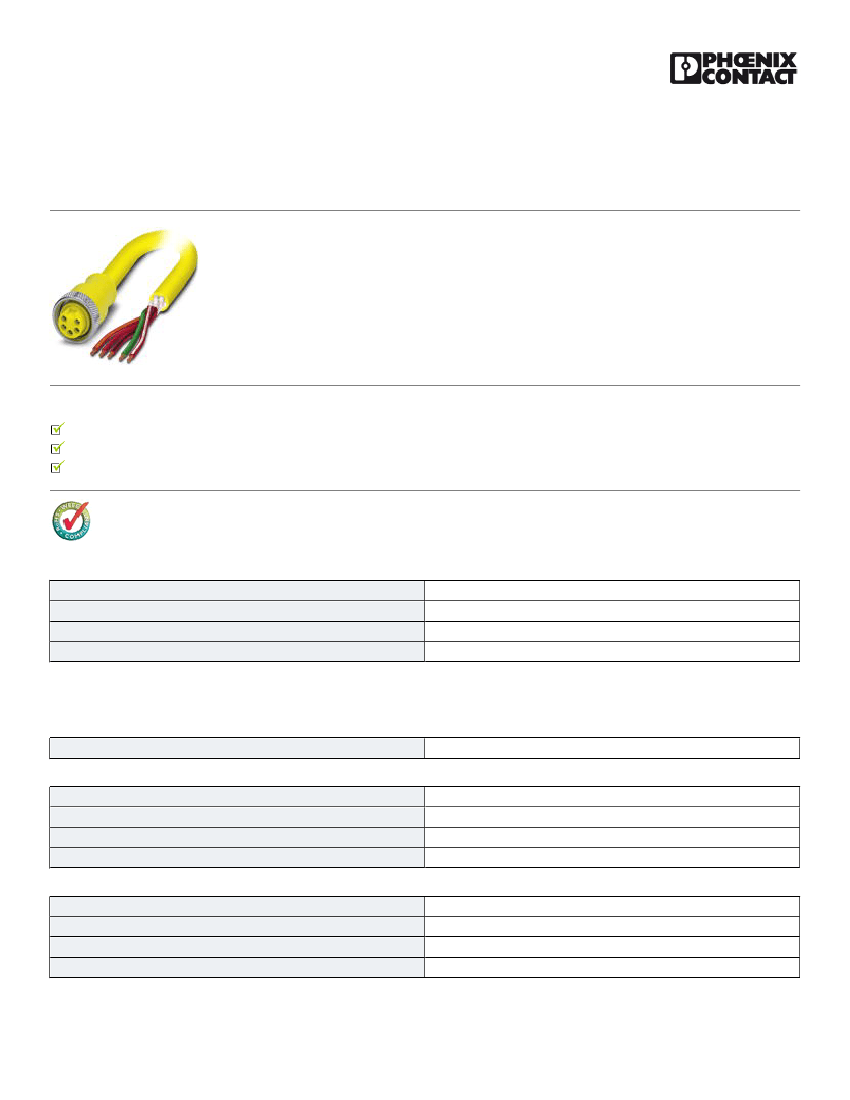

Sensor/Actuator cable, 5-position, PVC, Yellow RAL 1021, Free cable end, on Socket straight 7/8"-16UNF, A-
coded, Cable length: 2 m
Product Features
Easy and safe: 100% electrically tested plug-in components
Robust connectors in size 7/8"-16UNF
High-performance: connectors and cables with a large conductor cross section for power supply
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
446.4 GRM
85444290
Germany
Technical data
Dimensions
Length of cable
2m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 80 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
Contact resistance
8A
600 V
5
≤ 5 mΩ
08.11.2013 Page 1 / 8
https://www.phoenixcontact.com/us/products/1533026
Sensor/Actuator cable - SAC-5P- 2,0-420/MINFS - 1533026
Technical data
General
Insulation resistance
Coding
Status display
Surge voltage category
Pollution degree
Test voltage
Insertion/withdrawal cycles
≥ 100 MΩ
A - standard
No
II
2
4000 V
> 500
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
HB
CuSn
Au
PUR
PUR
Nickel-plated brass
Cable
Cable type
Conductor cross section
AWG signal line
Conductor structure signal line
Wire colors
External sheath, color
External cable diameter
Outer sheath, material
PVC yellow Auto color code
1.5 mm²
16
65x 0.16 mm
Red-white, red, green, red-yellow, red-black
Yellow RAL 1021
12.58 mm
PVC
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27061801
08.11.2013 Page 2 / 8
https://www.phoenixcontact.com/us/products/1533026
Sensor/Actuator cable - SAC-5P- 2,0-420/MINFS - 1533026
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approvals submitted
Approval details
UL Listed
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
16
8A
250 V
08.11.2013 Page 3 / 8
https://www.phoenixcontact.com/us/products/1533026
Sensor/Actuator cable - SAC-5P- 2,0-420/MINFS - 1533026
Approvals
cUL Listed
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
16
8A
250 V
cULus Listed
Accessories
Accessories
Conductor marking
Insert label - PABA WH/15 - 1013151
Insert label, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA YE/15 - 1013698
Insert label, Strip, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA RD/15 - 1013944
Insert label, Strip, red, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
08.11.2013 Page 4 / 8
https://www.phoenixcontact.com/us/products/1533026
Sensor/Actuator cable - SAC-5P- 2,0-420/MINFS - 1533026
Accessories
Cutting tools
Cable-cutting tool - CUTFOX-S VDE - 1212207
Diagonal cutter for copper and aluminum conductors, VDE-tested
Marker carrier cable
Conductor marker carrier - PATG 2/15 - 1013038
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 2-4 mm, Lettering field: 4 x
15 mm
Conductor marker carrier - PATG 3/15 - 1013041
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 4-7 mm, Lettering field: 4 x
15 mm
Conductor marker carrier - PATG 4/15 - 1013054
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 6-10 mm, Lettering field: 4 x
15 mm
Marker pen
