0759001461 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0759001461

0759001461: DescriptionCONN HEADER 12POS DL R/A 3.05MM; CategoryThe connector; File Size206KB，2 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric View All

0759001461 Overview

CONN HEADER 12POS DL R/A 3.05MM

0759001461 Parametric

Parameter Name	Attribute value
Connector type	Needle hub, separate
Contact type	Male pin
Spacing - Mating	0.138"（3.50mm）
Number of pins	12
Number of rows	2
Line spacing - patching	0.236"（6.00mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Uncovered
Installation type	Through hole, right angle
Termination	welding
Fastening type	push-pull
Contact Length - Mating	-
Contact length - terminal	0.120"（3.05mm）
Overall contact length	-
Insulation height	0.177"（4.50mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	59.0µin (1.50µm)
Contact Surface Preparation - Column	tin
Contact material	Bullet case brass
Insulation Materials	Liquid crystal polymer (LCP), glass fiber reinforced
characteristic	-
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	59.0µin（1.50µm）
application	Automotive grade

Preview

Download Datasheet

View All

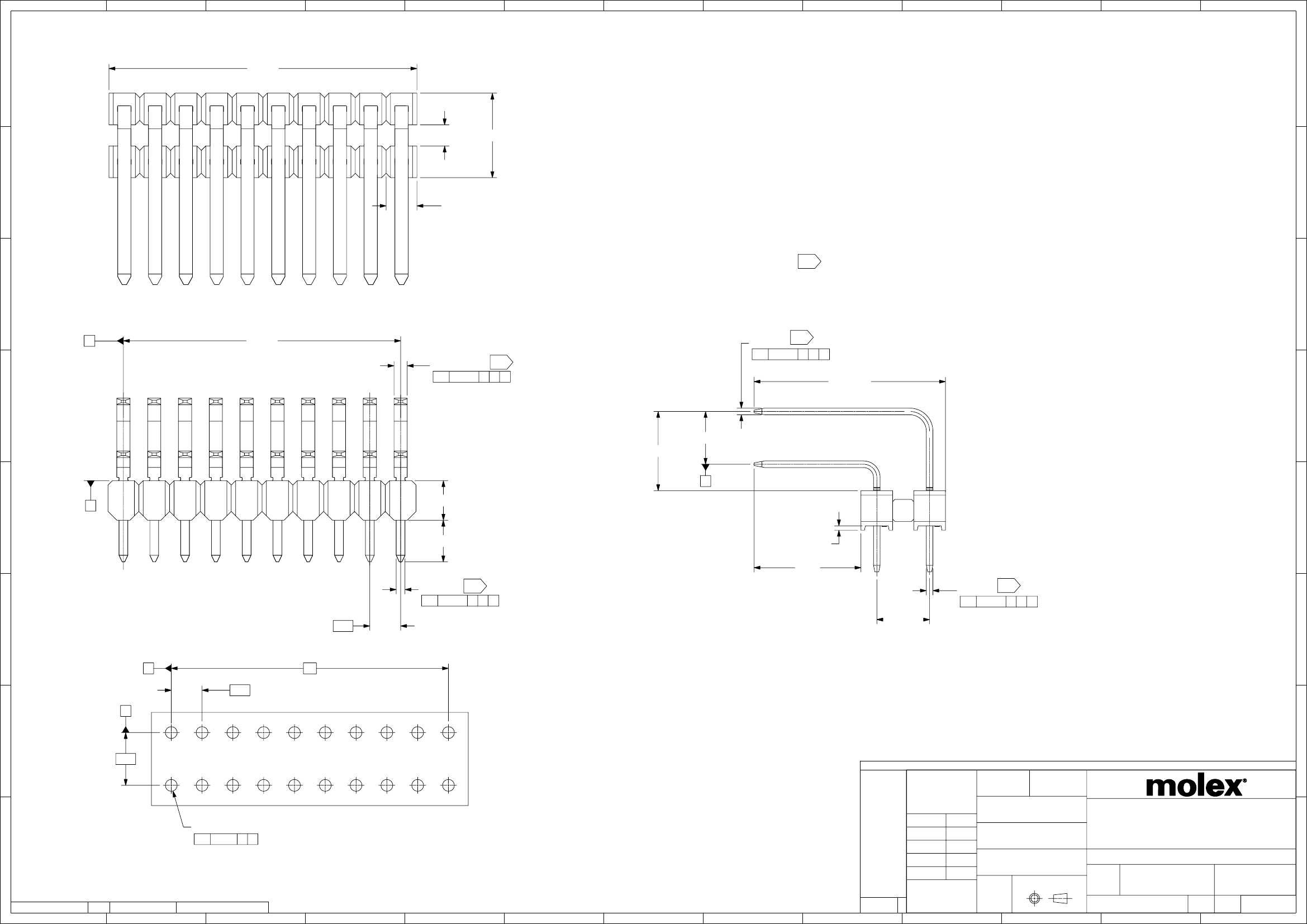

'A'

REF

2.40

9.60

3.50

REF

NOTES:

1. TERMINAL MAT'L: ALLOY C26000, CARTRIDGE BRASS

2. WAFER MAT'L: 30% GLASS FILLED LCP, 94V-0, COLOR BLACK.

3. TERMINAL PLATING:

OPTION 4 - 1.5µm MIN MATTE TIN OVERALL OVER 1.25µm NICKEL OVERALL

OPTION 1 - 2.5µm MIN MATTE TIN OVERALL OVER 1.25µm NICKEL OVERALL

OPTION 2 - 1.25m NICKEL OVERALL 2.5µm MIN SELECT MATTE TIN PC TAIL

AREA 0.05-0.25µm SELECT GOLD CONTACT AREA

OPTION 3 - 1.25µm NICKEL OVERALL 2.5µm MIN SELECT MATTE TIN PC TAIL

AREA 0.75µm SELECT GOLD CONTACT AREA

4. HEADER ASSEMBLIES ARE TUBE PACKAGED PER PK-36518-351.

5. ALL THE POSITIONAL TOLERANCES SHOULD BE MEASURED AT TIP OF THE TERMINALS.

6. DATUM SHOULD BE CONSIDERED FROM THE EDGES OF THE HOUSING.

7. POSITION TOLERANCES OF THE PIN AT MATING SIDE SHOULD BE MAINTAINED AT 0.3 MM IN

THE FINAL MODULE BY CUSTOMER.

DENOTES DIMENSIONS THAT CAN BE QUALIFIED WITH A GAUGE.

9. BLADE GEOMETRY DOES NOT CONFORM TO USCAR SPECIFICATIONS.

'B'

REF

1.50

REF.

⌖

0.70

Ⓜ

SEE NOTE 5

0.75

0.03

⌖

0.70

Ⓜ

SEE NOTE 5

21.75

REF

6.00

9.00

4.50

'C'

REF.

0.50

12.15

1.00

REF.

⌖

0.30

Ⓜ

SEE NOTE 5

3.50

6.00

REF.

0.75

0.03

⌖

0.30

Ⓜ

SEE NOTE 5

'B'

3.50

6.00

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

GENERAL

TOLERANCES

4:1

(UNLESS SPECIFIED)

2017/07/11

2018/03/15

DRWN BY

DATE

ANGULAR TOL ±

0.5

119089

RGV

DPOMPI

⌀

1.35

0.05

⌖

⌀

0.20

X Y

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0 PLACES

TMCCLELL

CHK'D BY

DATE

2006/02/02

2006/02/03

DATE

MX150 RIGHT ANGLE

DUAL ROW UNSHROUDED HEADER ASSEMBLY

0.13

0.25

TMCCLELL

APPR BY

PRODUCT CUSTOMER DRAWING

2006/02/08

SERIES

MATERIAL NUMBER

CUSTOMER

MBANAKIS

DRAWING SIZE

EC NO:

DRWN:

CHK'D:

APPR:

THIRD ANGLE PROJECTION

RELEASE STATUS

FORMAT: master-tb-prod-A2

REVISION: G

DATE: 2017/02/06

RELEASE DATE

2018/03/15

08:55:25

REV

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

75900

DOCUMENT NUMBER

SEE CHART

GENERAL MARKET

DOC TYPE

DOC PART

SHEET NUMBER

SD-75900-001

PSD

001

1 OF 2
