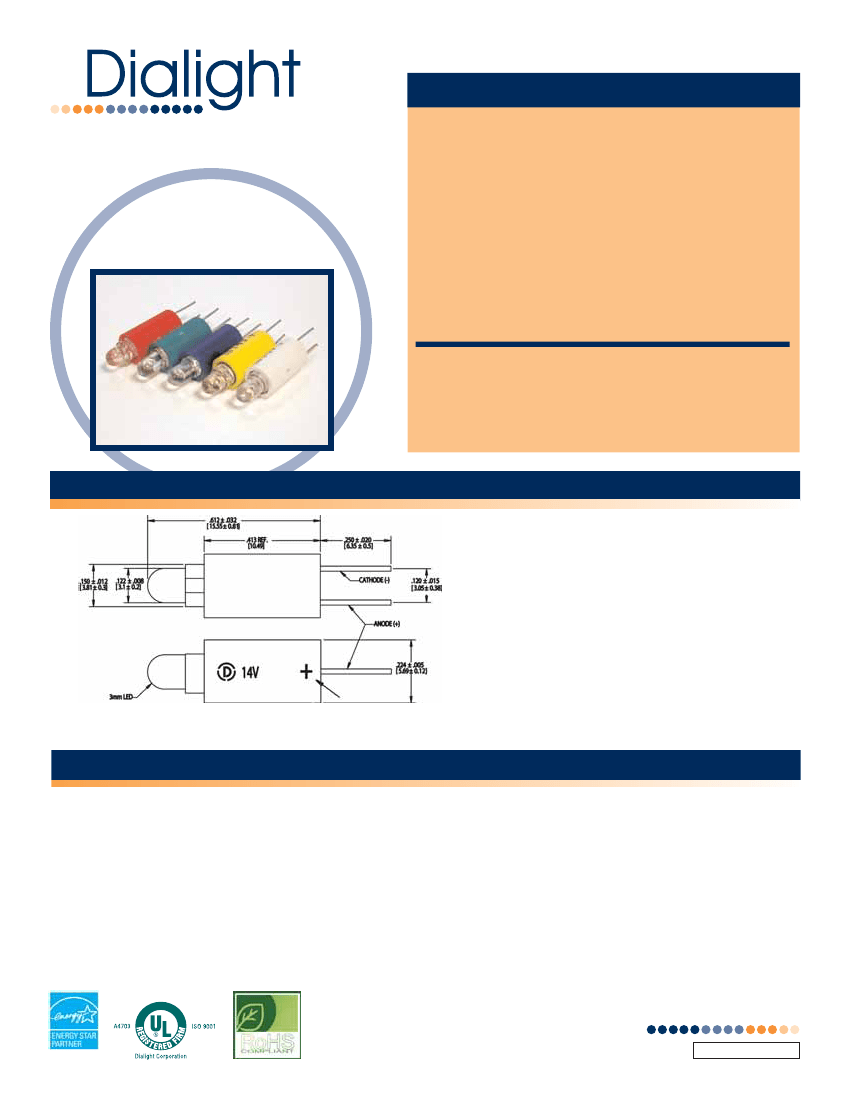

FEATURES / BENEFITS
586 Series
Single Chip BASED LED
T1 3/4 BI-PIN
RoHS compliant
High brightness with low current draw - uses up to 90%
less energy than incandescent
Long life - up to 100K hours
No heat generated
Mounts directly into industry-standard socket
Resistant to shock and vibration
AlInGaP and InGaN technology
Super bright single chip design
Colors include red, green, yellow, blue and white
Dialight's line of based LED lamps is designed to directly
replace many popular subminiature and miniature incandescent
lamps. The benefits of LED technology over incandescent are
significant: They offer long life, are shock resistant, withstand
vibration and provide energy conservation.
SPECIFICATIONS
Operating Voltages: 6, 14, and 28 VDC
Operating temperature: -30
o
C
to +
80
o
C
Storage temperature: -40
o
C
to +
85
o
C
Replaces incandescent lamp numbers*: 2314,
2323, 2324, 2325, 2335, 2337, 2342, 7327, 7328,
7330, 7349, 7377, 7380, 7381, 7382, 7387, 7876,
and 7945
Polarity Indicators
Measurements are typical
Dimensions are inches [mm]
*See Dialight’s Incandescent lamp/based LED
cross reference for a complete listing
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED.
If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,
which will optimize the light output.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586R001_C
586 Series
Single Chip BASED LED
T1 3/4 BI-PIN
T1 3/4 BI-PIN
PART NUMBER
586-1301-101F
586-1302-101F
586-1303-101F
586-1305-101F
586-1306-101F
586-1301-103F
586-1302-103F
586-1303-103F
586-1305-103F
586-1306-103F
586-1301-105F
586-1302-105F
586-1303-105F
586-1305-105F
586-1306-105F
COLOR
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
PEAK
WAVELENGTH
(nm)
626
525
590
470
*
626
525
590
470
*
626
525
590
470
*
VOLTAGE
(VDC)
6
6
6
6
6
14
14
14
14
14
28
28
28
28
28
CURRENT
TYP.-(mA)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
INTENSITY
TYP.-(mcd)
90
1700
110
500
635
90
1700
110
500
635
90
1700
110
500
635
RoHS
COMPLIANT
* Color coordinates: x = .320, y = .320
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent
lamp when used in similar packages. These advancements have created a new type of product called the based
LED - an LED with the functionality of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T1 3/4 Midget Flange
T1 3/4 Bi-Pin
T1 3/4 Wedge (T5)
T2 Telephone Slide
T3 1/4 Miniature Bayonet (BA9s)
T3 1/4 Miniature Screw (E10)
T3 1/4 Wedge (T10)
15mm SC Bayonet (BA15s)
Dialight’s line of based LEDs continues to grow.
Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586R001_C
