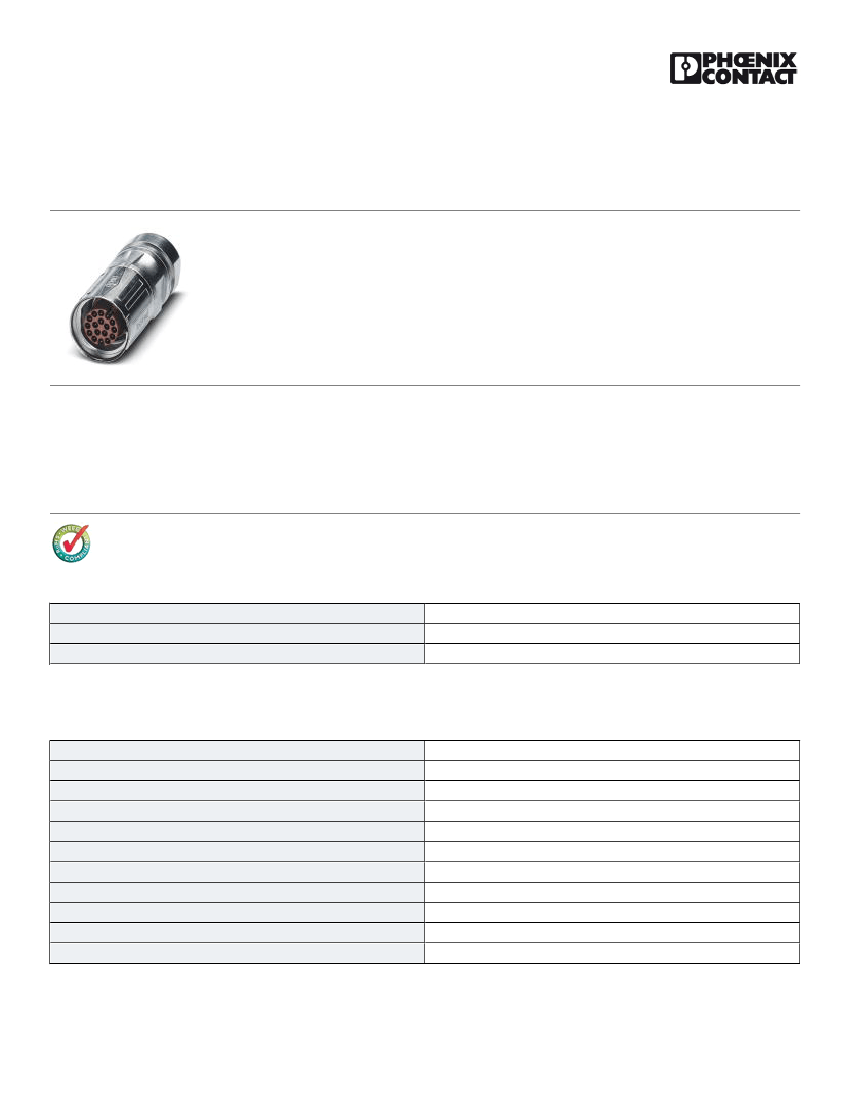

Cable connector - ST-17P1N8A8005S - 1624529
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Cable connector, straight, SPEEDCON locking, M17, Number of positions: 17, Type of contact: Male connector,
Crimp connection, shielded: yes, Cable diameter: 10 mm...12.5 mm
Product Features
■
■
■
■
Consistent EMC protection for reliable connection solutions in the industrial environment
Crimping connection: vibration- and temperature-resistant assembly
Flexible use: reliably connect various cable diameters
Molded designs with pre-assembled cables on one or both sides
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85366990
Germany
Technical data
General
Note
Type of locking
Direction of rotation of contact chamber numbering
Coding
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Conductor entry
Pg housing screw connection
Order information: Order crimp contacts Ø 0.6 mm separately
SPEEDCON locking
Standard
N
Crimp connection
Male connector
17
0.6 mm
3.6 A
10 mm ... 12.5 mm
none
05/19/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/1624529
Cable connector - ST-17P1N8A8005S - 1624529
Technical data
Ambient conditions
Ambient temperature
Degree of protection
-40 °C ... 125 °C
IP67
Specifications according to DIN EN 61984:2001
Installation height max.
Nominal / operating voltage of power contacts
Rated surge voltage of power contacts
Overvoltage category of power contacts
Degree of pollution of power contacts
Rated surge voltage of signal contacts
Overvoltage category of signal contacts
Degree of pollution of signal contacts
3000 m
60 V
1.5 kV
III
3
60 V
II
3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260708
27440312
27440102
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC001121
EC002641
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201404
43201404
Approvals
Approvals
05/19/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/1624529
Cable connector - ST-17P1N8A8005S - 1624529
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.14-0.6
1A
60 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.14-0.6
1A
60 V
EAC
cULus Recognized
Drawings
05/19/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/1624529
Cable connector - ST-17P1N8A8005S - 1624529
Schematic diagram
13
12
11
17
10
9
16
8
7
6
15
1
2
3
14
4
5
Dimensional drawing
52,1
Ø21,3
Connector pin assignment
Diagram
Current carrying capacity [A]
Attenuation [dB]
Diagram
120
100
80
60
40
40
35
30
25
20
15
10
5
0
0
1
= 4-pos. 3x2,5mm²
2
= 8-pos. 3x1,0mm²
20
40
60
1
2
80
100
120
Ambient temperature [°C]
20
0
30
100
1000
Frequency [MHz]
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
Ø21,6
05/19/2016 Page 4 / 4
