185-001C,M,Z1,NF,02-13-2CM datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 185-001C,M,Z1,NF,02-13-2CM

Preview

185-001C,M,Z1,NF,02-13-2CM: DescriptionCONNECTOR, MULTI MODE, SIMPLEX FIBER OPTIC CONNECTOR, RECEPTACLE; CategoryThe connector The connector; File Size149KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

185-001C,M,Z1,NF,02-13-2CM Overview

CONNECTOR, MULTI MODE, SIMPLEX FIBER OPTIC CONNECTOR, RECEPTACLE

185-001C,M,Z1,NF,02-13-2CM Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Base Number Matches	1

Preview

Download Datasheet

View All

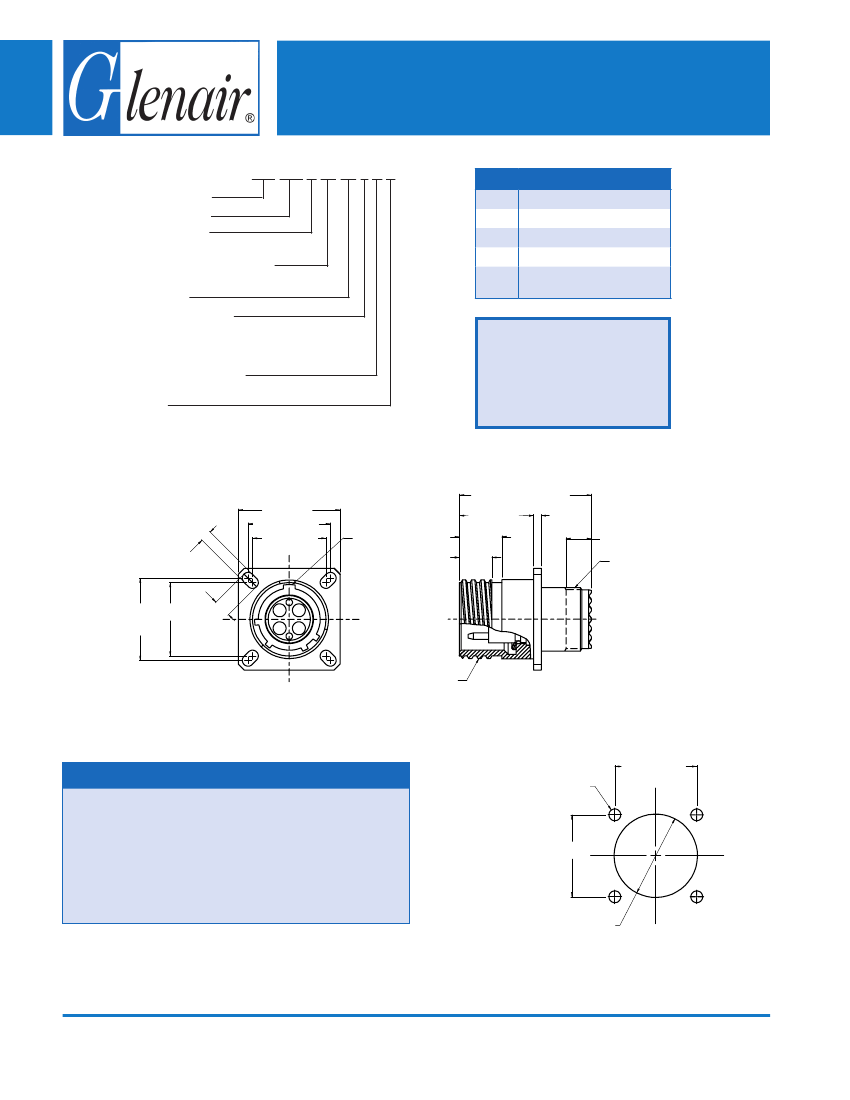

Expanded Beam

Connectors

Product Series

Basic Number

Finish Symbol

(Table II) Omit for None

02 = Receptacle Assembly,

Wall-Mounting

Shell Size

Mode

S = Singlemode

M = Multimode

4x .132 (3.4) Max

4x .201 (5.1) Max

.909 (23.1)

.812 (20.6)

185-001 (02 Wall-Mounting)

Expanded Beam Fiber Optic Receptacle Connector

D38999 Style Shell Size 13

185-001 C 02-13-4 N S

SYM

C

M

Z1

NF

TABLE II: FINISH

FINISH

Anodize, Black

Electroless Nickel Plate

Stainless Steel, Passivated

Zinc-Nickel/Olive Drab over

Electroless Nickel

Insert arrangement

4 = 4 Optical Channels

2 = 2 Optical Channels

F = 2 Optical and 2 Electrical

Aternate Key Position

(N,A,B,C,D,E) Per MIL-DTL-38999

PART SUPPLIED ONLY AS

TERMINATED ASSEMBLY

CONSULT FACTORY

FOR CABLE DESIGN

1.135 (28.8) Max Sq

.909 (23.1)

.812 (20.6)

Master

Polarizing

Keyway

.471 (12.0) Max

.390 (1.0) Max

1.468 (37.3) Max

.090 (2.3) Max

.821 (20.9)

.817 (20.8)

.280 (7.1) Min

Full Thd

M18 X 1.0-6g-0.100R

.8750-.1p-.3L-TS-2A

02

WALL MOUNTING

RECEPTACLE ASSY

APPLICATION NOTES

1. Assembly identiﬁed with Glenair, Inc and P/N, Space Permitting.

2. Glenair 185-001 Connector Features:

A. Plug Barrel, Shell, Coupling Nut- AL/BR AB2 or CA104 or

DGS1043

B. Seal, Gasket- Fluorosilicone Blend

C. Thrust Washer & Retaining Ring- Stainless Steel

D. Grounding Fingers- Copper Alloy

3. Metric dimensions (mm) are in parentheses.

.906 (23.0)

4x

.133 (3.4)

.127 (3.2)

.906 (23.0)

.922 (23.4) Min

RECOMMENDED PANEL CUTOUT

CAGE Codes 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

E-Mail: sales@glenair.com

www.glenair.com

G-2
