311505A00000G

Description
BOARD LEVEL HEAT SINK
CategoryThermal management products
File Size186KB,1 Pages
ManufacturerAavid Thermalloy
Environmental Compliance
Download Datasheet Parametric View All

311505A00000G Online Shopping

Suppliers Part Number Price MOQ In stock
311505A00000G - - View Buy Now

311505A00000G Overview

BOARD LEVEL HEAT SINK

311505A00000G Parametric

Parameter NameAttribute value
typePlug-in board level
cooling packageTO-5
Joining methodcrimp type
shapecylinder
length-
width-
diameter0.317" (8.05mm) inner diameter, 0.375" (9.52mm) outer diameter
Height from base (fin height)0.400"(10.16mm)
Power dissipation at different temperature rises1.0W @ 70°C
Thermal resistance at different forced airflows45.00°C/W @ 200 LFM
Thermal resistance under natural conditions90.00°C/W
Materialaluminum
Material platingHard anodizing

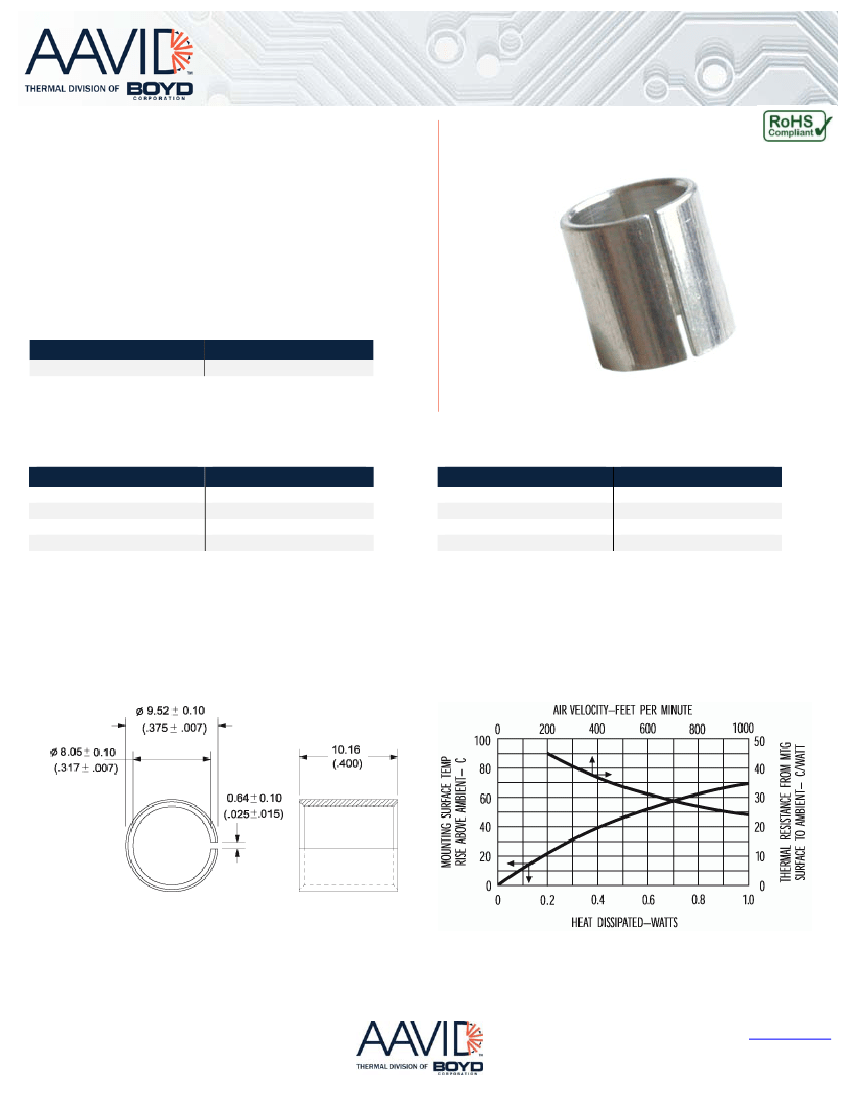

DATASHEET


BOARD LEVEL COOLING – Push On 3100
Board Level Cooling – Push On 3100






Push On 3100 is a circular board level heat sink designed to cool TO‐5
devices. Representative image only.
ORDERING INFORMATION

Part Number
311505B00000G

Device Type
TO‐5




HEAT SINK DETAILS
Property
 Material
Finish
Device Attachment Options
Thermal Interface Material

Details
Aluminum
Black Anodize
Push‐On
‐
Property
Heat Sink Width (mm)
Heat Sink Length (mm)
Heat Sink Height (mm)
Heat Sink Mounting Direction
Details
9.52
9.52
10.16
Vertical

MECHANICAL & PERFORMANCE
Drawing dimensions are shown in mm, (in)

USA: 1.855.322.2843
EUROPE: 39.051.764002
ASIA: 86.21.6115.2000 x8122










    Board Level Cooling
    www.aavid.com
