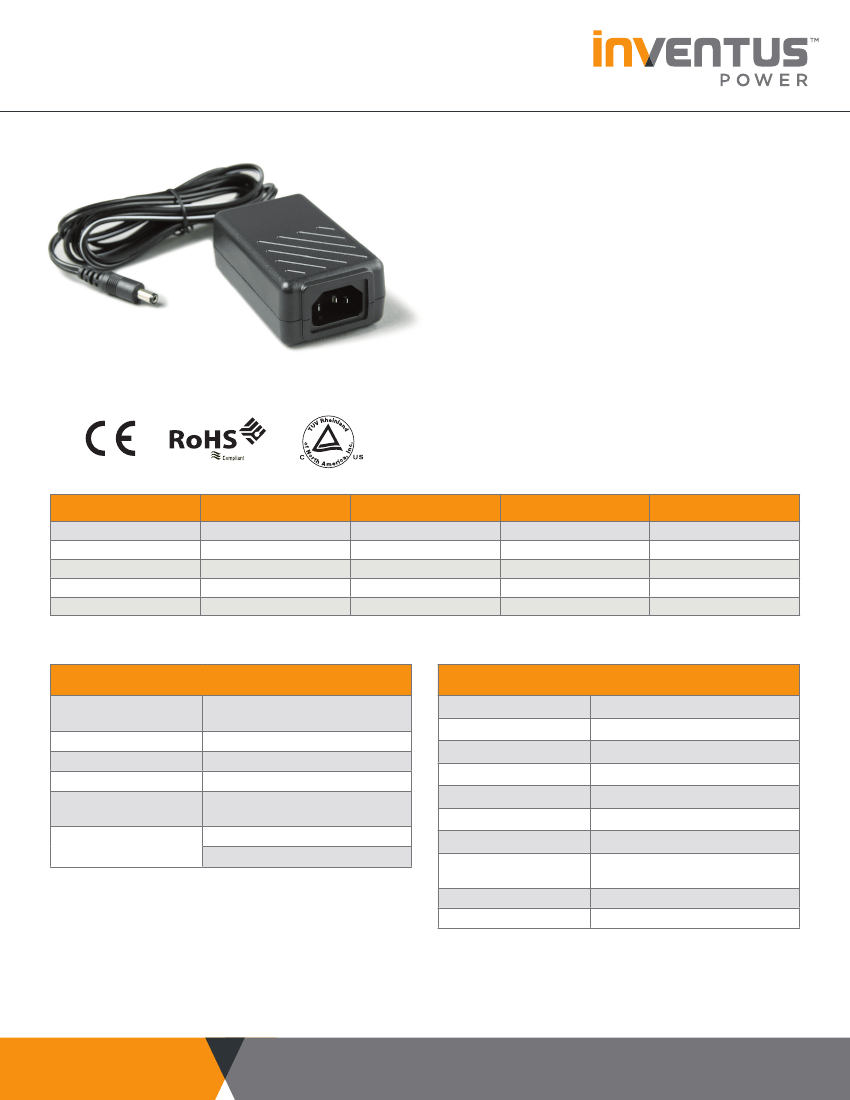

IPD50 SERIES
CLASS I
50 Watt
ITE Desktop Power Supply
•
•
•
•
•
•
•
Safety Approval - EN60950-1 Class I
High Efficiency: Level VI
Hold-up Time >10ms at full load
Fully Regulated DC output
EuP Directive Compliant
LED Indicator
1-Year Limited Warranty
Model Number
IPD5012-760
IPD5015-760
IPD5018-760
IPD5019-760
IPD5024-760
Output Voltage
12.0V
15.0V
18.0V
19.0V
24.0V
Output Current
4.25A
3.3A
2.8A
2.6A
2.1A
Total Regulation
1
±5%
±5%
±5%
±5%
±5%
Typical Efficiency
2
89.6%
89.9%
90.2%
90.3%
90.6%
Notes
1) Includes initial setting, line regulation, load regulation, and thermal drift.
2) Typical at 115VAC
INPUT
Input Voltage
Input Frequency
Input Current
Inrush Current
Zero Load
Power Consumption
Earth Leakage Current
(Typical)
85
– 264VAC
100 – 240VAC Nominal
47 – 63Hz
<1.0A rms
<60A at 230VAC cold start
<0.1W
<100μA @ 132VAC @ 60Hz
<150μA @ 264VAC @ 60Hz
OUTPUT
Output Voltage
Total Regulation
Minimum Load
Start-Up Delay
Hold-Up Time
Ripple & Noise
Over Voltage Protection
Over Temperature
Protection
Over Current Protection
Short Circuit Protection
See Table
+/-5%
No minimum load required
<1.5s
>10ms at any input voltage
<1% pk-pk **
112 – 135%
First Stage - Recoverable; plus
2nd stage - Non Recoverable
108 – 180%
Shutdown, auto-restart (hiccup mode)
Notes
**Ripple and noise measured with 20MHz bandwidth; 10μF tantalum capacitor in parallel with a 0.1μF ceramic capacitor.
Inventus Power
1200 Internationale Parkway
Woodridge, IL 60517, USA
Inventus Power Technical Support:
powersupplies@inventuspower.com
IPD50 SERIES - CLASS I
50 Watt
ITE Desktop Power Supply
General
Efficiency
Avg. Efficiency 90.7% @
115VAC; 89.8% @ 230VAC
min. 100,000 hours calculated
4.48” (114.2mm) x 2.26”
(57.5mm) x 1.43” (36.5mm)
0.4 lbs (0.20 Kg)
3
Environmental
Operating
Temperature
Storage
Temperature
Relative
Humidity
Cooling
Altitude
(Operating)
0 – 60°C (Full load to 40°C,
derate linearly to 50% load at
60°C)
-40°C to +85°C
5-95%, non-condensing
Natural Convection
Rated to 5000M
EMC & Safety
Emissions
Immunity
FCC class B, CISPR22
class B EN6100-3-2, 3
EN61000-4-2, -3, -4, -5, -6, -8,
-11
cTUVus
UL 606950-1
Certified by
TUV to the
following:
CAN/CSA-22.2 No.950
CB per IEC60950-1 2nd edition
CE marked to LVD directive and
RoHS II directive
MTBF
Size
Weight
Power Density 3.43W/in
Input Configuration
Standard
Input Cable
Not Provided
Output Configuration
Standard
Output Cable
Cord Size
Connector
(PSU side)
Mating
Connector
4ft
2x16awg zip
Switchcraft 760 or equivalent
Switchcraft 760 or equivalent
Output Pin Assignments
Center
Outside
+V1
Return
Connection on
Power Supply
IEC 320 C14 Receptacle
Body

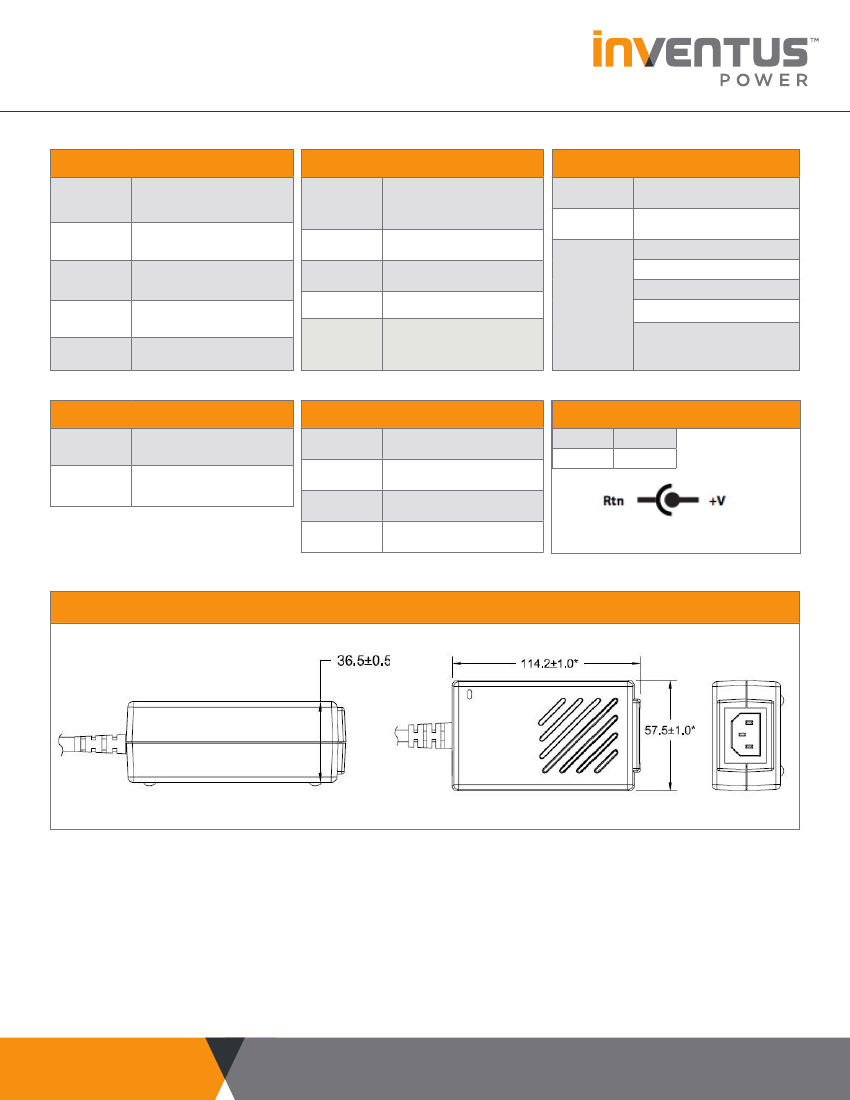

Mechanical Drawing
Inventus Power
1200 Internationale Parkway
Woodridge, IL 60517, USA
IP_DS-IPD50-I_1-24-17_01
inventuspower.com
©2017 Inventus Power, All rights reserved.
