5866405206F Overview

LED MINI BAY CLUSTER 120V BLUE

5866405206F Parametric

Parameter Name	Attribute value
Replaceable lamp	Multiple micro bayonet lights
size/dimensions	T - 3 1/4
wavelength	472nm
Voltage - Forward (Vf) (Typical)	120VAC
Substrate type	Micro bayonet (BA9S)
color	blue
millicandela level	565mcd
Configuration	single
application	Incandescent lamp replacement parts, pilot lamps

Preview

Download Datasheet

View All

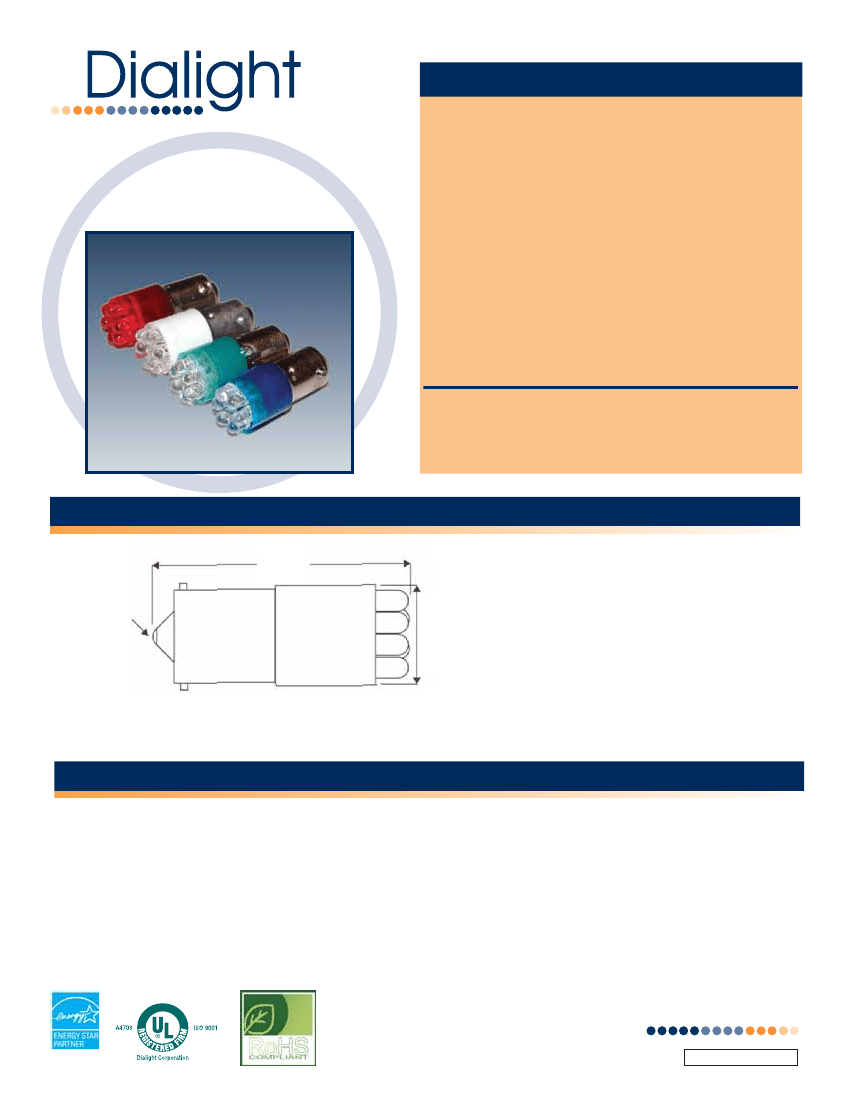

FEATURES / BENEFITS

RoHS Compliant

586 Series -

Sunlight Readable

CLUSTER BASED LED

T3 1/4 Miniature Bayonet (BA9s)

High brightness with low current draw - uses up to

90% less energy than an incandescent

Long life - up to 100K hours

True non-polarized configurations available

No heat generated

Mounts directly into industry standard socket

Resistant to shock and vibration

Incorporating

AlInGaP

InGaN

technology

Super bright LED cluster design

Available in 6, 14, and 28 VDC, 120 VAC

Colors include Red, Green, Yellow, Blue, White

Dialight's line of based LED lamps is designed to directly

replace many popular subminiature and miniature incandescent

lamps. The benefits of LED technology over incandescent are

significant: They offer long life, are shock resistant, withstand

vibration and provide energy conservation.

SPECIFICATIONS

1.09

[27.70]

CENTER

CONTACT (+)

FOR

POLARIZED

VERSION

Operating Voltages: 6,14, 28 VDC, 120 VAC

Polarized and non-polarized available

Operating temperature: -30

to +

.430

[10.92]

Storage temperature: -40

to +

100

Replaces incandescent lamp numbers*: 44,

47, 313, 755,1815, 1819, 1847, 1850, 1866,

1889, 1891, 1892, 1893 and 1895

* See Dialight’s Incandescent lamp/based LED

cross reference for a complete listing

Measurements are typical

Dimensions are inches [mm]

CONSIDERATIONS

Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED.

If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,

which will optimize the light output.

If you are unfamiliar with the polarity of the circuit, Dialight recommends using a non-polarized version.

Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.

Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.

Dialight does not recommend that based LED lamps be used in neon sockets.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDELBA9SSR001_B
