QBD56XXZ_series
0.56” Dual Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
QT-Brightek Display Series
0.56” Dual Digit Display
Part No.: QBD56XXZ
XX= Color
Z= 1: Common Cathode
Z = 0: Common Anode
Product: QBD56XXZ_series
Date: September 19, 2015
Version# 2.2
Page 1 of 11
QBD56XXZ_series
0.56” Dual Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Table of Contents:
Introduction ........................................................................................................................................... 3
Electrical / Optical Characteristic (Ta=25
o
C) ........................................................................................ 4
Absolute Maximum Rating .................................................................................................................... 4
Pin Configuration .................................................................................................................................. 5
Characteristic Curves ............................................................................................................................ 6
Solder Profile ........................................................................................................................................ 8
Packing ................................................................................................................................................. 9
Ordering Information ........................................................................................................................... 10
Revision History .................................................................................................................................. 11
Disclaimer ........................................................................................................................................... 11
Product: QBD56XXZ_series
Date: September 19, 2015
Version# 2.2
Page 2 of 11
QBD56XXZ_series
0.56” Dual Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Introduction
Feature:
0.56” dual digit seven segments display
Low power consumption
Packed in foam
AlInGaP Technology R/S/Y/AG/O
InGaN Technology IB/IG
Z= 1: Common Cathode or 0:Common Anode
XX= color
Description:
These 0.56” Dual-digit, seven-segment displays are
made with white segments and a grey surface. The
viewing distance is up to seven meters.
Application:
Instrument panels
Indoor/Outdoor display board
Audio equipment
Certification & Compliance:
TS16949
ISO9001
RoHS Compliant

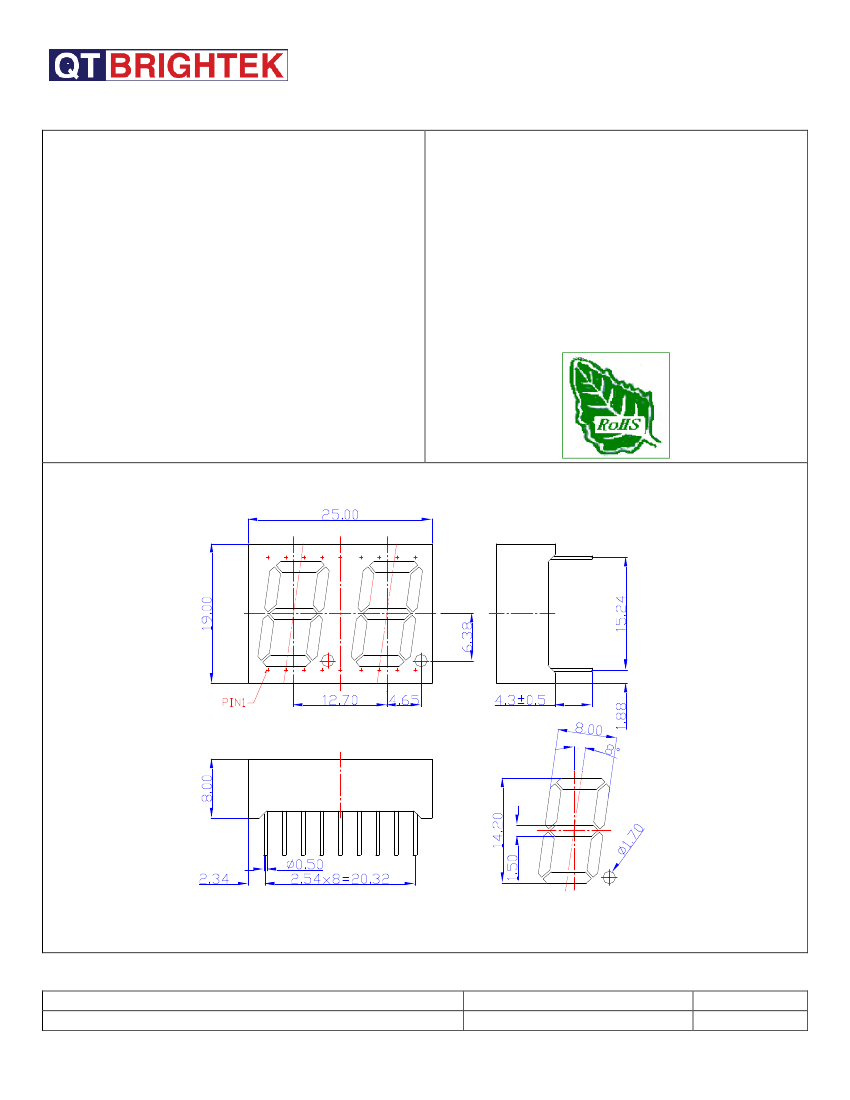

Dimension:
PART NO.
DATE CODE
Units: mm / tolerance = +/-0.25mm
Product: QBD56XXZ_series
Date: September 19, 2015
Version# 2.2
Page 3 of 11
QBD56XXZ_series
0.56” Dual Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Electrical / Optical Characteristic (Ta=25
o
C)
Product
CC
QBD56R1
QBD56S1
QBD56Y1
QBD56O1
CA
Material Color I
F
(mA)
20
20
20
20
20
20
20
V
F
(V)
Typ.
2.0
2.0
2.0
2.0
2.1
3.2
3.0
Max.
2.6
2.6
2.6
2.6
2.6
4.0
4.0
Min.
-
-
-
-
-
-
-
λ
D
(nm)
Typ.
624
639
590
606
571
525
465
Max.
-
-
-
-
-
-
-
I
V
(mcd)
Typ.
60
30
60
60
25
160
60
QBD56R0 AllnGaP
Red
Deep
QBD56S0 AlInGaP
Red
QBD56Y0 AllnGaP Yellow
QBD56O0 AlInGaP Orange
Yellow
QBD56AG1 QBD56AG0 AllnGaP
Green
True
QBD56IG1 QBD56IG0 InGaN
Green
QBD56IB1 QBD56IB0 InGaN
Blue
Absolute Maximum Rating
Material P
d
(mW)
AllnGaP
70
Derating liner from 25
I (mA) I
PF
(mA)*
o
C per dice (mA/
o
C)
F
0.33
0.4
25
30
90
100
V
R
(V)
5
5
T
OP
(
o
C)
-25 to +85
-25 to +85
T
ST
(
o
C)
-25 to +85
-25 to +85
InGaN
120
*Duty 1/10 @ 1KHz
Product: QBD56XXZ_series
Date: September 19, 2015
Version# 2.2
Page 4 of 11
QBD56XXZ_series
0.56” Dual Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Pin Configuration
CC
CA
Product: QBD56XXZ_series
Date: September 19, 2015
Version# 2.2
Page 5 of 11
/201809306750751_pdf/pg_0001.png)
