ATFC-0402-1N7B-T: DescriptionFIXED IND 1.7NH 560MA 250 MOHM; CategoryPassive components; File Size91KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ATFC-0402-1N7B-T Overview

FIXED IND 1.7NH 560MA 250 MOHM

ATFC-0402-1N7B-T Parametric

Parameter Name	Attribute value
type	thin film
Material - Core	ceramics
inductance	1.7nH
Tolerance	±0.1nH
Rated current	560mA
Current - saturation value	-
shield	No shielding
DC resistance (DCR)	250 milliohms max.
Q value at different frequencies	13 @ 500MHz
Frequency - Self-resonance	10GHz
grade	-
Operating temperature	-45°C ~ 85°C
Inductor Frequency - Test	500kHz
Installation type	surface mount
Package/casing	0402 (1005 Metric)
Supplier device packaging	0402 (1005 Metric)
size/dimensions	0.039" long x 0.020" wide (1.00mm x 0.50mm)
Height - Installation (maximum)	0.015"（0.37mm）

Preview

Download Datasheet

View All

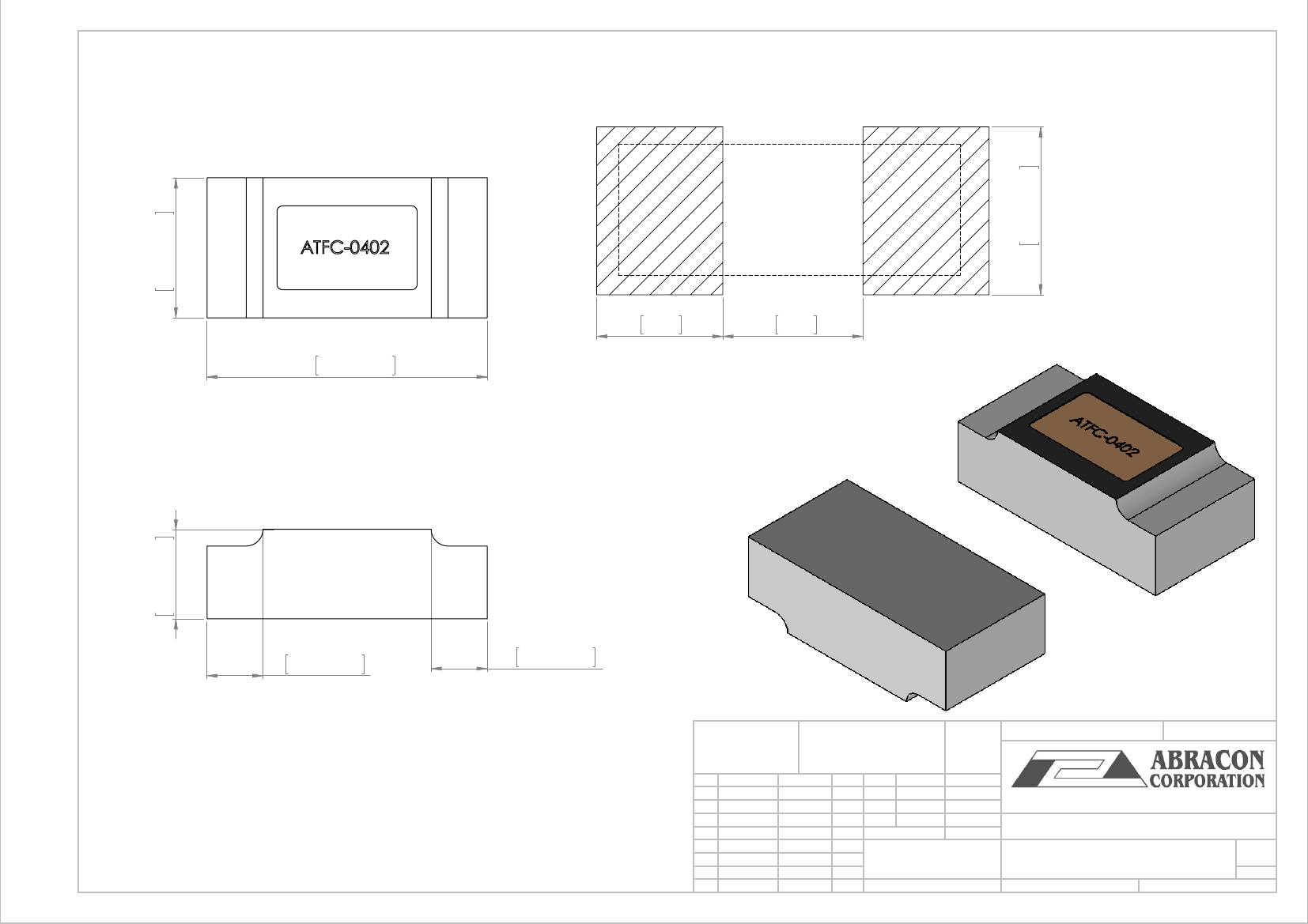

Recommended Land Pattern

0.020±0.002

0.50±0.05

0.039±0.002

1.00±0.05

0.02

0.45

0.02

0.50

0.012±0.002

0.32±0.05

0.01±0.00

0.20±0.05

0.008±0.002

0.20±0.05

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCH(MM)

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

NAME

DRAWN

CHK'D

APPV'D

MFG

Q.A

SAAZVAT

XXXXXX

FINISH:

DEBUR AND

BREAK SHARP

EDGES

0.024±0.008

0.60±0.20

DO NOT SCALE DRAWING

REVISION

-

SIGNATURE

DATE

30332 Esperanza, Rancho Santa margarita, California 92688

TITLE:

Thin film inductor

MATERIAL:

DWG NO.

ATFC-0402

SHEET 1 OF 1

A3

WEIGHT:

SCALE:90:1
