TC74AC08P/F/FT
TOSHIBA CMOS Digital Integrated Circuit
Silicon Monolithic
TC74AC08P, TC74AC08F, TC74AC08FT
Quad 2-Input AND Gate
The TC74AC08 is an advanced high speed CMOS 2-INPUT
AND GATE fabricated with silicon gate and double-layer metal
wiring C
2
MOS technology.
It achieves the high speed operation similar to equivalent
Bipolar Schottky TTL while maintaining the CMOS low power
dissipation.
The internal circuit is composed of 2 stages including buffer
output, which provide high noise immunity and stable output.
All inputs are equipped with protection circuits against static
discharge or transient excess voltage.
TC74AC08P
Features
•
•
•
•
High speed: t
pd
=
3.4 ns (typ.) at V
CC
=
5 V
Low power dissipation: I
CC
=
4
μA
(max) at Ta
=
25°C
High noise immunity: V
NIH
=
V
NIL
=
28% V
CC
(min)
Symmetrical output impedance:
|I
OH
|
=
I
OL
=
24 mA (min)
Capability of driving 50
Ω
transmission lines.
Balanced propagation delays: t
pLH
∼
t
pHL
−
Wide operating voltage range: V
CC
(opr)
=
2 V to 5.5 V
Pin and function compatible with 74F08
TC74AC08F
•
•
•
TC74AC08FT
Weight
DIP14-P-300-2.54
SOP14-P-300-1.27A
TSSOP14-P-0044-0.65A
: 0.96 g (typ.)
: 0.18 g (typ.)
: 0.06 g (typ.)
Start of commercial production
1987-05
1
2014-03-01
TC74AC08P/F/FT
Pin Assignment
IEC Logic Symbol
1A
1B
2A
2B
3A
3B
4A
4B
(1)
(2)
(4)
(5)
(9)
(10)
(12)
(13)
&
(3)
(6)
(8)
(11)
1A
1B
1Y
2A
2B
2Y
GND
1
2
3
4
5
6
7
(top view)
14
13
12
11
10
9
8
V
CC
4B
4A
4Y
3B
3A
3Y
1Y
2Y
3Y
4Y
Truth Table
A
L
L
H
H
B
L
H
L
H
Y
L
L
L
H
Absolute Maximum Ratings (Note 1)
Characteristics
Supply voltage range
DC input voltage
DC output voltage
Input diode current
Output diode current
DC output current
DC V
CC
/ground current
Power dissipation
Storage temperature
Symbol
V
CC
V
IN
V
OUT
I
IK
I
OK
I
OUT
I
CC
P
D
T
stg
Rating
−0.5
to 7.0
−0.5
to V
CC
+ 0.5
−0.5
to V
CC
+ 0.5
±20
±50
±50
±100
500 (DIP) (Note 2)/180 (SOP/TSSOP)
−65
to 150
Unit
V
V
V
mA
mA
mA
mA
mW
°C
Note 1: Exceeding any of the absolute maximum ratings, even briefly, lead to deterioration in IC performance or
even destruction.
Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly
even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute
maximum ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 2: 500 mW in the range of Ta =
−40°C
to 65°C. From Ta = 65°C to 85°C a derating factor of
−10
mW/°C
should be applied up to 300 mW.
2
2014-03-01
TC74AC08P/F/FT
Operating Ranges (Note)
Characteristics
Supply voltage
Input voltage
Output voltage
Operating temperature
Input rise and fall time
Symbol
V
CC
V
IN
V
OUT
T
opr
dt/dV
Rating
2.0 to 5.5
0 to V
CC
0 to V
CC
−40
to 85
0 to 100 (V
CC
= 3.3 ± 0.3 V)
0 to 20 (V
CC
= 5 ± 0.5 V)
Unit
V
V
V
°C
ns/V
Note:
The operating ranges must be maintained to ensure the normal operation of the device.
Unused inputs must be tied to either V
CC
or GND.
Electrical Characteristics
DC Characteristics
Test Condition
Characteristics
Symbol
V
CC
(V)
2.0
High-level input
voltage
V
IH
―
3.0
5.5
2.0
Low-level input
voltage
V
IL
―
3.0
5.5
2.0
I
OH
=
−50 μA
High-level output
voltage
V
OH
V
IN
= V
IH
3.0
4.5
I
OH
=
−4
mA
I
OH
=
−24
mA
I
OH
=
−75
mA
(Note)
3.0
4.5
5.5
2.0
I
OL
= 50
μA
Low-level output
voltage
V
OL
V
IN
= V
IH
or
I
OL
= 12 mA
V
IL
I
OL
= 24 mA
I
OL
= 75 mA
Input leakage
current
Quiescent supply
current
I
IN
I
CC
V
IN
= V
CC
or GND
V
IN
= V
CC
or GND
(Note)
3.0
4.5
3.0
4.5
5.5
5.5
5.5
Min
1.50
2.10
3.85
―
―
―
1.9
2.9
4.4
2.58
3.94
―
―
―
―
―
―
―
―
―
Ta = 25°C
Typ.
―
―
―
―
―
―
2.0
3.0
4.5
―
―
―
0.0
0.0
0.0
―
―
―
―
―
Max
―
―
―
0.50
0.90
1.65
―
―
―
―
―
―
0.1
0.1
0.1
0.36
0.36
―
±0.1
4.0
Ta =
−40
to 85°C
Min
1.50
2.10
3.85
―
―
―
1.9
2.9
4.4
2.48
3.80
3.85
―
―
―
―
―
―
―
―
Max
―
―
―
0.50
0.90
1.65
―
―
―
―
―
―
0.1
0.1
0.1
0.44
0.44
1.65
±1.0
40.0
μA
μA
V
V
V
V
Unit
Note:
This spec indicates the capability of driving 50
Ω
transmission lines.
One output should be tested at a time for a 10 ms maximum duration.
3
2014-03-01
TC74AC08P/F/FT
AC Characteristics
(C
L
= 50 pF, R
L
= 500
Ω,
input: t
r
= t
f
= 3 ns)
Characteristics
Symbol
t
pLH
t
pHL
C
IN
C
PD
Test Condition
V
CC
(V)
Propagation delay
time
Input capacitance
Power dissipation
capacitance
―
―
(Note)
3.3 ± 0.3
5.0 ± 0.5
Min
―
―
―
―
Ta = 25°C
Typ.
5.8
4.5
5
71
Max
9.8
7.0
10
―
Ta =
−40
to 85°C
Min
1.0
1.0
―
―
Max
11.3
8.0
10
―
ns
pF
pF
Unit
Note:
C
PD
is defined as the value of the internal equivalent capacitance which is calculated from the operating
current consumption without load.
Average operating current can be obtained by the equation:
I
CC (opr)
= C
PD
·V
CC
·f
IN
+ I
CC
/4 (per gate)
4
2014-03-01
TC74AC08P/F/FT

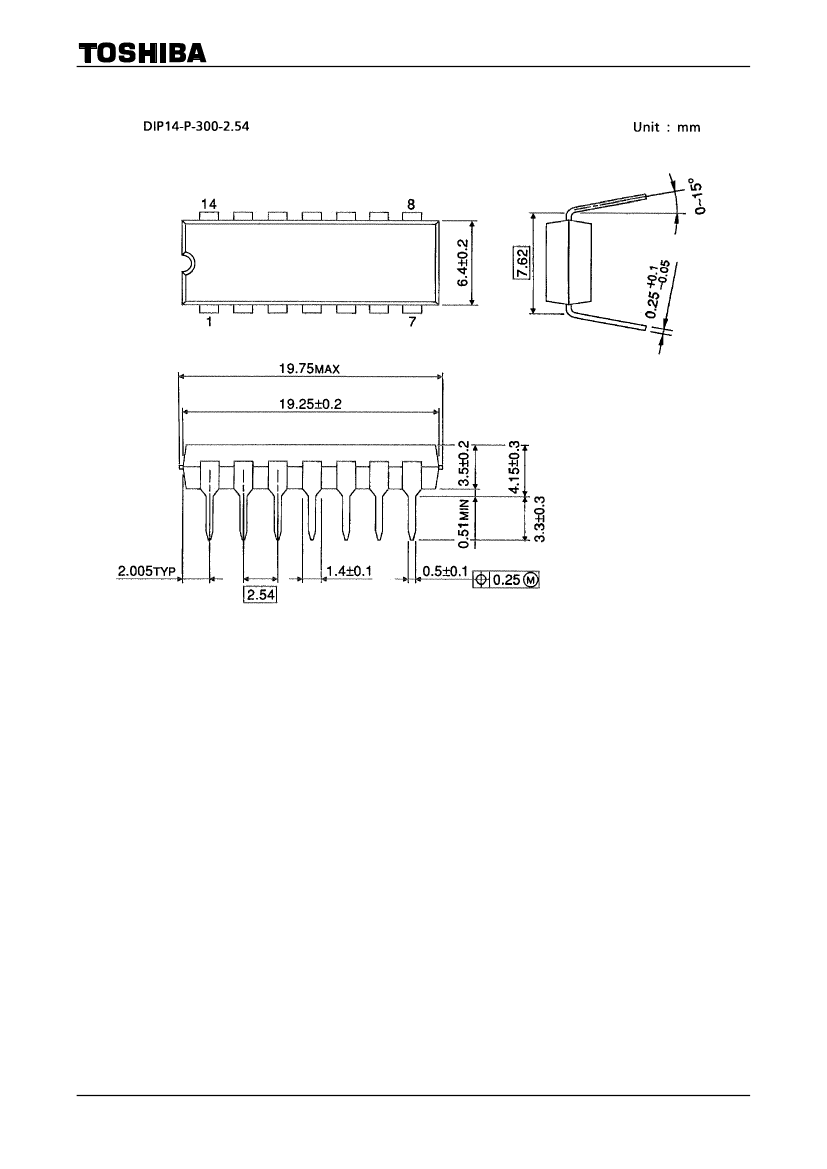

Package Dimensions
Weight: 0.96 g (typ.)
5
2014-03-01
