UG3KB05GTB: DescriptionBRIDGE RECT 1PHASE 50V 3A D3K; Categorysemiconductor Discrete semiconductor; File Size400KB，5 Pages; ManufacturerSMC; Websitehttp://www.smc-diodes.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

UG3KB05GTB Overview

BRIDGE RECT 1PHASE 50V 3A D3K

UG3KB05GTB Parametric

Parameter Name	Attribute value
Diode type	Simplex
technology	standard
Voltage - Peak Reverse (Maximum)	50V
Current - average rectification (Io)	3A
Voltage at different If - Forward (Vf	1.1V @ 3A
Current at different Vr - Reverse leakage current	5µA @ 50V
Operating temperature	-55°C ~ 150°C（TJ）
Installation type	Through hole
Package/casing	4-ESIP
Supplier device packaging	D3K

Preview

Download Datasheet

View All

UG3KB05

THRU

UG3KB100

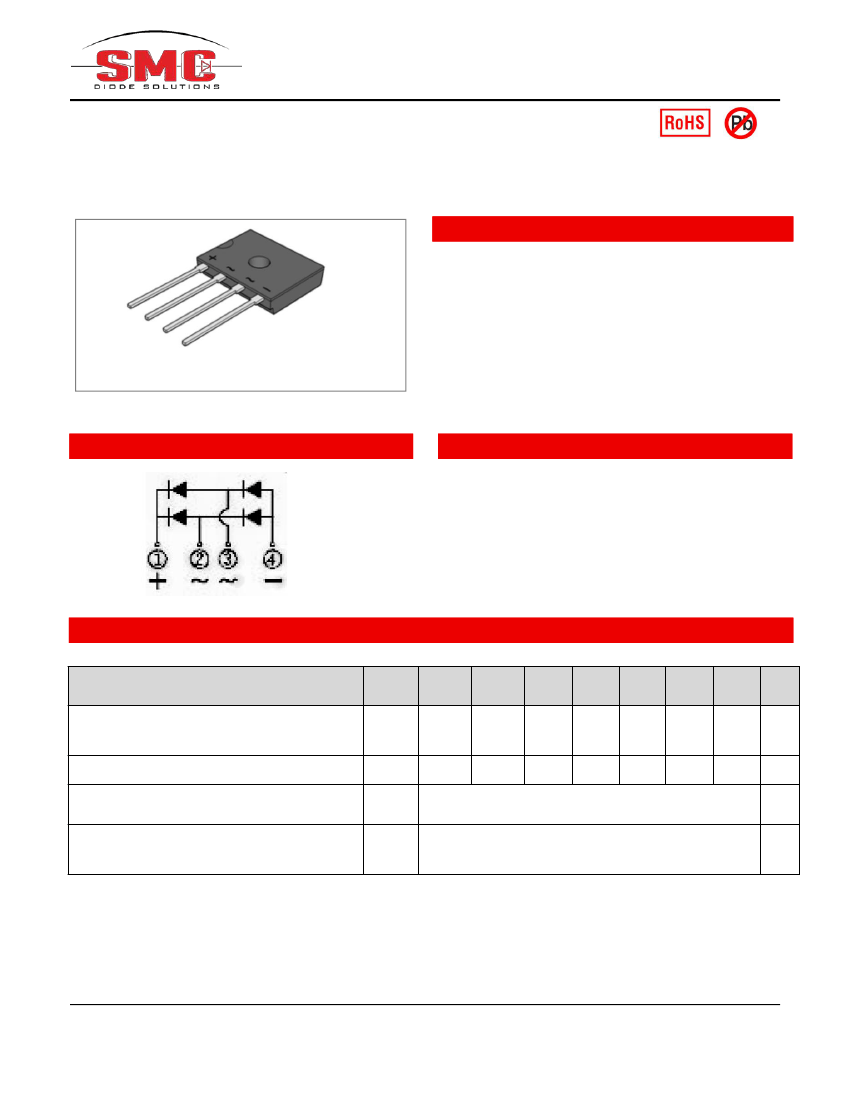

Technical Data

Data Sheet N1921, Rev. A

UG3KB05 THRU UG3KB100

Single-Phase 3.0A Glass Passivated Bridge Rectifier

Features



Glass passivated die construction

Low forward voltage drop

High current capability

High surge current capability

Designed for surface mount application

Plastic material-UL flammability 94V-0

This is a Pb − Free Device

All SMC parts are traceable to the wafer lot

Additional testing can be offered upon request

D3K

Circuit Diagram

Mechanical Data



Case: D3K, Molded plastic

Terminals: Plated leads solderable per MIL-STD-202,

Method 208

Polarity: as marked on case

Mounting Position: Any

Lead Free: For RoHS / Lead Free Version

Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.

Type Number

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Without heat sink @T

= 30°C

Output Current With heat sink @T

= 140°C

Non-Repetitive Peak Forward Surge Current

8.3ms Single half sine-wave superimposed on rated

load (JEDEC Method)

Symbol

RRM

RWM

RMS

FSM

UG3K

B05

UG3K

B10

100

UG3K

B20

200

140

UG3K UG3K UG3K

B40

B60

B80

400

280

1.5

3.0

600

420

800

560

UG3K

Units

B100

1000

700

Maximum Ratings:

=25°C unless otherwise specified



China - Germany - Korea - Singapore - United States



http://www.smc-diodes.com - sales@ smc-diodes.com



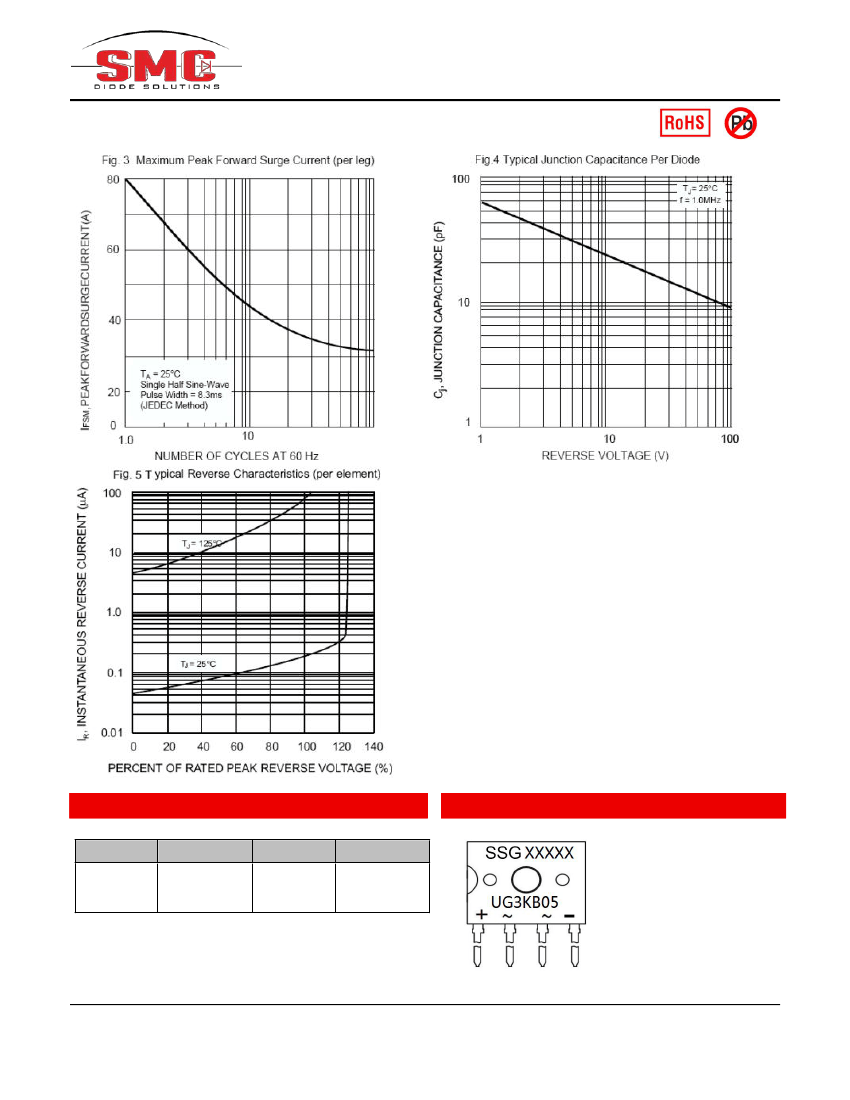

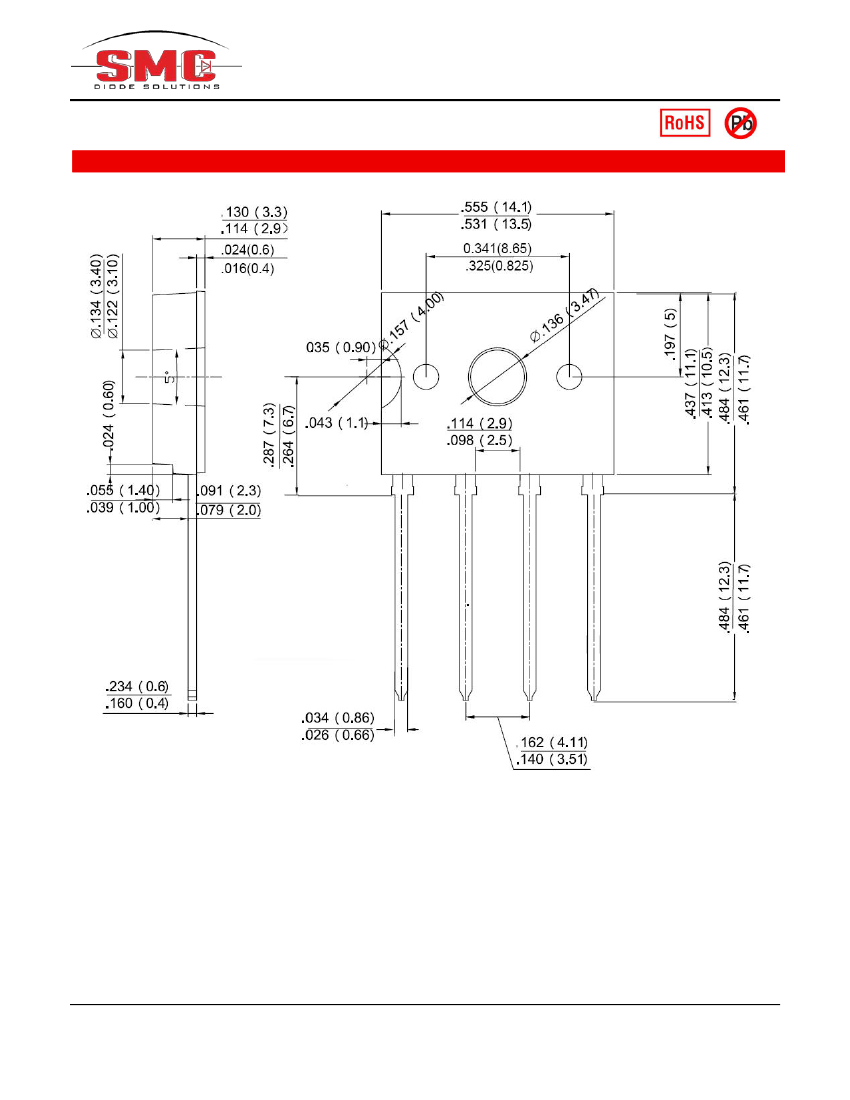

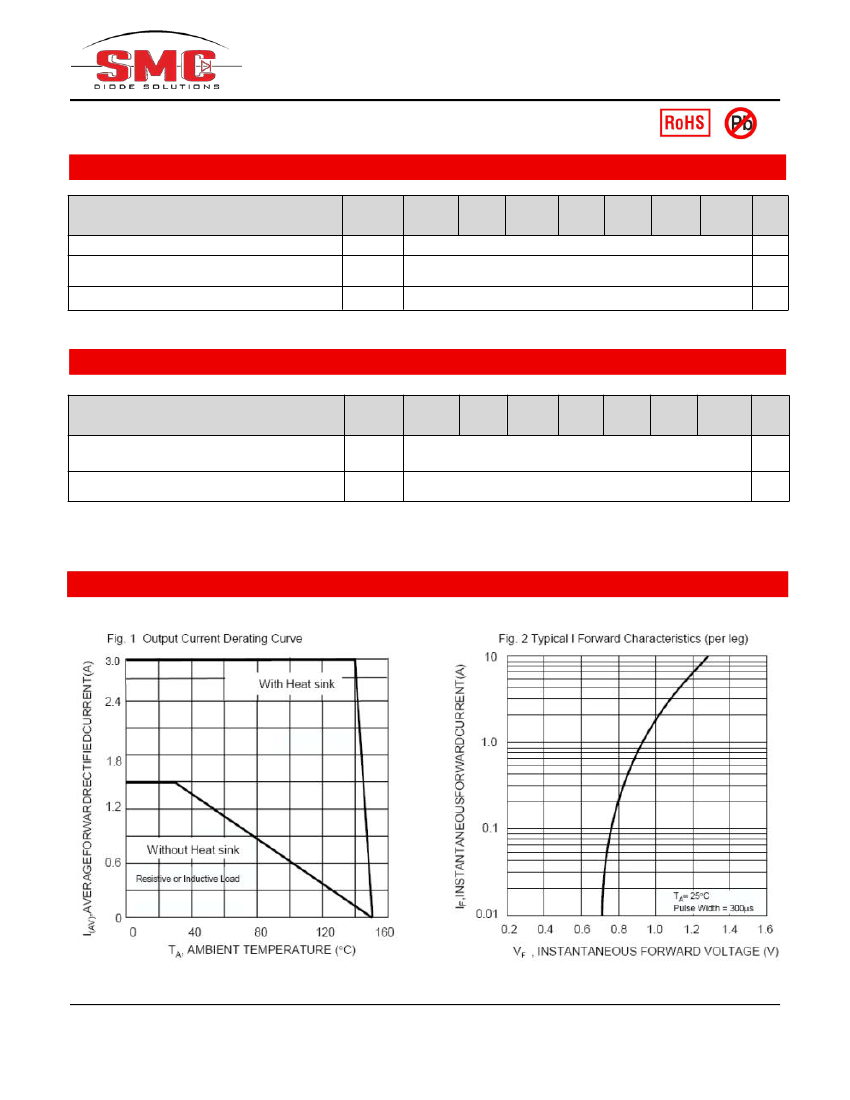

UG3KB05

THRU

UG3KB100

Technical Data

Data Sheet N1921, Rev. A

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product

characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of

the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall

SMC Diode Solutions

be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s).

SMC Diode Solution

assumes no responsibility for any intellectual property

claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall

SMC Diode Solutions

be liable for any failure in a semiconductor device or any secondary damage resulting from use

at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or

SMC Diode Solutions.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of

SMC

Diode Solutions.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.



China - Germany - Korea - Singapore - United States



http://www.smc-diodes.com - sales@ smc-diodes.com



UG3KB05GTB Related Products

	UG3KB05GTB	UG3KB60GTB	UG3KB100GTB	UG3KB10GTB	UG3KB20GTB	UG3KB40GTB	UG3KB80GTB
Description	BRIDGE RECT 1PHASE 50V 3A D3K	BRIDGE RECT 1PHASE 600V 3A D3K	BRIDGE RECT 1PHASE 1KV 3A D3K	BRIDGE RECT 1PHASE 100V 3A D3K	BRIDGE RECT 1PHASE 200V 3A D3K	BRIDGE RECT 1PHASE 400V 3A D3K	BRIDGE RECT 1PHASE 800V 3A D3K
Diode type	Simplex	Simplex	Simplex	Simplex	Simplex	Simplex	Simplex
technology	standard	standard	standard	standard	standard	standard	standard
Voltage - Peak Reverse (Maximum)	50V	600V	1kV	100V	200V	400V	800V
Current - average rectification (Io)	3A	3A	3A	3A	3A	3A	3A
Voltage at different If - Forward (Vf	1.1V @ 3A	1.1V @ 3A	1.1V @ 3A	1.1V @ 3A	1.1V @ 3A	1.1V @ 3A	1.1V @ 3A
Current at different Vr - Reverse leakage current	5µA @ 50V	5µA @ 600V	5µA @ 1000V	5µA @ 100V	5µA @ 200V	5µA @ 400V	5µA @ 800V
Operating temperature	-55°C ~ 150°C（TJ）	-55°C ~ 150°C（TJ）	-55°C ~ 150°C（TJ）	-55°C ~ 150°C（TJ）	-55°C ~ 150°C（TJ）	-55°C ~ 150°C（TJ）	-55°C ~ 150°C（TJ）
Installation type	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole	Through hole
Package/casing	4-ESIP	4-ESIP	4-ESIP	4-ESIP	4-ESIP	4-ESIP	4-ESIP
Supplier device packaging	D3K	D3K	D3K	D3K	D3K	D3K	D3K
