SQZ500JB-1R5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> SQZ500JB-1R5

SQZ500JB-1R5: DescriptionRES 5W 5% TH; CategoryPassive components; File Size205KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SQZ500JB-1R5 Overview

RES 5W 5% TH

SQZ500JB-1R5 Parametric

Parameter Name	Attribute value
resistance	1.5 Ohms
Tolerance	±5%
Power (W)	5W
component	Winding
characteristic	Anti-arc, flame-resistant, moisture-proof, safe
Temperature Coefficient	±300ppm/°C
Operating temperature	-55°C ~ 155°C
Package/casing	Radial - 4 leads
Supplier device packaging	Radial leads
size/dimensions	1.102" long x 0.394" wide (28.00mm x 10.00mm)
Height - Installation (maximum)	0.433"（11.00mm）
Number of terminals	2

Preview

Download Datasheet

View All

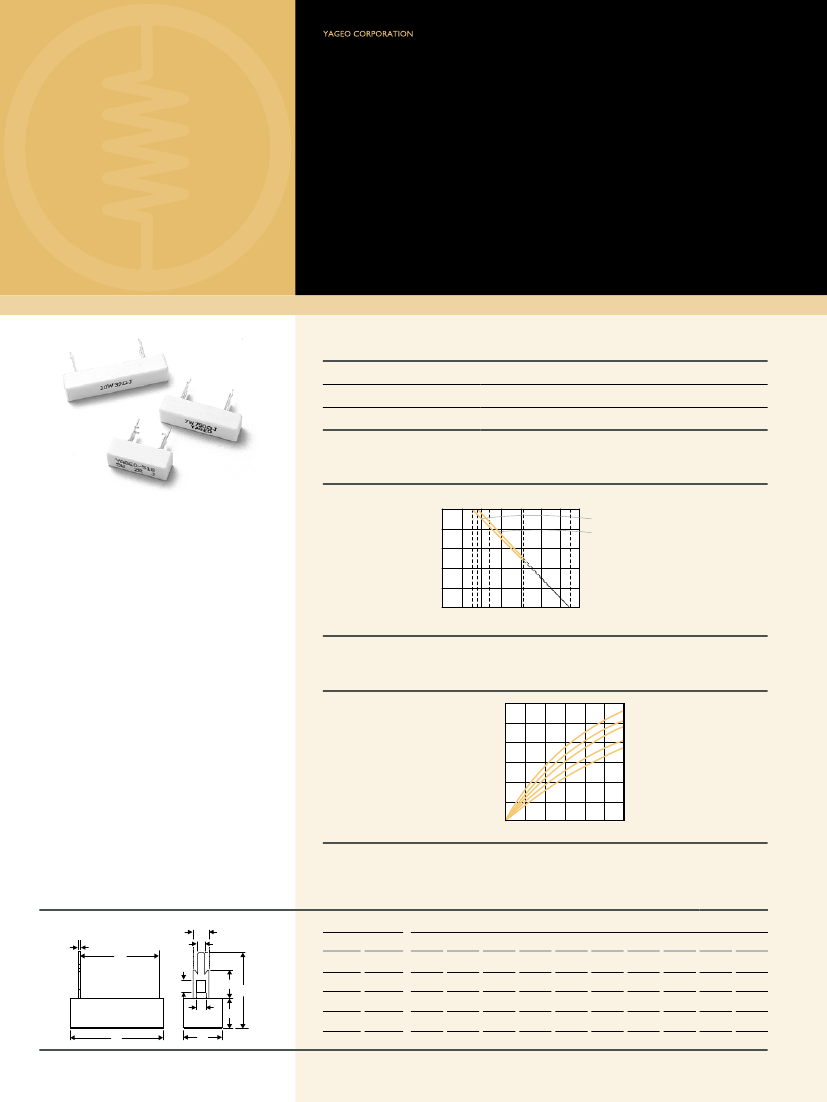

Through-hole resisTors

Cement Resistors

Radial Terminal Type

Normal Style [ SQZ Series ]

Non-Inductive Style [ NSZ Series ]

FeATures

Power Rating

Resistance Tolerance

T.C.R.

5W, 7W, 10W, 15W, 20W

±5%

±300ppm/°C

DerATiNg CurVe

Rated Load (%)

25 40 70

100

15W-20W

-50

100 150 200 250 300

5W-10W

155

275 °C

iNTroDuCTioN

The materials used and the construction

techniques ensure excellent flame resistance,

arc resistance and moisture resistance as well

as self-extinguishing capabilities. They will

withstand the most rigorous loading test.

As resistors in radio and television receivers,

hazardous conditions such as smoking and

redheat can be completely prevented by the

proper choice of power resistors.

Ambient Temperature (°C)

TeMPerATure rise

Temperature Rise (°C)

300

250

200

150

100

100 120

20W

15W

10W

Rated Load (%)

DiMeNsioNs

0.5

Unit: mm

sTYle

SQZ500 NSZ500

SQZ700 NSZ700

DiMeNsioN

28.0±1.5 10.0±1.0 10.0±1.0 15.0±1.5 25.0±1.5 10.0±1.0 4.0±0.2 2.0±0.2 5.0±0.2 1.5±0.2

35.0±1.5 10.0±1.0 10.0±1.0 22.5±1.5 25.0±1.5 10.0±1.0 4.0±0.2 4.0±0.2 5.0±0.2 1.5±0.2

Normal Non-ind. l

SQZ10A NSZ10A

48.0±1.5 9.5±1.0 10.0±1.0 32.0±1.5 25.0±1.5 10.5±1.0 4.0±0.2 4.0±0.2 5.0±0.2 1.5±0.2

SQZ15A NSZ15A

48.0±1.5 12.5±1.0 13.0±1.0 32.0±1.5 35.0±1.5 15.0±1.5 7.0±0.2 4.0±0.2 10.0±0.2 3.0±0.2

SQZ20A NSZ20A

63.0±1.5 12.5±1.0 12.5±1.0 42.5±1.5 35.0±1.5 15.0±1.5 7.0±0.2 4.0±0.2 10.0±0.2

3.0±0.2
