VECTORBORD
®
CIRCBORD
TM

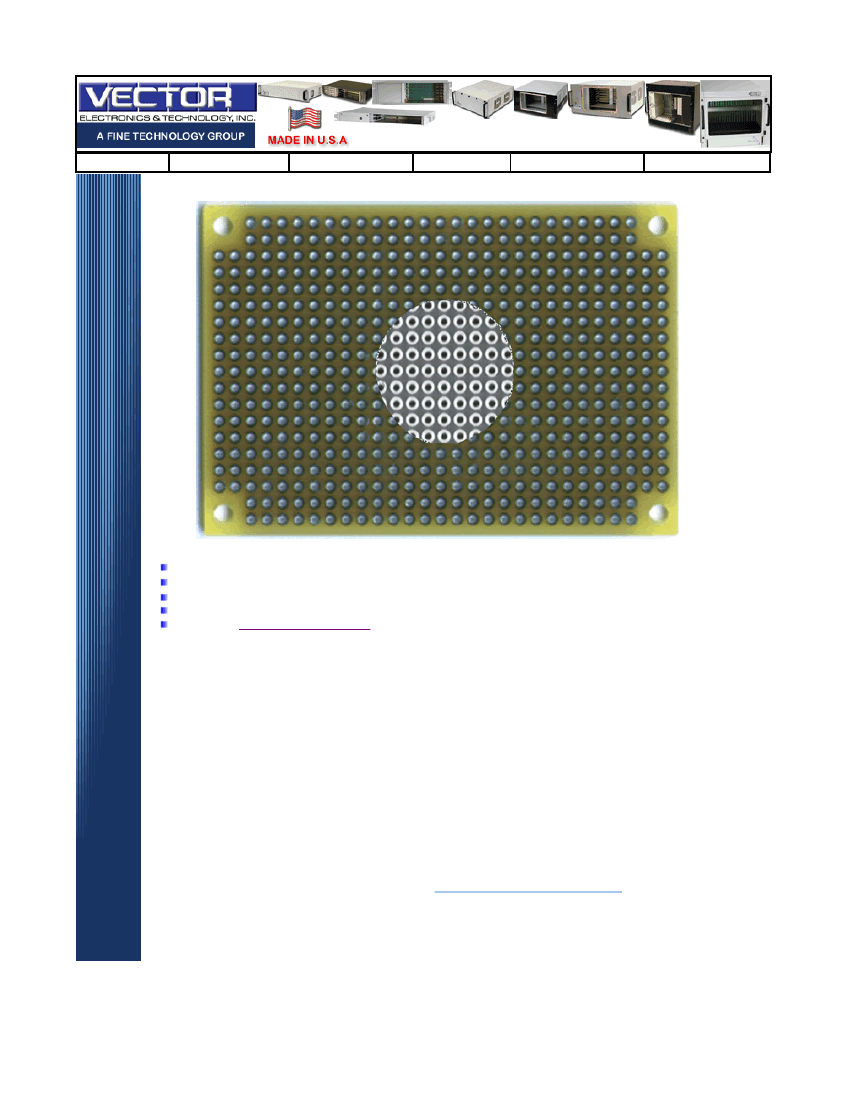

PART NO. :8029
Description :
2.0" X 3.0", Hole Dia.: 0.042", Grid: 0.100" X 0.100" with 0.125" diameter corner mounting holes
Pad-Per-Hole 2 Sides.Plated-thru holes
0.080" diameter, isolated solder pad around each hole on both sides
Unrestricted component placement and extended area for high density applications
Layout paper
.......... Layout Paper(PDF)
Circuit Pattern :
16 Pin DIP Capacity :
Hole Diameter :
Grid :
Dimension { H, W, T } :
Material :
Wire-Wrap Terminals :
Solder Terminals :
Wire-Wrap Socket Pins :
Pad-Per-Hole 2 Sides, with 0.125" diameter corner mounting holes
72
0.042" { 1.0668 mm }
0.100" X 0.100" { 2.54mm X 2.54mm }
2.0" X 3.0" X 0.062"
FR4 Epoxy Glass { MIL - P13949 type Gf }
T44, T46, T49,T68
T42-1, K24C
R32
Nema Grade :
UL Flammability Class :
FR4
94V - 0
