Omnidirectional Antenna
824-896 MHz
FG8243
OMNIDIRECTIONAL ANTENNAS 824-896 MHz FG8243

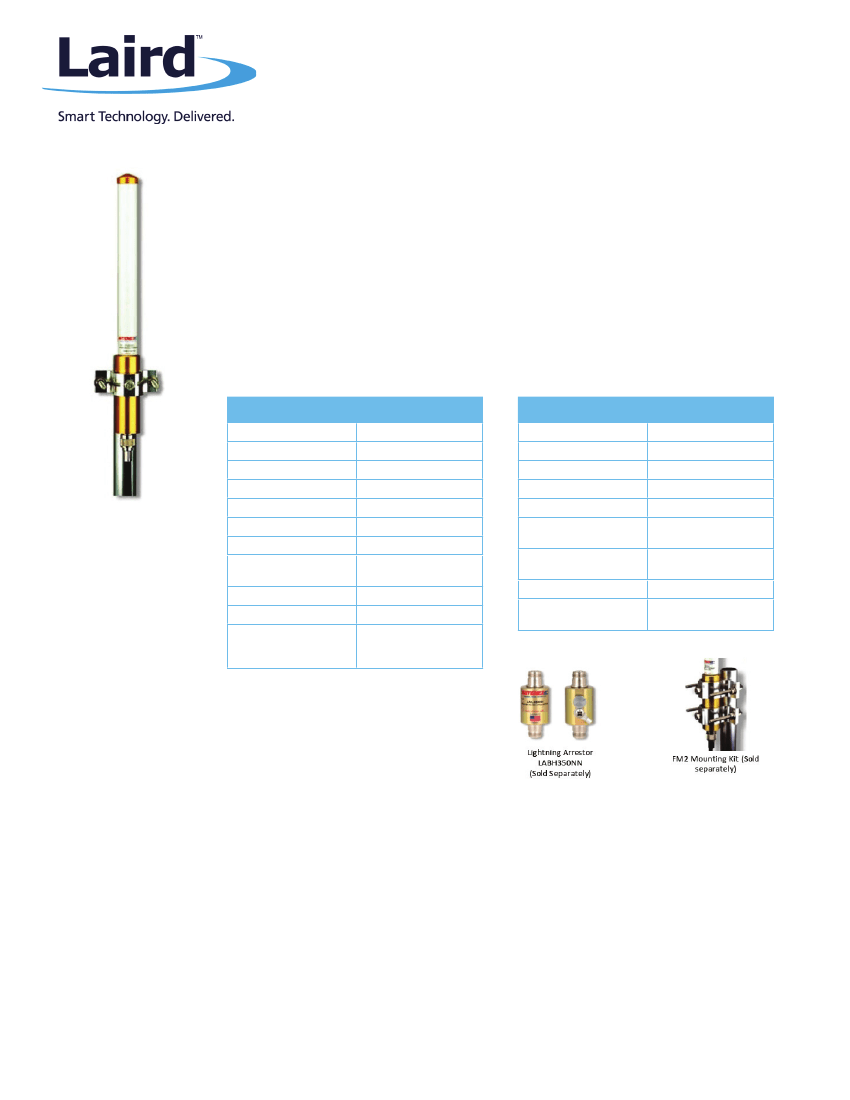

Laird’s fiberglass base station antennas are collinear designs enclosed in a high-density fiberglass which is
covered with a protective ultraviolet inhibiting coating.
The radiating elements are made from high-efficiency copper and are carefully phased to provide maximum
gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line,
resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provides
the highest gain and best efficiency.
FEATURES
• Highly stable PC board matching section
• Superior quality design
• Highest gain and best matching efficiency
in the industry
• Special UV treated radome / resists sun
damage
• N-female industry standard connector
• 100% tested on a Network Analyzer
ELECTRICAL SPECIFICATIONS
Frequency Range
VSWR
Peak Gain
Maximum Power
Nominal Impedance
Polarization
Pattern
Half-Power Beamwidth
(Elevation° x Azimuth°)
Coaxial Cable Length & Type
Termination
Lightning Protection
824-896 MHz
<2:1
4.5 dBi
100 W
50
Ω
Vertical
Omnidirectional
60 x 360°
None
N-female Connector
Lightning Arrestor
LABH350NN
(Sold Separately)
MECHANICAL SPECIFICATIONS
Height
Diameter
Weight
Operating Temperature
Rated Wind Velocity
Rated Wind Velocity
(with 0.5” radial ice)
Lateral Thrust @ 12mph
Wind Velocity
Wind Resistance
Mounting Information
23-1/8”
1.310”
1.5 lbs
-40°C to +85°C
125 mph (210 kph)
85 mph (137 kph)
57 lbs (26 kg)
0.2161 sq. ft.
FM2 Mounting Kit
(Sold Separately)
Americas: +1.847 839.6925
IAS-AmericasSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia:
IAS-AsiaSales@lairdtech.com
Middle East and Africa: +971566996020
IAS-MEAUSales@lairdtech.com
www.lairdtech.com
Omnidirectional Antenna
824-896 MHz
FG8243

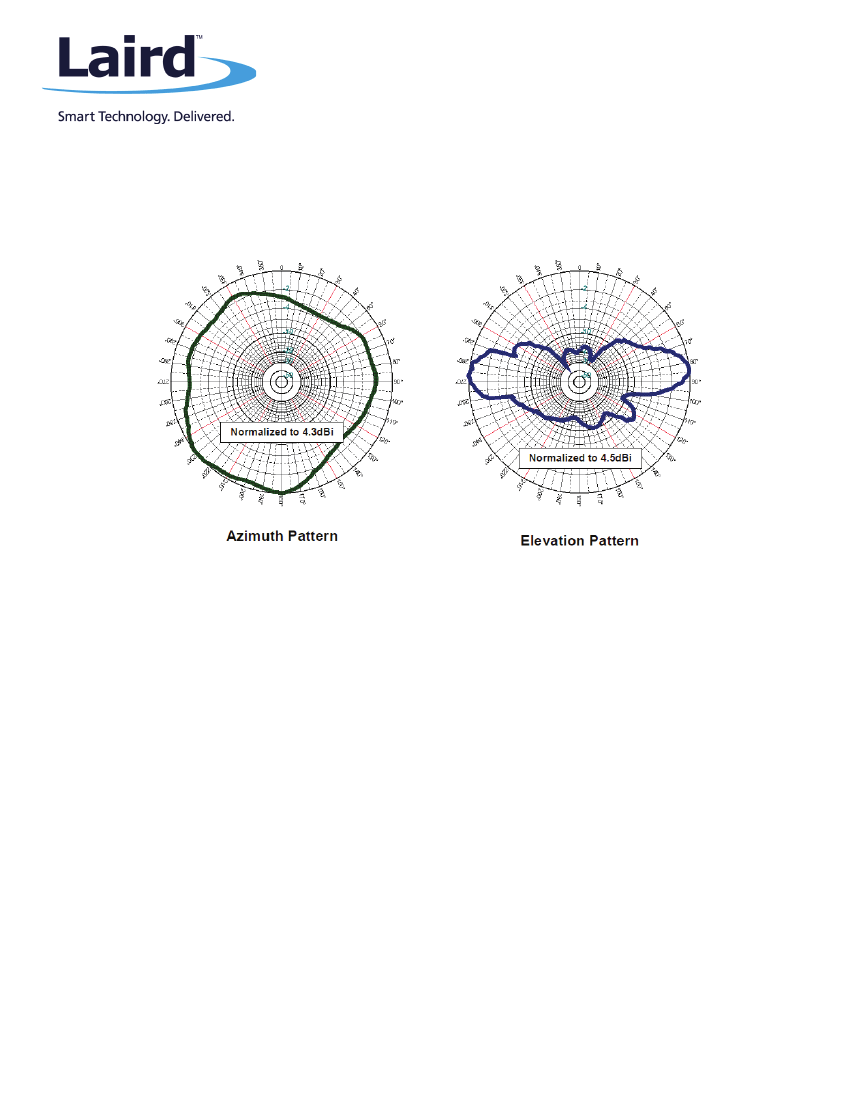

RADIATION PATTERNS
ANT-DS-FG8243 0317
Any information furnished by Laird Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use
and application of Laird materials rests with the end user, since Laird and its agents cannot be aware of all potential uses. Laird makes no warranties as to the fitness,
merchantability or suitability of any Laird materials or products for any specific or general uses. Laird shall not be liable for incidental or consequential damages of any kind. All
Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2017 Laird
Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Logo, and other marks are trade marks or registered trade marks of Laird Inc. or an affiliate company thereof. Other
product or service names may be the property of third parties. Nothing herein provides a license under any Laird or any third party intellectual property rights.
