CBBJR79 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> CBBJR79

CBBJR79: DescriptionCONN TRB JACK R/A PCB; CategoryThe connector; File Size84KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric Compare View All

CBBJR79 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CBBJR79	-	-	View	Buy Now

CBBJR79 Overview

CONN TRB JACK R/A PCB

CBBJR79 Parametric

Parameter Name	Attribute value
Connector style	TRB, biaxial/triaxial
Connector type	Jack, female socket (coaxial)
Contact termination	welding
Protective termination	welding
impedance	non-constant
Installation type	Panel mount, through hole, right angle
Installation features	Bulkhead type - front side nut
cable set	-
Fastening type	latch lock
Frequency - maximum	500MHz
Number of ports	1
characteristic	Three soldering pieces
Shell color	silver
Intrusion protection	-
include	3 pieces - 1 connector, 1 nut, 1 washer
Matrix material	brass
substrate surface	tin
Center contact plating	gold
dielectric materials	Polytetrafluoroethylene (PTFE)
Operating temperature	-65°C ~ 165°C
center contact material	copper beryllium
Rated voltage	400V
Number of patches	500
Insertion loss	-

Preview

Download Datasheet

View All

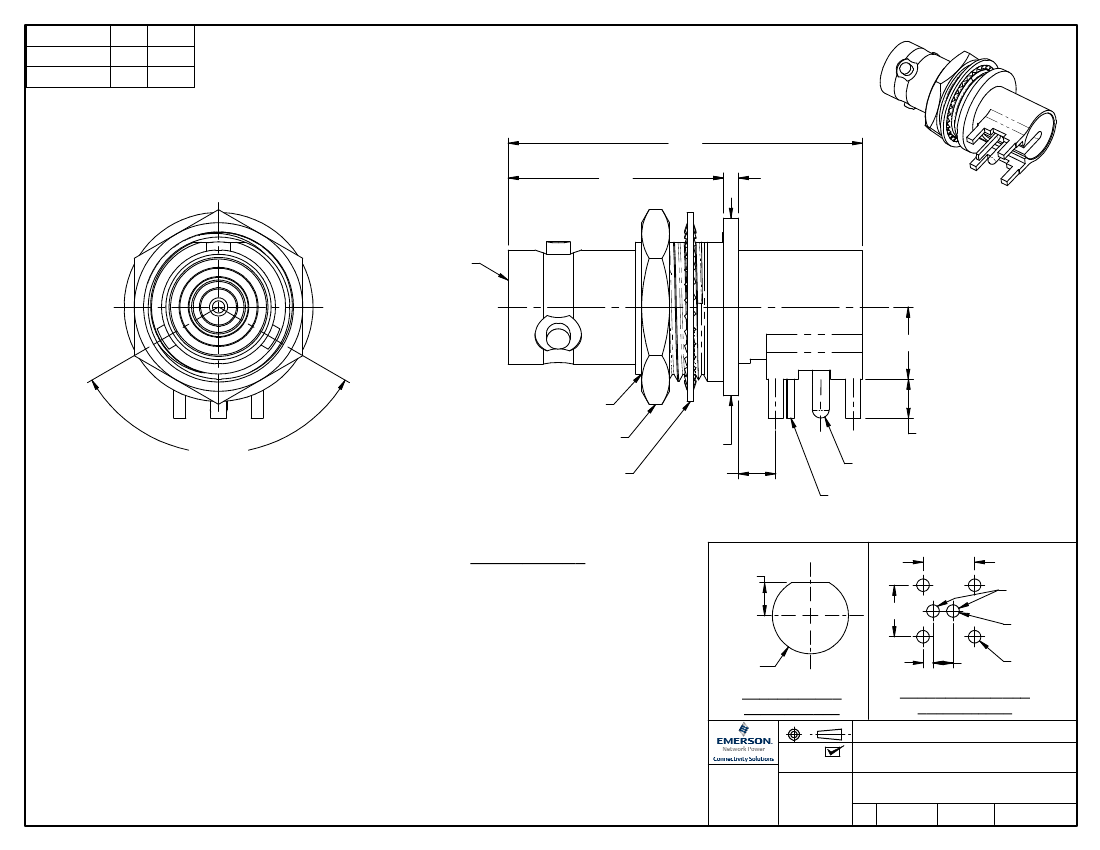

MODEL NO.

CBBJR79

CBBJR79A

"A"

.24

.34

Ø "B"

.063

.070

1.18

.718

.050

TRB INTERFACE

PER MIL-STD-348

FIGURE 201-2

JR79 14949 YY

"A"

1/2-28 UNEF-2A

9/16 HEX NUT

3X 120°

LOCKWASHER

.593

.124

.13

CENTER CONTACT

INTERMEDIATE CONTACT

CBBJR79 SHOWN

NOTES: UNLESS OTHERWISE SPECIFIED

1. MATERIALS AND FINISH:

1.1 BODY: TIN PLATED BRASS

1.2 OUTER INSULATOR: PTFE (TEFLON)

1.3 INTERMEDIATE CONTACT: GOLD PLATED BRASS

1.4 DIELECTRIC: PTFE (TEFLON)

1.5 CENTER CONTACT: GOLD PLATED BERYLLIUM COPPER

1.6 MOUNTING HARDWARE: TIN PLATED COPPER ALLOY

2. ELECTRICAL:

2.1 IMPEDANCE: NON-CONSISTANT

2.2 FREQUENCY (MAX): 500 MHz

3. PANEL THICKNESS (MAX): .125

4. PANEL NUT TORQUE (MAX): 35 INCH POUNDS

This PROPRIETARY Document

is property of Emerson Network

Power Connectivity Solutions.

It is confidential in nature,

non-transferable, and issued with

the clear understanding that it is

not traced or copied without

permission and is returnable

upon demand.

.221

.218

.258

.0625

CENTER

CONTACT

.510

.505

RECOMMENDED

PANEL CUTOUT

3RD ANGLE PROJECTION

.050

.100

4X "B"

RECOMMENDED MTG

HOLE PATTERN

TROMPETER

Title:

RoHS2

2011/65/EU

UNLESS OTHERWISE SPECIFIED

UNITS: INCH

TRB RIGHT ANGLE

CIRCUIT BOARD JACK

Model No.

INTERPRET DRAWING IN

ACCORDANCE WITH ASME

Y14.5-2009.

.XX

.02

.XXX

.005

ANGLES

CBBJR79X

Size

DO NOT SCALE

Date:

11/4/2014

DRAWING

Sheet 1 of 1

CBBJR79 Related Products

	CBBJR79	CBBJR79A
Description	CONN TRB JACK R/A PCB	CONN TRB JACK R/A PCB
Connector style	TRB, biaxial/triaxial	TRB, biaxial/triaxial
Connector type	Jack, female socket (coaxial)	Jack, female socket (coaxial)
Contact termination	welding	welding
Protective termination	welding	welding
impedance	non-constant	non-constant
Installation type	Panel mount, through hole, right angle	Panel mount, through hole, right angle
Installation features	Bulkhead type - front side nut	Bulkhead type - front side nut
Fastening type	latch lock	latch lock
Frequency - maximum	500MHz	500MHz
Number of ports	1	1
characteristic	Three soldering pieces	Three soldering pieces
Shell color	silver	silver
include	3 pieces - 1 connector, 1 nut, 1 washer	3 pieces - 1 connector, 1 nut, 1 washer
Matrix material	brass	brass
substrate surface	tin	tin
Center contact plating	gold	gold
dielectric materials	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Operating temperature	-65°C ~ 165°C	-65°C ~ 165°C
center contact material	copper beryllium	copper beryllium
Rated voltage	400V	400V
Number of patches	500	500
