RWS300B5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> RWS300B5

RWS300B5: DescriptionAC/DC CONVERTER 5V 250W; CategoryPower/power management; File Size692KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

RWS300B5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RWS300B5	-	-	View	Buy Now

RWS300B5 Overview

AC/DC CONVERTER 5V 250W

RWS300B5 Parametric

Parameter Name	Attribute value
type	closed
Number of outputs	1
Voltage - input	85 ~ 265 VAC
Voltage - Output 1	5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	50A
Power (W)	300W
application	ITE (Business)
Voltage - Isolation	3kV
efficiency	78%
Operating temperature	-10°C ~ 70°C (with derating)
characteristic	Adjustable output, DC input capability, universal input
Installation type	Base installation
size/dimensions	6.70" long x 4.02" wide x 1.61" high (170.0mm x 102.0mm x 41.0mm)
Minimum load required	-
Approval	CE

Preview

Download Datasheet

View All

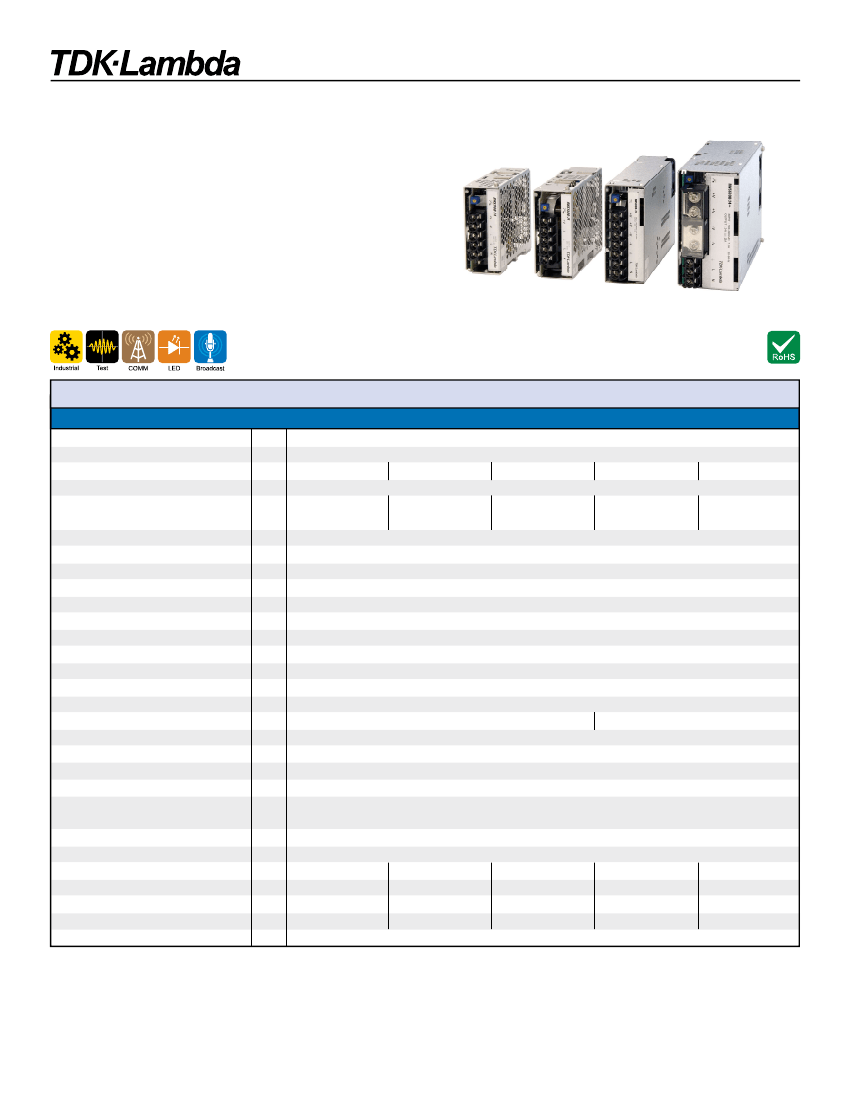

RWS-B Series

50-600W Single Output General Purpose Power Supplies

Features



Low Cost

Wide Range AC Input 85 - 265VAC (300VAC for 5s)

UL508 Certiﬁcation on Select Models

Enclosed Construction

Compact Size

7 Year Warranty

Key Market Segments & Applications

Speciﬁcations

Model

AC Input Voltage range (1)

DC Input Voltage range

Inrush Current (100 / 200VAC)

Power Factor (100 / 200VAC)

RWS100B

RWS150B

RWS300B

RWS600B

VAC

85 - 265VAC (47 - 63Hz), 300VAC for 5 seconds

VDC

120 - 370VDC (330VDC for RWS600B)*

18 / 36

15 / 30

16 / 32

17 / 34

20 / 40

Meets EN61000-3-2 (0.95 / 0.9)

1.2 / 0.6

1.8 / 0.9

3.6 / 1.9

6.6 / 3.6

Input Current (115/230VAC) (Typ)

1.0 / 0.65

(5V: 0.9/0.45)

(5V: 1.3/0.7)

(5V: 3.1/1.6)

(5V: 6.2/3.2)

Temperature Coeﬃcient

<0.02%/°C

Regulation

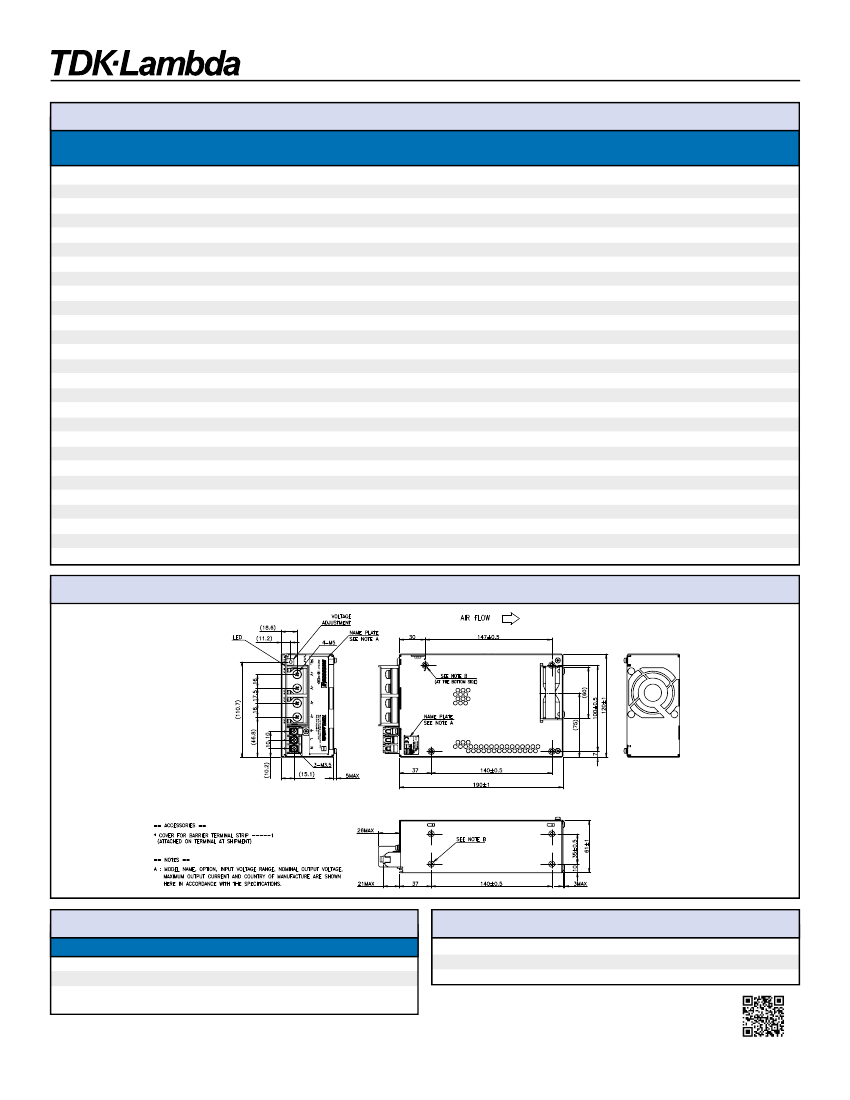

See sheet 2

Overcurrent Protection

>105%, Constant Current Style

Overvoltage Protection

115-140%, Cycle AC line to reset

Hold Up Time (Typ at 100% load) ms

20ms (RWS50B: 15ms at 100VAC input)

Leakage Current (max)

750uA maximum, typically 175uA at 115VAC, 63Hz

Remote Sense

Operating Temperature

-20 to +70 C, see note (3) and instruction manual for low temperature derating

Storage Temperature

-30 to +75°C

Operating Humidity (non condensing) %RH

30 - 90%RH

Storage Humidity (non condensing) %RH

10 - 90%RH

Cooling

Convection

Internal Fan

Withstand Voltage

Input to Ground 2kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.

Isolation Resistance

>100M at 25°C & 70%RH, Output to Ground 500VDC

Vibration (non operating)

10 - 55Hz: 19.6m/s

(sweep 1 min) X, Y, Z for 1 hour

Shock

< 196.1 m/s

Safety Agency Approvals (2)

UL / CSA(cUL) / IEC 60950-1 (2nd Ed), UL:508, CSA C22.2 No.107.1-01,

CE Mark (Additionally evaluated to EN 60950-1)

Conducted & Radiated EMI

EN55011 / EN55022-B, FCC Class B, VCCI-B

Immunity

IEC61000-4-2, -3, -4, -5, -6, -8, -11, IEC61000-6-2

Weight (Typ)

230

400

480

900

1600

Size (WxHxD)

82 x 34 x 81.5

94 x 39 x 108

94 x 41 x 128

102 x 41 x 170

120 x 61 x 190

3.23 x 1.34 x 3.2

3.7 x 1.54 x 4.25

3.7 x 1.61 x 5.04

4.02 x 1.61 x 6.7

4.72 x 2.4 x 7.48

MTBF - Telcordia SR-332 issue 3** Hours

4,170,949

1,978,533

2,235,743

2,027,824

2,157,340

Warranty

Yrs

Seven Years

** 24V output model, 25°C ambiient, full load, 230VAC input

RWS50B

*Safety certiﬁed for AC input only

Notes: (1) See instruction manual for derating below 115VAC input

(2) UL508 & CSA C22.2 No.107.1-01 on RWS50B-5, -12, -24, RWS100B-5, -12, -24, RWS150B-5, -12, -24, RWS300B-12, -15, -24, -36 & -48 RWS600B-24 only

(3) RWS50-100B derates linearly above 45

C to 20% load at 70

C, 150B derates above 40

C and 300-600B derates above 50

C to 50% load at 70

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
