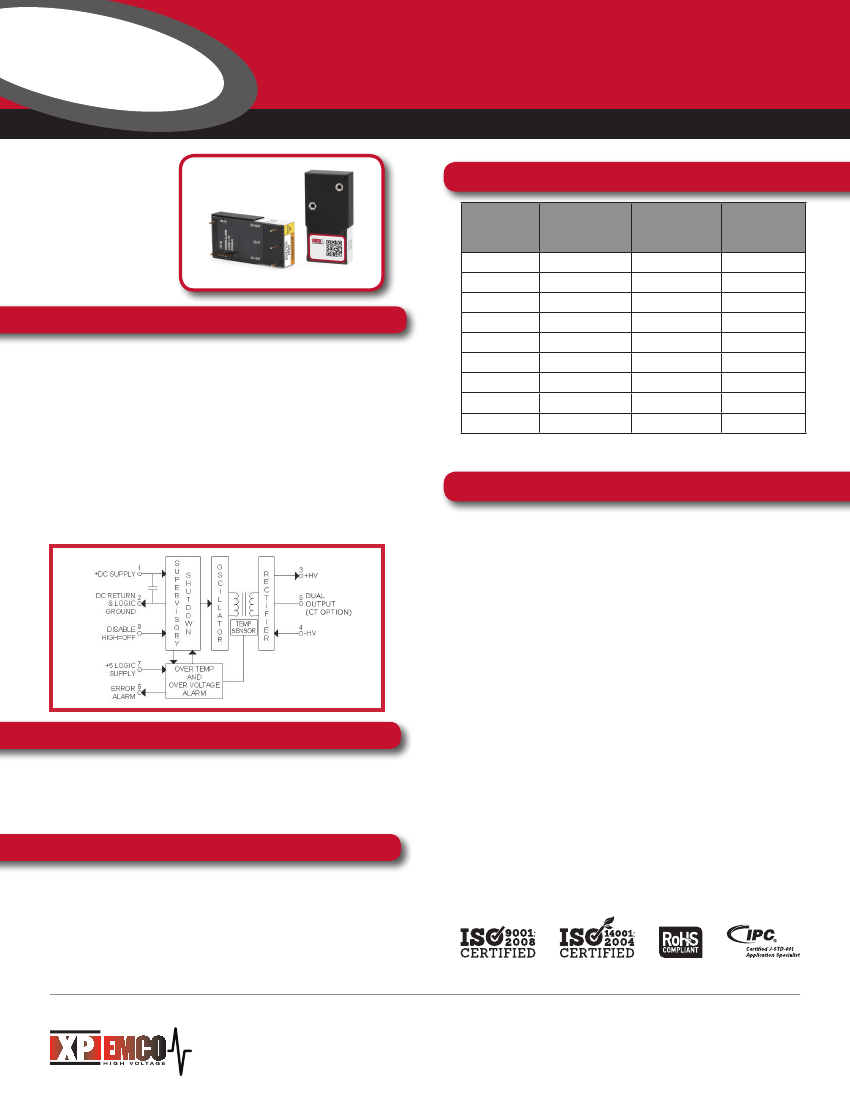

Proven
Reliabilit y
ISOLATED, PROPORTIONAL DC TO HV DC CONVERTERS
200V to 6kV at 10W
PRODUCT SELECTION TABLE
MODEL
FS02
FS03
FS05
FS10
FS20
FS30
FS40
FS50
FS60
FS SERIES
OUTPUT
VOLTAGE*
2
(POSITIVE OR NEGATIVE)
OUTPUT
CURRENT *
1
50mA
33.3mA
20mA
10mA
5mA
3.33mA
2.5mA
2mA
1.67mA
OUTPUT
POWER*
4
0 to 10W
0 to 10W
0 to 10W
0 to 10W
0 to 10W
0 to 10W
0 to 10W
0 to 10W
0 to 10W
0 to 200V
0 to 300V
0 to 500V
0 to 1kV
0 to 2kV
0 to 3kV
0 to 4kV
0 to 5kV
0 to 6kV
PRODUCT DESCRIPTION
The new FS Series of isolated, proportional DC to high voltage DC
converters offers stout design and enhanced features for excellent
long term reliability. Outputs ranging from 200V through 6kV are of-
fered in miniature, cost-effective, PC-mount packages. Based on XP
EMCO’s proven high-reliability, high voltage power conversion topol-
ogy, the FS Series boasts a full ten watts of output power for each
model and features a low 0.7V turn-on voltage. The output voltage
is proportional to the input voltage, from turn on to maximum output
voltage, enabling easy control of the high voltage. XP EMCO’s pro-
prietary, quasi-sinewave, resonant oscillator produces clean, reliable
high voltage with inherently low ripple, low EMI/RFI, low input ripple
current, and low conducted emissions. Additional features such as
arc protection
*8
, short circuit protection, surge current limiting, and
over-temperature protection are available.
Complete List of Models on pages 2 and 3
FEATURES
• Output Proportional and Linear to Input
<0.7V Turn-On Voltage
•
SMART FEATURES
for Enhanced Reliability:
Over-Temperature Protection with Automatic Shutdown and Error Code
Over-Voltage Protection with Automatic Shutdown and Error Code Output
• Disable Pin, TTL Compatible High=Off
• No Minimum Load Current Required
• Low-Noise, Quasi-Sinewave Oscillator
• Inaudible >25kHz Oscillator, Low EMI/RFI
• Low Conducted Emissions and Low Input Ripple Current
• Stable Operating Frequency Over Entire Operating Range
• High Input to Output Galvanic Isolation
• Very Low Input/Output Leakage Current: <100nA
• Very Low Input/Output Coupling Capacitance: <100pF
• Reversible Output Polarity (4kV Modules and Below)
• High Efficiency, No Derating Required
• Robust Design: Conservative Internal High Voltage Clearance and Voltage
Gradient Control for Exceptional Long-Term Reliability
• Arc Protection
*8
and Short Circuit Protection*
5
• Output Surge Current Limited
• High Reliability: MTBF > 840,000 Hours per Belcore TR 332
• Excellent Internal Thermal Management
• Anodized Aluminum Heatsink Surface
• Two Threaded, Blind Inserts Allow for Easy Heatsinking and/or
Chassis Mounting Options
• UL Certified Encapsulant, Meets 94V-0 Flammability
• RoHS Compliant
APPLICATIONS
• Electrophoresis
• Piezo Devices
• Capacitor Charging
• Mass Spectrometry
• Electrostatic Chucks
OPTIONS
• Available in Four Standard Input Voltage Ranges: 0–12, 15, 24, and 28V.
(For Other Input / Output Voltages, Consult Factory)
• Polarity: Choose Negative or Positive Outputs for Models FS50 and FS60
• Dual Output (Center Tap): Available for Models FS02CT through FS40CT
• B Version - Without Enhanced Features. See ‘B’ Drawing.
• Extended Operating Temperature: -55º to +85ºC (Case)(-T Option)*
6
• Extended Environmental Screening and Burn-In Available, Consult Factory
WWW.XPPOWER.COM
4725V03
PAGE 1
FS SERIES
ELECTRICAL SPECIFICATIONS
*3
DUAL
OUTPUT
(CENTER
TAP) MODEL
FS02CT
FS03CT
FS05CT
FS10CT
FS20CT
FS30CT
FS40CT
MODEL
FS02/FS02CT
FS03/FS03CT
FS05/FS05CT
FS10/FS10CT
FS20/FS20CT
FS30/FS30CT
FS40/FS40CT
OUTPUT
CURRENT
50mA
33.3mA
20mA
10mA
5mA
3.33mA
2.5mA
RIPPLE
*4
<6%
<2%
<2%
<1%
<2.5%
<2%
<1.5%
REVERSIBLE
MODEL
FS02
FS03
FS05
FS10
FS20
FS30
FS40
OUTPUT
VOLTAGE
0 to 200 VDC
0 to 300 VDC
0 to 500VDC
0 to 1 kV
0 to 2kV
0 to 3kV
0 to 4kV
OUTPUT
VOLTAGE
0 to +/- 100V
0 to +/- 150V
0 to +/- 250V
0 to +/- 500V
0 to +/- 1kV
0 to +/- 1.5kV
0 to +/- 2kV
MODEL
FS50P/FS50N
FS60P/FS60N
OUTPUT
CURRENT
2mA
1.67mA
RIPPLE
*4
<2.5%
<2.5%
POSITIVE
MODEL
FS50P
FS60P
OUTPUT
VOLTAGE
0 to +5kV
0 to +6kV
NEGATIVE
MODEL
FS50N
FS60N
OUTPUT
VOLTAGE
0 to -5kV
0 to -6kV
INPUT CURRENT
UP to FS40
VIN
NO-LOAD
FULL-LOAD
FS50 & FS60
NO-LOAD
FULL-LOAD
12V
15V
24V
28V
<0.3A
<0.25A
<0.15A
<0.125A
<1.25A
<1.15A
<0.65A
<0.5A
<0.4A
<0.34A
<0.2A
<0.175A
<1.5A
<1.25A
<0.75A
<0.65A
WWW.XPPOWER.COM
4725V03
PAGE 2
FS SERIES
ELECTRICAL SPECIFICATIONS
*3
PARAMETER
TURN-ON VOLTAGE
ISOLATION
OPERATING TEMPERATURE
OPTIONAL EXTENDED OPERATING TEMPERATURE
STORAGE TEMPERATURE
OUTPUT VOLTAGE TOLERANCE
EFFICIENCY
INPUT CAPACITANCE
FREQUENCY
0.7V TYPICAL
< +/- 2,500V BIAS ON PIN 4
-25º to +75ºC (CASE)*
6
-55º to +85ºC (CASE)*
6
-55º to +85ºC
+/-5% FULL LOAD
75% - 85% TYPICAL
188uF (12V AND 15V in)
88uF (24V AND 28V)
25 TO 125kHz
VALUE
DETAILED PRODUCT DESCRIPTION
The new FS Series of isolated, proportional DC to high voltage DC converters
offers stout design and enhanced features for excellent long-term reli-
ability. Outputs ranging from 200V through 6kV are offered in miniature,
cost-effective, PC-mount packages. Based on XP EMCO’s proven high-
reliability, high voltage power conversion topology, the FS Series boasts a
full ten watts of output power for each model and features a low 0.7V turn-on
voltage. The output voltage is proportional to the input voltage, from turn on
to maximum output voltage, enabling easy control of the high voltage. XP
EMCO’s proprietary, quasi-sinewave, resonant oscillator produces clean,
reliable high voltage with inherently low ripple, low EMI/RFI, low input ripple
current, and low conducted emissions. The frequency of the oscillator is
stable throughout the operating range, allowing for easy additional filtering,
and always operates well above the audio frequency range.
This series features sturdy, galvanic input-to-output high voltage isolation,
conservatively rated at +/-2,500V + Vout with less than 100pF of coupling
capacitance and less than 100nA of leakage current. Robustness and high
reliability have been designed into each model by incorporating output
arc surge current limiting and short circuit protection. Careful control over
internal voltage gradients extends the useful life calculated. Mean time
between failure (per Bellcore TR-332) exceeds 840,000 hours.
In addition, the internal transformer temperature and input voltage are
actively monitored with supervisory circuits and fed into a shutdown circuit,
preventing excessive input voltage or over-temperature failures. Should
preset limits be exceeded, the module will automatically shut down and
issue an error signal on pin 6 (TTL high).
When the fault condition is removed, the unit restores itself to normal
operation, ensuring maximum reliability in the field. However, the pin 6
error signal will remain high until reset by power cycling the +5V logic.
The fault monitor circuit is powered by an external 5V to allow for 0.7 to
full input voltage proportional operation of the high voltage converter. The
FS Series also features an enable/disable function. A TTL high signal on
Pin #8 disables the high voltage output.
High power conversion efficiency, coupled with low internal thermal
resistance, creates a vigorous package able to withstand wide operating
temperatures. A unique integrated anodized aluminum heatsink surface
features two threaded blind inserts, which allow for optimal thermal manage-
ment via external heatsink for high temperature operation and/or convenient
chassis mounting configurations. A special proprietary encapsulating formula
optimizes internal dielectric strength that is UL-94V0 compliant while low
thermal resistance minimizes internal component temperature rise, resulting
in a robust module optimized for long-term reliability.
WWW.XPPOWER.COM
4725V03
PAGE 3
FS SERIES

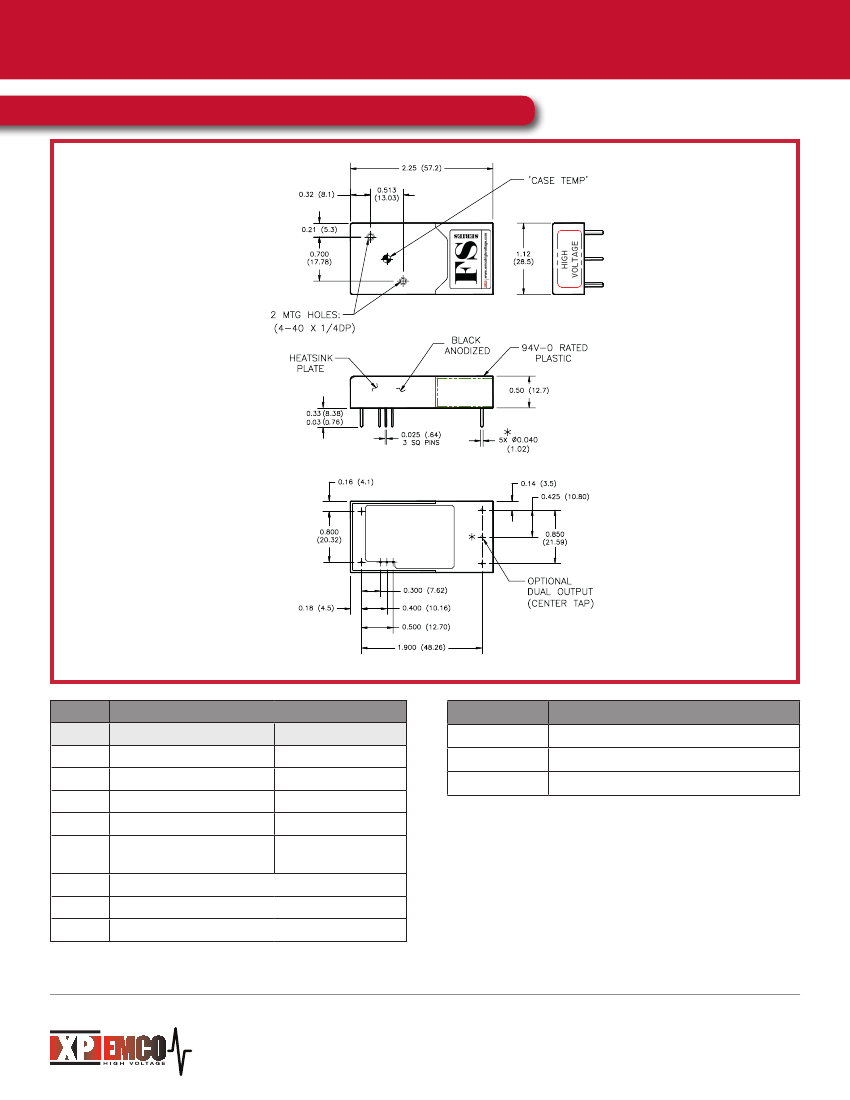

MECHANICAL SPECIFICATIONS – Includes Smart Features
MODEL
±
+IN (1)
ERROR ALARM
LOGIC +5V
DISABLE
( 3 )
+OUT
( 5 )
CT
-IN ( 2 )
( 4 )
-OUT
Dimensions are in inches (metric equivalents are in parentheses)
Dimensional tolerances: .xx +/- 0.02 (0.51mm)
.xxx +/- 0.005 (0.127mm)
PIN #
1
2
3
4
5
6
7
8
FUNCTION
FS02 thru FS40
FS50 and FS60
(+) INPUT
(-) INPUT
(+) OUTPUT
(-) OUTPUT
DUAL OUTPUT (CENTER
TAP) OPTIONAL
ERROR ALARM
LOGIC INPUT: +5V +/-5%
DISABLE: TTL HIGH = OFF
(+) INPUT
(-) INPUT
HV OUTPUT*
HV RETURN
N/A
PARAMETER
WEIGHT
VOLUME
DIMENSIONS
VALUE
<1.6 OUNCES (45 GRAMS)
1.27 CUBIC INCHES (20.8 CUBIC CENTIMETERS)
2.25L (57.15L) x 1.12W (28.50W) x 0.50H (12.70H)
*HV OUTPUT IS POSITIVE OR NEGATIVE DEPENDING ON THE MODEL.
WWW.XPPOWER.COM
4725V03
PAGE 4
FS SERIES

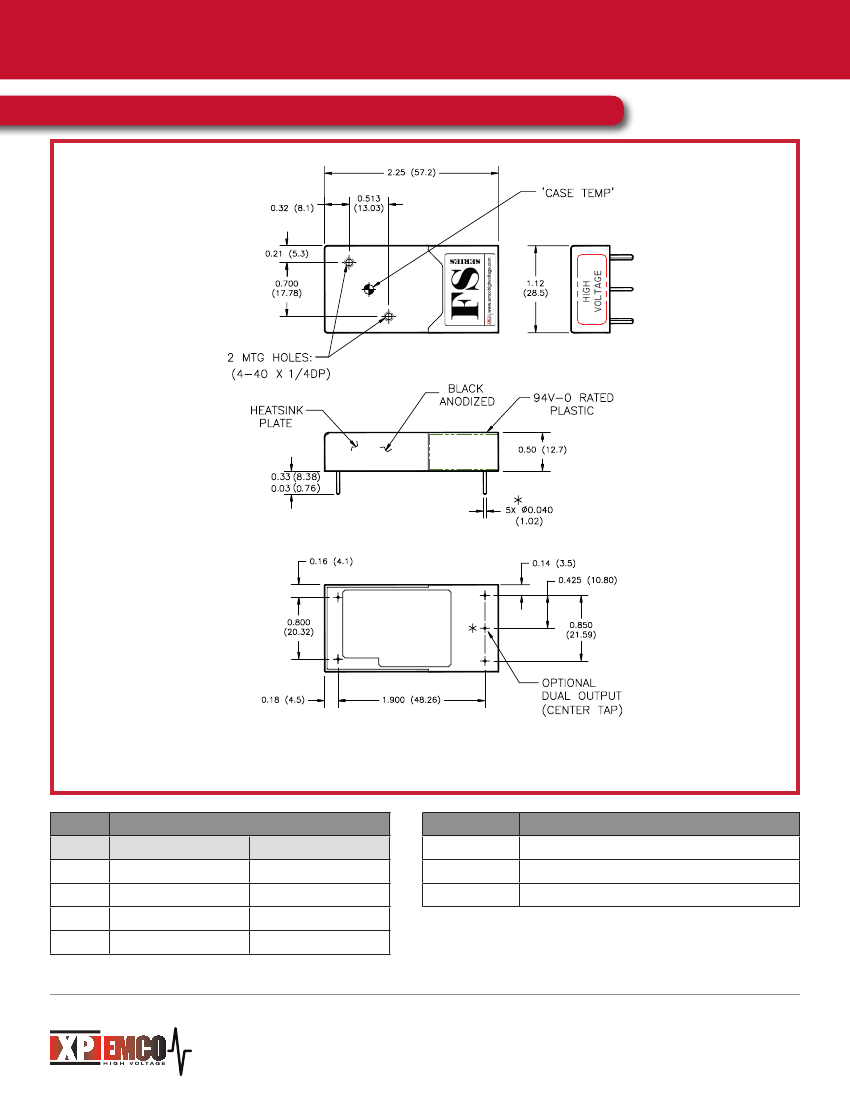

MECHANICAL SPECIFICATIONS – Without Smart Features (B Version)
MODEL
±
+IN (1)
( 3 ) +OUT
( 5 ) CT
-IN ( 2 )
( 4 ) -OUT
Dimensions are in inches (metric equivalents are in parentheses)
Dimensional tolerances: .xx +/- 0.02 (0.51mm)
.xxx +/- 0.005 (0.127mm)
“B” option not offered on Dual Output (Center Tap) units.
Call sales for details.
PIN #
1
2
3
4
FUNCTION
FS02 thru FS40
FS50 and FS60
(+) INPUT
(-) INPUT
(+) INPUT
(-) INPUT
PARAMETER
WEIGHT
VOLUME
DIMENSIONS
VALUE
<1.6 OUNCES (45 GRAMS)
1.27 CUBIC INCHES (20.8 CUBIC CENTIMETERS)
2.25L (57.15L) x 1.12W (28.5W) x 0.50H (12.70H)
(+) OUTPUT
(-) OUTPUT
HV OUTPUT*
HV RETURN
*HV OUTPUT IS POSITIVE OR NEGATIVE DEPENDING ON THE MODEL.
WWW.XPPOWER.COM
4725V03
PAGE 5
