GWS25024 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> GWS25024

GWS25024: DescriptionAC/DC CONVERTER 24V 250W; CategoryPower/power management; File Size866KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

GWS25024 Overview

AC/DC CONVERTER 24V 250W

GWS25024 Parametric

Parameter Name	Attribute value
type	closed
Number of outputs	1
Voltage - input	85 ~ 264 VAC
Voltage - Output 1	24V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	10.5A
Power (W)	250W
application	ITE (Business)
Voltage - Isolation	3kV
efficiency	92%
Operating temperature	-25°C ~ 70°C (with derating)
characteristic	Adjustable output, DC input capability, remote switch, standby output, universal input
Installation type	Base installation
size/dimensions	7.80" long x 4.10" wide x 1.61" high (198.0mm x 104.0mm x 41.0mm)
Minimum load required	-
Approval	CE

Preview

Download Datasheet

View All

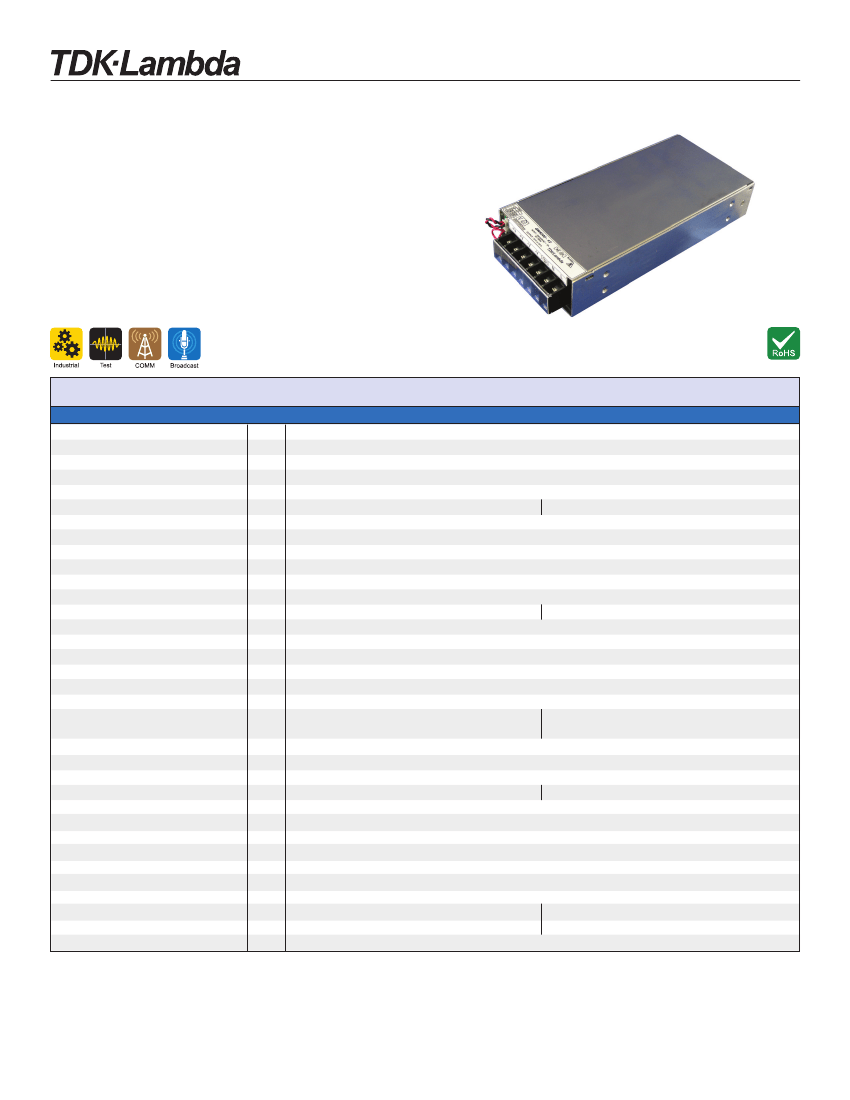

GWS Series

250 & 500W Single Output Power Supplies

Features



High Efﬁciency, up to 93%



1.6” high (For 1U racking)



Wide Range AC Input



250W Convection Cooled



Five year warranty

Key Market Segments & Applications

GWS500 Shown

Speciﬁcations

Model

AC Input Voltage (300VAC for 5s) VAC

Input Frequency

DC Input Voltage

VDC

Inrush Current (cold start)

Power Factor

(1)

Input Current (115/230VAC)

Temperature Coefﬁcient

°C

Overcurrent Protection

Overvoltage Protection

(2)

Overtemperature Protection (2)

Hold Up Time (115 / 230V input) ms

Leakage Current (230VAC 60Hz) mA

Remote Sense

Remote On/Off

Standby Input Power Draw

5V Standby (always on)

DC Good

LED Indicator

Output Remote Programming

Operating Temperature

°C

Storage Temperature

Operating Humidity

Storage Humidity

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Immunity

Safety Agency Approvals

Conducted & Radiated EMI

Weight (Typ)

Size (LxWxH

Warranty

°C

yrs

GWS500

85 - 264VAC

47 - 63Hz

120 - 373VDC*

20A at 115VAC, 40A at 230VAC

Meets EN61000-3-2 (Typical PF 0.98/0.95)

3.0 / 1.4

5.5 / 2.7

<0.02%/°C (0 - 50°C)

>105% of nominal or >101% of peak. 12V hiccup style, 24V-48V Constant current style

12V: 13.8 - 16.2V24V: 30.3 - 35.5V, 36V: 41.4 - 48.6V, 48V: 60 -69.6V

Yes

16ms

<0.75mA

Yes

Active Low

<0.5W

5V 0.3A

DC Good, open collector signal, High on Fail

Green LED = On

See installation manual for details

-25 to +70°C. Derate linearly to

-25

(3)

to +70°C. Derate linearly to

50% load from +50 to +70°C

-30 to +85°C

30 - 90% RH (non condensing)

10 - 95% RH (non condensing)

Convection

Internal fan

Input to Ground 1.5kVAC, Input to Output 3kVAC, Output to Ground 500VAC

(4)

for 1 min.

>100M at 25°C & 70%RH, Output to Ground 500VDC

10 - 55Hz: 19.6m/s

constant sweep 1 min X, Y, Z for 1 hour

< 196.1 m/s

(20G)

IEC61000-4-2 (lv 2, 3), -3 (lv3), -4 (lv 3), -5 (lv 3), -6 (lv 3), -8 (lv 4), -11

UL60950-1, CSA C22.2 No 60950-1-07 (cUL), EN60950-1 2nd Edition, IEC60950-1, CE Mark

EN55022-B, FCC-B

850

1020

7.8 x 4.1 x 1.61”

8.6 x 4.1 x 1.61”

Five Years

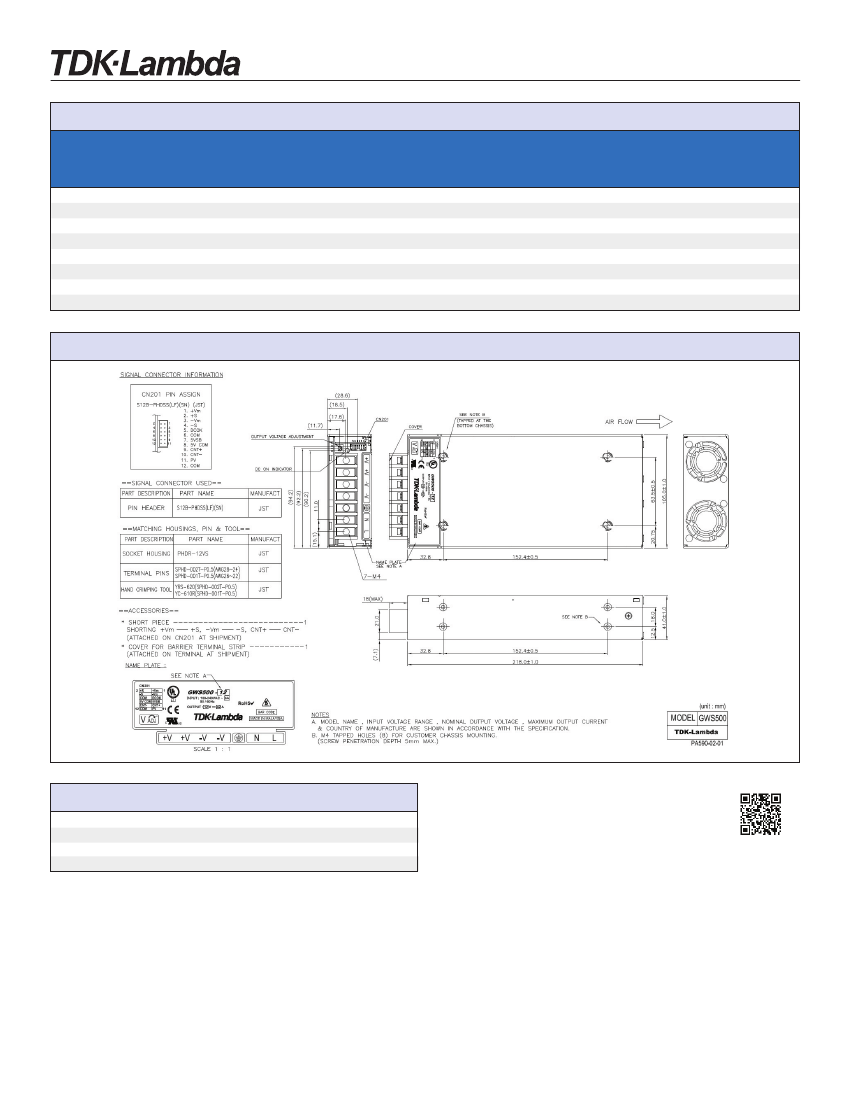

GWS250

(1) 115 / 230VAC input

(2) Recycle AC, or use remote on/off to reset

(3) Guaranteed start up at -40°C

(4) 500VDC for GWS500

*Safety certiﬁed for AC input only

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
