Four & Seven Port
Industrial USB Hubs
UHR204 & UHR304, UHR207 & UHR307
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
•
4 kV Isolation (UHR304, UHR307)
High Retention USB Port Connectors
Rugged Metal Case
Wide Operating Temperature (-40 to 80°C)
USB 2.0 – Refer to Specification Table
Heavy Industrial EMC Specifications
Models UHR204, UHR304, UHR207 and UHR307 are industrial-grade four and
seven-port USB hubs. Models UHR304 and UHR307 include 4 kV isolation.
These hubs are designed and tested to meet heavy industrial EMC specifications
allowing operation where standard office-grade hubs fail – such as near variable
frequency drives, motor control centers, welding and other large electrical loads.
High retention USB connectors hold standard USB cables tight and are perfect
for high vibration applications – requiring up to 3.2 lbs-force to disconnect them.
4 kV isolation (UHR304, UHR307) between the upstream and downstream USB
ports protects expensive equipment from dangerous ground loops and helps
ensure data integrity.
These USB hubs are powered from an external 10 to 30 VDC source. Two power
connectors are provided – terminal block or threaded/lockable barrel plug. (Refer
to ordering information for power supply recommendation.) Each downstream
port provides up to 500 mA of power to connected USB devices.
ORDERING INFORMATION
MODEL NUMBER
UHR204
UHR304
UHR207
UHR307
4
4
7
7
DOWNSTREAM PORTS
UPSTREAM PORTS
1
1
1
1
ISOLATION?
-
4kV
-
4kV
PS12VLB-INT-MED
- Power Supply 12VDC, Medical Grade - US, EU, UK Blades
MDR-20-24
- DIN Rail Mount Power Supply 24VDC, 1.0A
USBAMBM-3F
- Type A Male to Type B Male, 3 ft. (0.9 m) (Grey)
USBAMBM-6F
- Type A Male to Type B Male, 6 ft. (1.8 m) (Grey)
ACCESSORIES

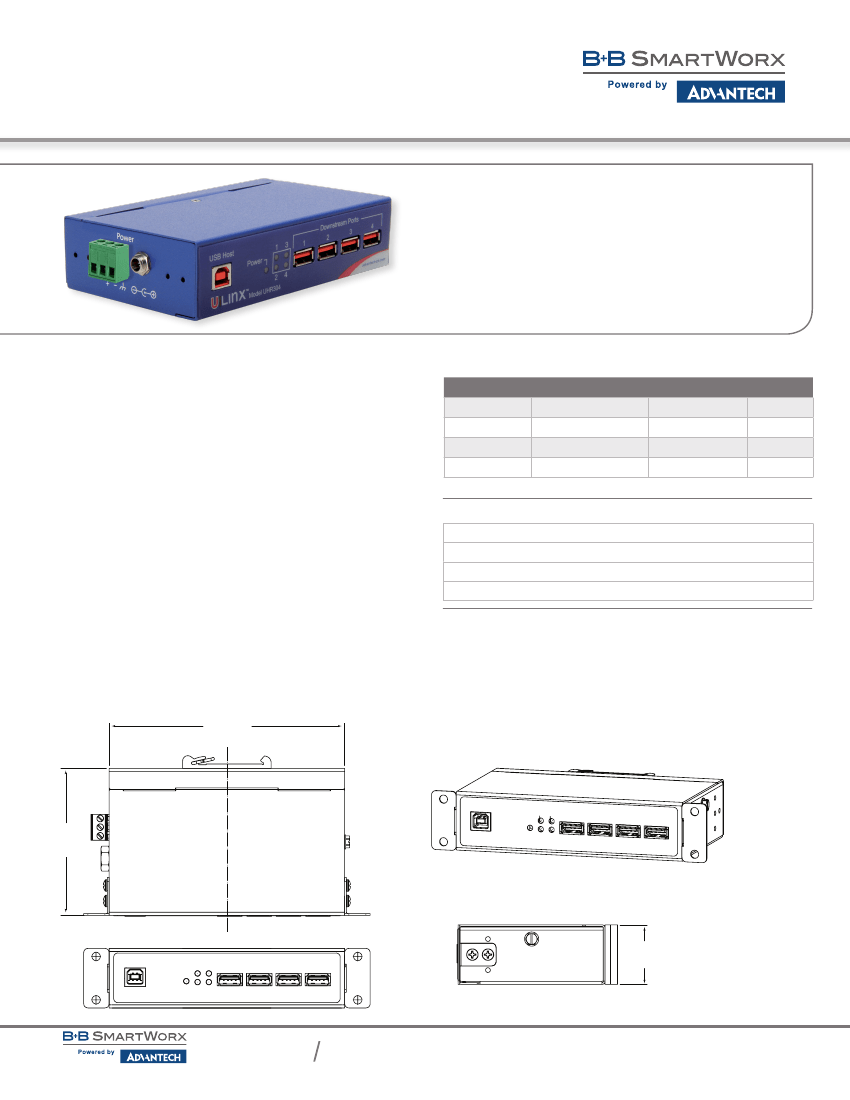

MECHANICAL DIAGRAM - UHR204, UHR304
5.5 in
13.9 cm
5.5 in
13.9 cm
3.49 cm
1.38 in
3.5 in
8.7 cm
3.5 in
8.7 cm
5.5 in
13.9 cm
3.5 in
8.7 cm
1.4 in
3.5 cm
1.4 in
3.5 cm
All product specifications are subject to change without notice.
UHRx04 & UHRc07_1217ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Four & Seven Port
Industrial USB Hubs
UHR204 & UHR304, UHR207 & UHR307
SPECIFICATIONS
USB INTERFACE
Standards
Upstream Port
Downstream Ports
Speed
Isolation
Surge Protection
ESD
High Retention
POWER
Source
Power Connector
Input Voltage
Power
Power TB
Barrel Jack
Downstream Power
INDICATORS
Power
Port Ready
USB 1.1 & 2.0
(1) Type B Female – High Retention
(7) Type A Female – High Retention (UHR207, UHR307)
(4) Type A Female – High Retention (UHR204, UHR307)
12 Mbps (UHR304, UHR307)
480 Mbps (UHR204, UHR207)
Multi-transaction Translator, 1 per port
4 kV – Upstream to Downstream (UHR304, UHR307)
+/- 0.5 kV DC Ports, +/- 1 kV Signal Ports
15 kV Air, 8 kV Contact
USB ports require 15 N (3.2 lbs-force) withdrawal force using
standard USB cable
External - required for UHR304, UHR307, UHR207
Bus Powering - optional for UHR204
Terminal Block or Threaded Barrel Jack
10 to 30 VDC
16 Watts (UHR304, UHR204)
30 Watts (UHR307, UHR207)
3 Position, 5.08 mm Spacing, 28-12 AWG, Solid Wire
Locking / Threaded, 5.5 mm, Center Positive
500 mA per port
Green LED
Green LED
MECHANICAL
Dimensions
Enclosure
Weight
20.3x12.1x3.49 cm (8 x 4.75 x 1.38 in)
IP 30, Metal
1.4 lbs – 0.64 kilograms
UHR304 - 190999 Hours
Meantime Before Failure UHR204 - 211773 Hours
(MTBF)
UHR307 - 143330 Hours
UHR207 - 151173 Hours
MTBF Calc. Method
MIL 217F Parts Count Reliability
ENVIRONMENTAL
-40 to 80 °C
Operating Temperature
0 to 40 °C when using wall plug power supply
Storage Temperature
-40 to 85 °C
Operating Humidity
0 to 95% Non-condensing
APPROVALS/CERTIFICATIONS
FCC Class B, CE
Emissions EN55022 + AC: Information Technology Equipment - Radio Disturbance
Characteristics - Limits & Methods of Measurements
2004/108/EU - Electronomagnetic Compatibility Directive
2011/65/EU - Reduction of Hazardous Substances Directive
EN61000-6-2 (Heavy Industrial)
EN61000-4-2 (ESD) +/- 8kV contact, +/-15 kV air
CE
EN61000-4-3 (RI) 10 V/m, 80-1000 Mhz; 3 V/m 1.3 to 2.7 GHz
EN61000-4-4 (EFT Burst) +/- 2kV DC ports; +/- 1 kV signal ports
EN61000-4-5 (Surge) +/- 2 kV com; +/- 1 kV differential
EN61000-4-6 (CI) 10 Vrms, 0.15 to 80 MHz
EN61000-4-8 (Magnetic) 10 A/m, 50 Hz & 60 Hz
IEC60068-2-27 (Shock)
Other
IEC60068-2-6 (Vibration)
IEC60068-2-32 (Drop)
UL
Class 1 Division 2 Listed File: E245458

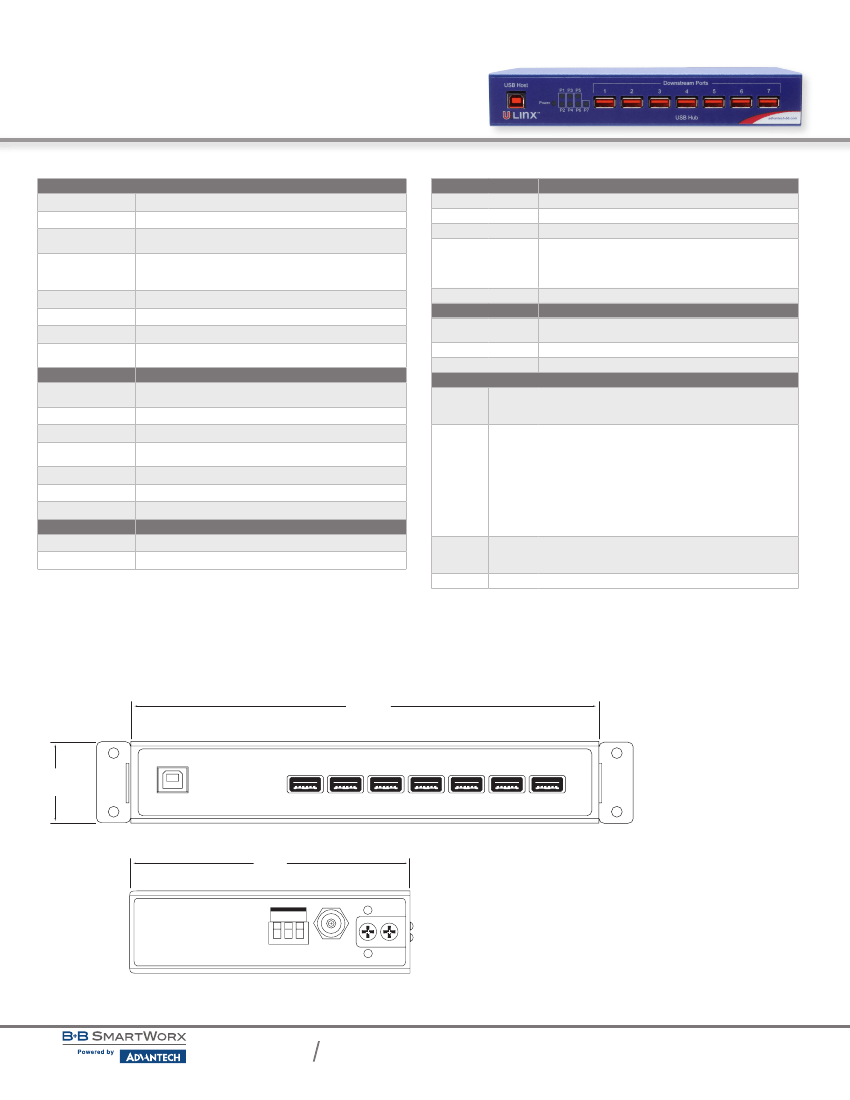

MECHANICAL DIAGRAM - UHR207, UHR307
20.3 cm
8 in
20.3 cm
8 in
m
n
3.49 cm
1.38 in
12.1 cm
4.75 in
12.1 cm
4.75 in
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
