HDBL101G - HDBL107G
Taiwan Semiconductor
CREAT BY ART

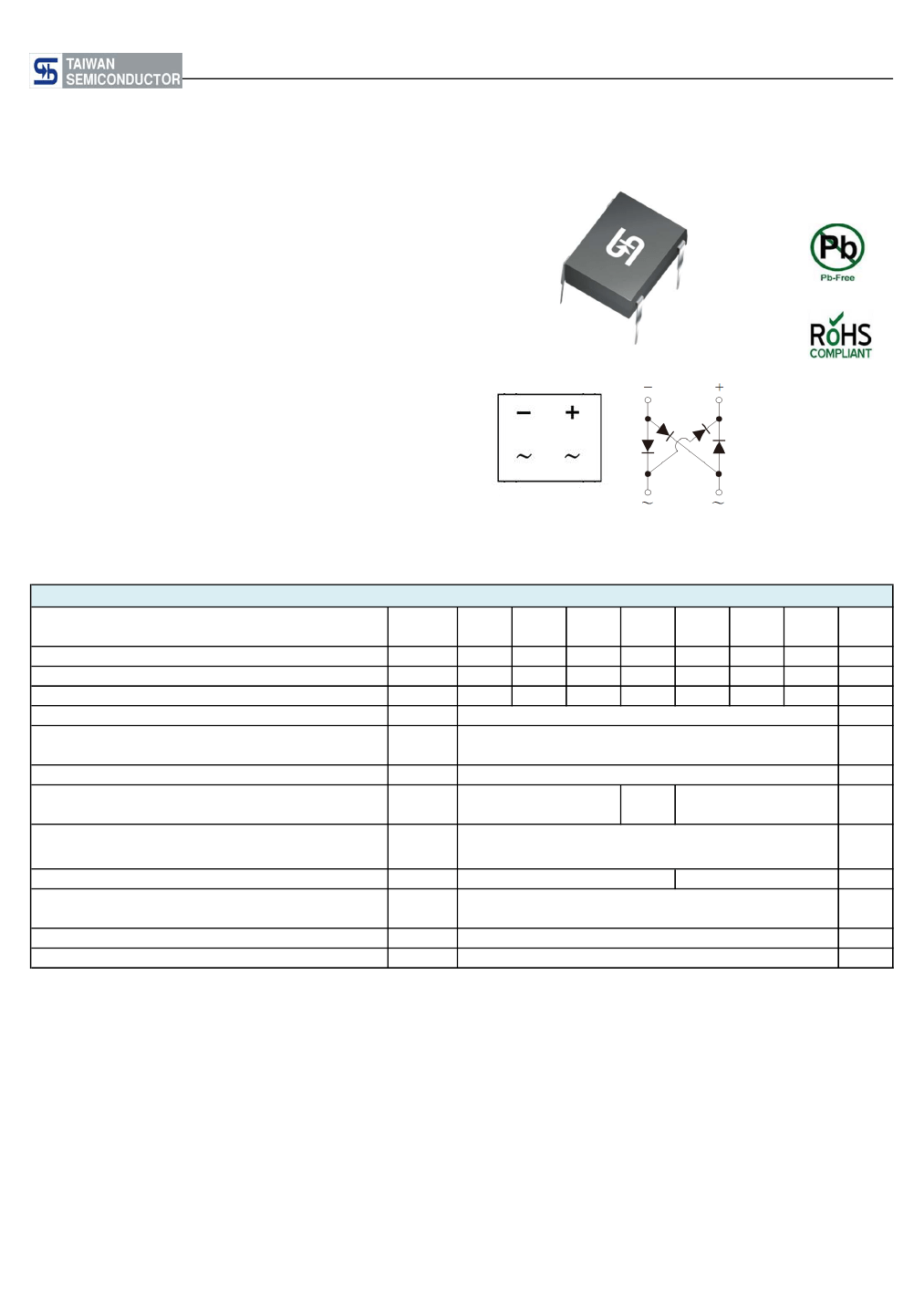

1A, 50V - 1000V Glass Passivated High Efficient Bridge Rectifiers
FEATURES
- Glass passivated junction
- Ideal for printed circuit board
- Reliable low cost construction utilizing molded plastic technique
- High surge current capability
- UL Recognized File # E-326854
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
DBL
MECHANICAL DATA
Case:
Molded plastic body
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Polarity as marked on the body
Weight:
0.36 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage (Note 1)
I
F
= 1 A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300μs,1% Duty Cycle
Notes 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
t
rr
R
θJL
R
θJA
T
J
T
STG
50
15
40
- 55 to + 150
- 55 to + 150
1.0
HDBL
101G
50
35
50
HDBL
102G
100
70
100
HDBL
103G
200
140
200
HDBL
104G
400
280
400
1
50
10.3
1.3
5
500
75
1.7
HDBL
105G
600
420
600
HDBL
106G
800
560
800
HDBL
107G
1000
700
1000
UNIT
V
V
V
A
A
A
2
s
V
μA
ns
°C/W
°C
°C
Document Number: DS_D1311010
Version: F15
HDBL101G - HDBL107G
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
HDBL10xG
(Note 1)
*: Optional available
PACKING CODE
H
PACKING
CODE
C1
PACKING CODE
SUFFIX
G
(*)
PACKAGE
DBL
PACKING
50 / TUBE
Note 1: "x" defines voltage from 50V (HDBL101G) to 1000V (HDBL107G)
EXAMPLE
PREFERRED P/N
HDBL107GHC1G
PART NO.
HDBL107G
PART NO.
SUFFIX
H
PACKING CODE
C1
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

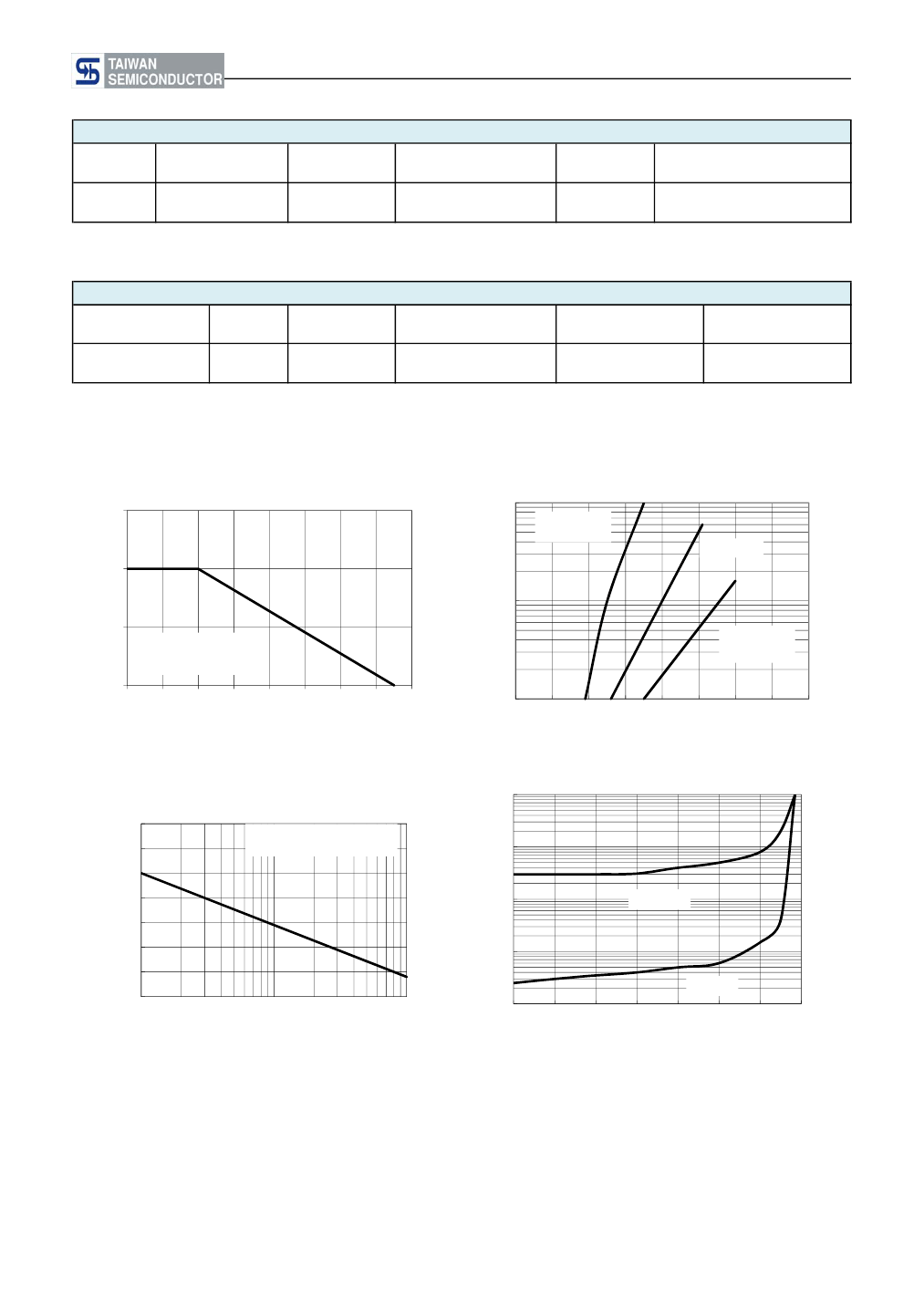

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG. 2 TYPICAL FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT
(A)
10
HDBL101G -
HDBL104G
HDBL105G
FIG.1 FORWARD CURRENT DERATING CURVE
1.5
AVERAGE FORWARD CURRENT .
(A)
1
1
0.5
RESISTIVE OR
INDUCTION LOAD
0
0
20
40
60
80
100
120
(
°
C)
140
160
HDBL106G -
HDBL107G
0.1
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
FORWARD VOLTAGE (V)
AMBIENT TEMPERATURE
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
70
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single Half Sine Wave
INSTANTANEOUS REVERSE CURRENT (μA)
1000
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
100
10
T
J
=125°C
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Document Number: DS_D1311010
Version: F15
HDBL101G - HDBL107G
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
70
60
CAPACITANCE (pF)
A
50
40
30
20
10
0
0.1
1
10
REVERSE VOLTAGE (V)
100
1000
HDBL106G -
HDBL107G
HDBL101G -
HDBL105G
f=1.0MHz
Vsig=50mVp-p

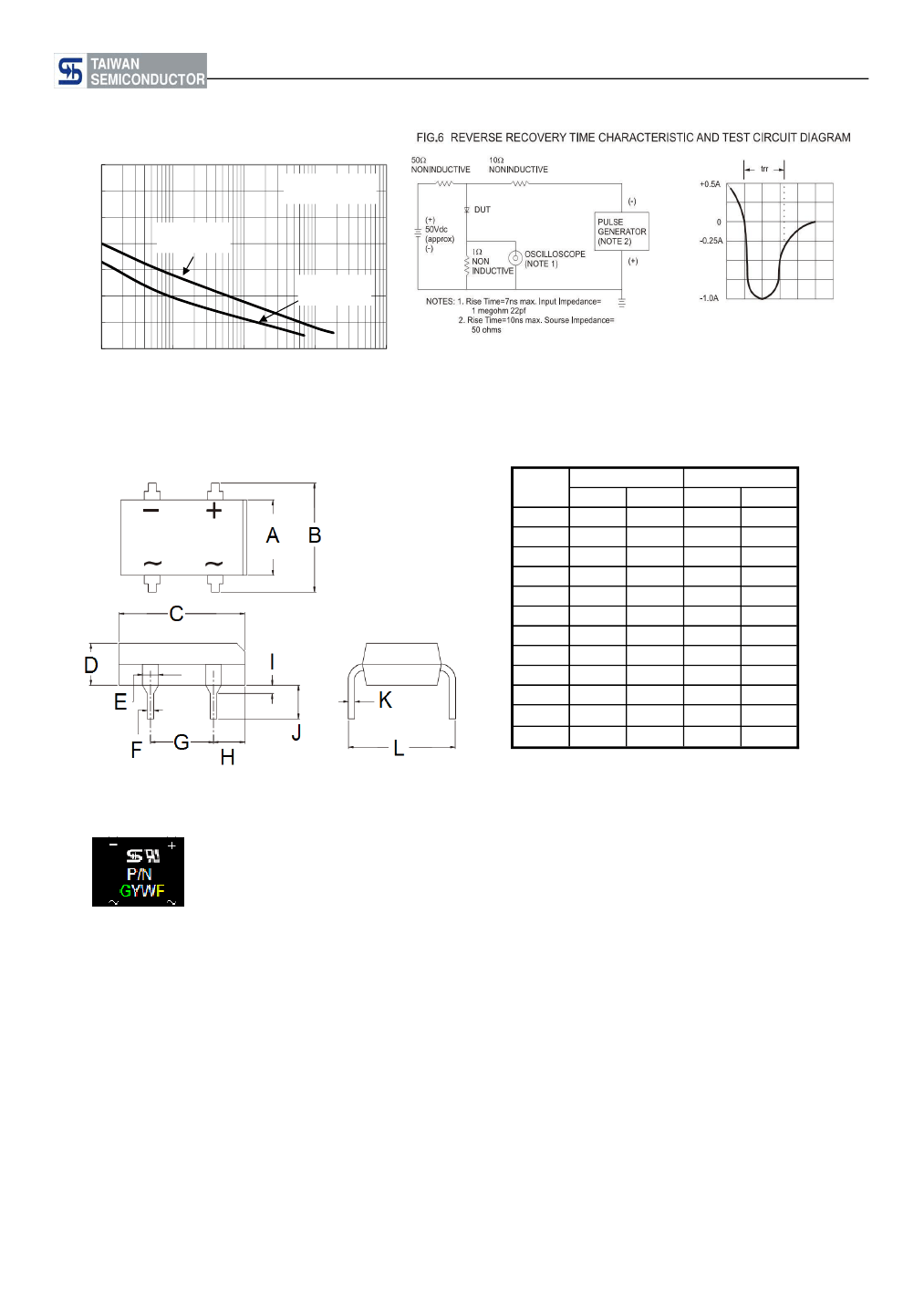

PACKAGE OUTLINE DIMENSIONS
DBL
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
Unit (mm)
Min
6.20
7.24
8.12
2.40
0.89
0.46
5.00
1.39
1.27
3.81
0.22
7.600
Max
6.50
8.00
8.51
2.60
1.14
0.58
5.20
1.90
2.03
4.69
0.33
8.90
Unit (inch)
Min
0.244
0.285
0.320
0.094
0.035
0.018
0.197
0.055
0.050
0.150
0.009
0.299
Max
0.256
0.315
0.335
0.102
0.045
0.023
0.205
0.075
0.080
0.185
0.013
0.350
MARKING DIAGRAM
P/N
G
YW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
